Steering Column Lower Trim Cover Replacement
Steering Column Lower Trim Cover Replacement

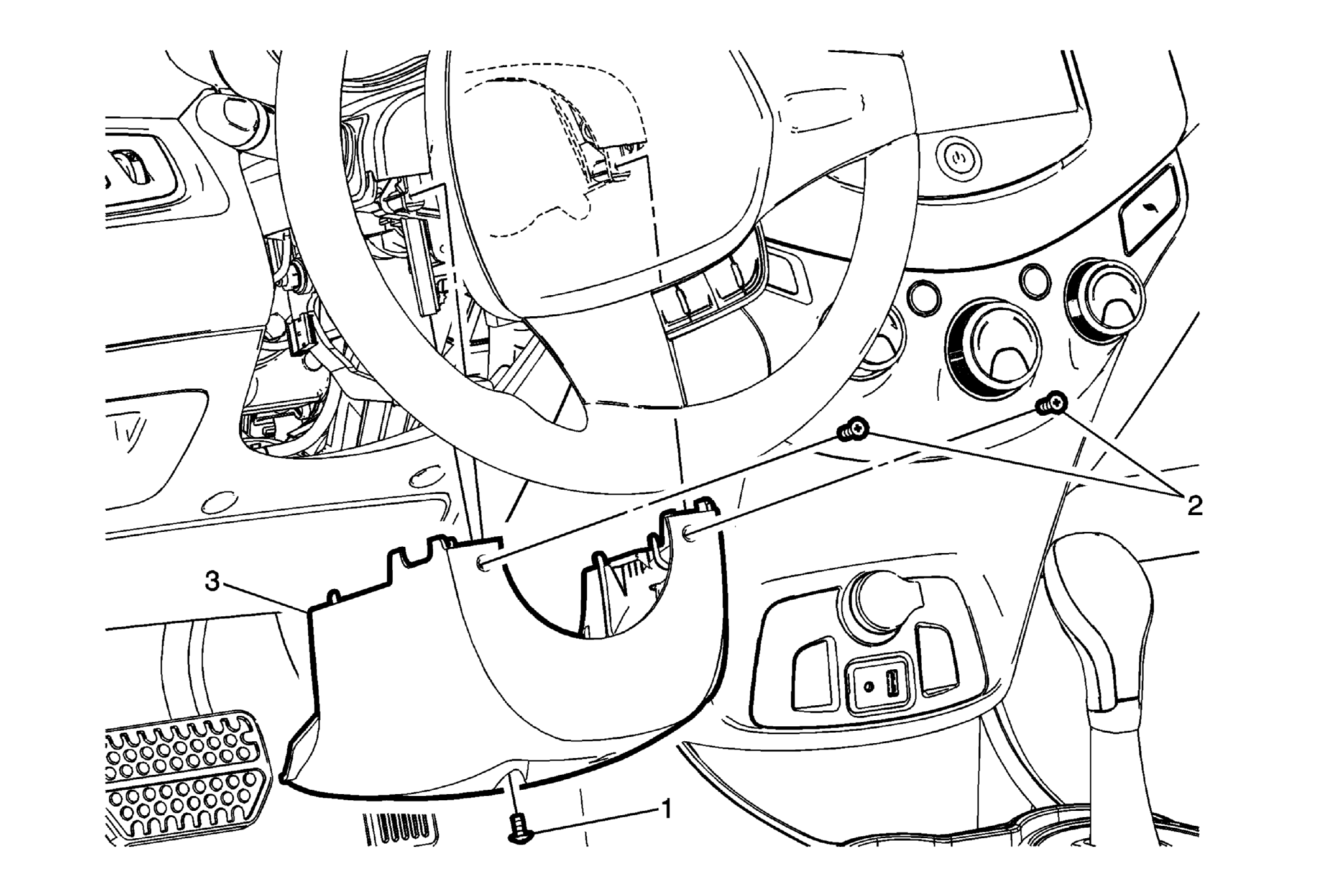

| Callout | Component Name |
|---|---|
| 1 | Steering Column Lower Trim Cover Screw (Qty: 1)
CAUTION:
Refer to Fastener Caution . |
| 2 | Steering Column Upper Trim Cover Screw (Qty: 2) |
| 3 | Steering Column Lower Trim Cover Procedure Turn the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket. |
