Fuel Economy Switch Replacement
Fuel Economy Switch Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the auxiliary heater and air conditioning control. Refer to Auxiliary Heater and Air Conditioning Control Replacement . |
|

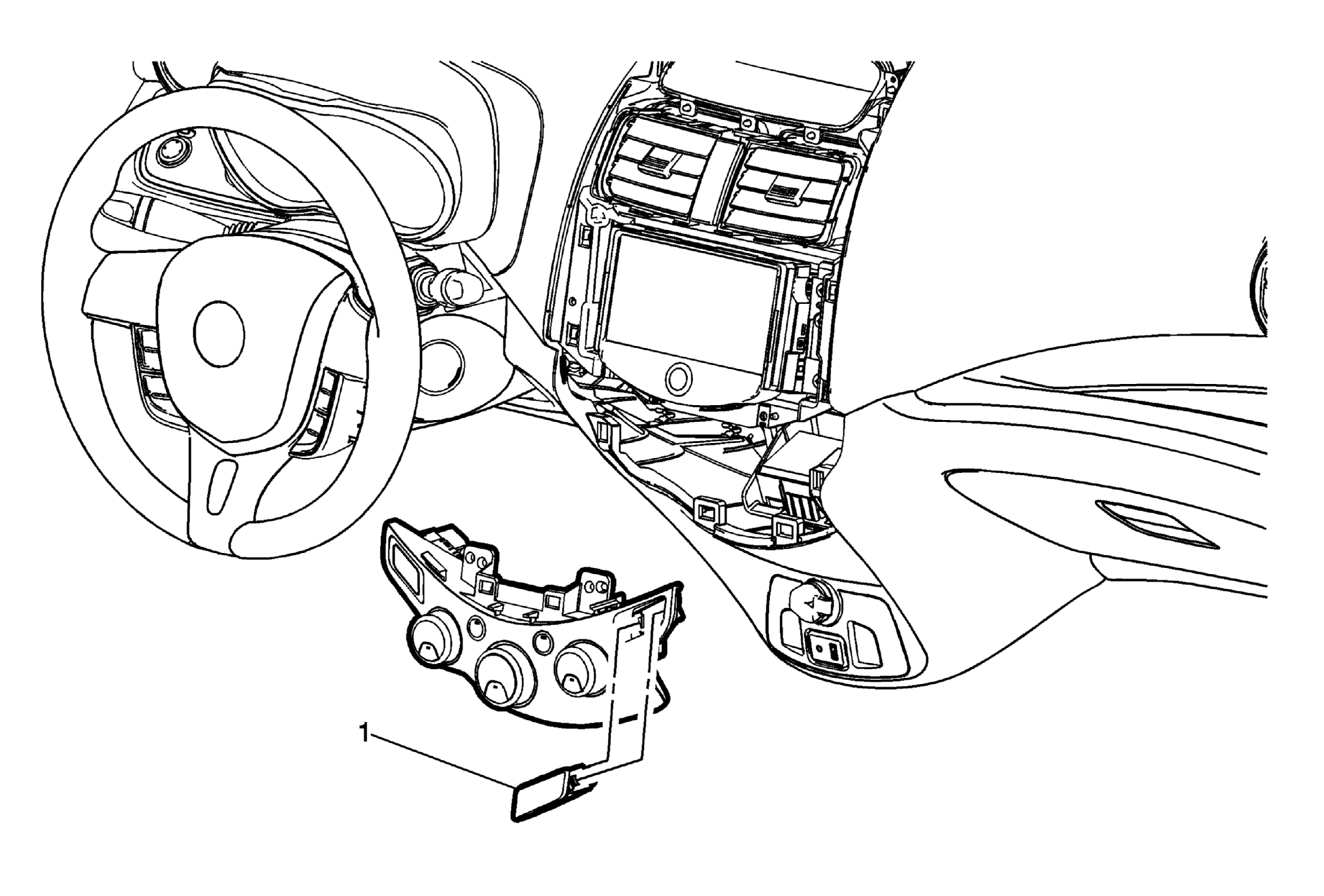

| 1 | Fuel Economy Indicator Switch Procedure Depress tabs on switch to remove from the control. |
