Hood Replacement

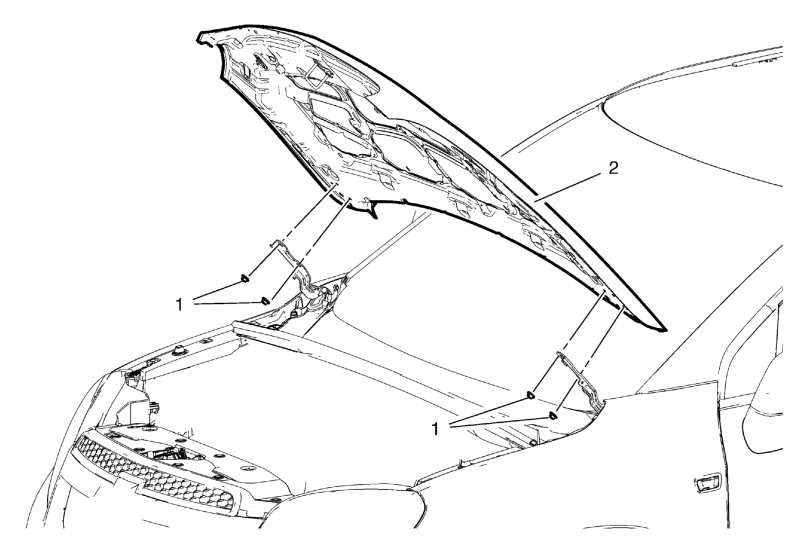

Fig 1: Hood & Nuts

Courtesy of GENERAL MOTORS COMPANY

Hood Replacement

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
1	Hood Hinge Reinforcement Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (17 lb ft)
2	Hood Procedure With the aid of an assistant, remove the hood. Transfer all of the components. Adjust the hood as needed. Refer to Clearance and Flushness Specifications .

Callout

Component Name

WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Hood Hinge Reinforcement Nut (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (17 lb ft)

Hood

Procedure

With the aid of an assistant, remove the hood.
Transfer all of the components.
Adjust the hood as needed. Refer to Clearance and Flushness Specifications .
