Engine Mount Replacement

WARNING: This page is about a different variant/trim than selected.

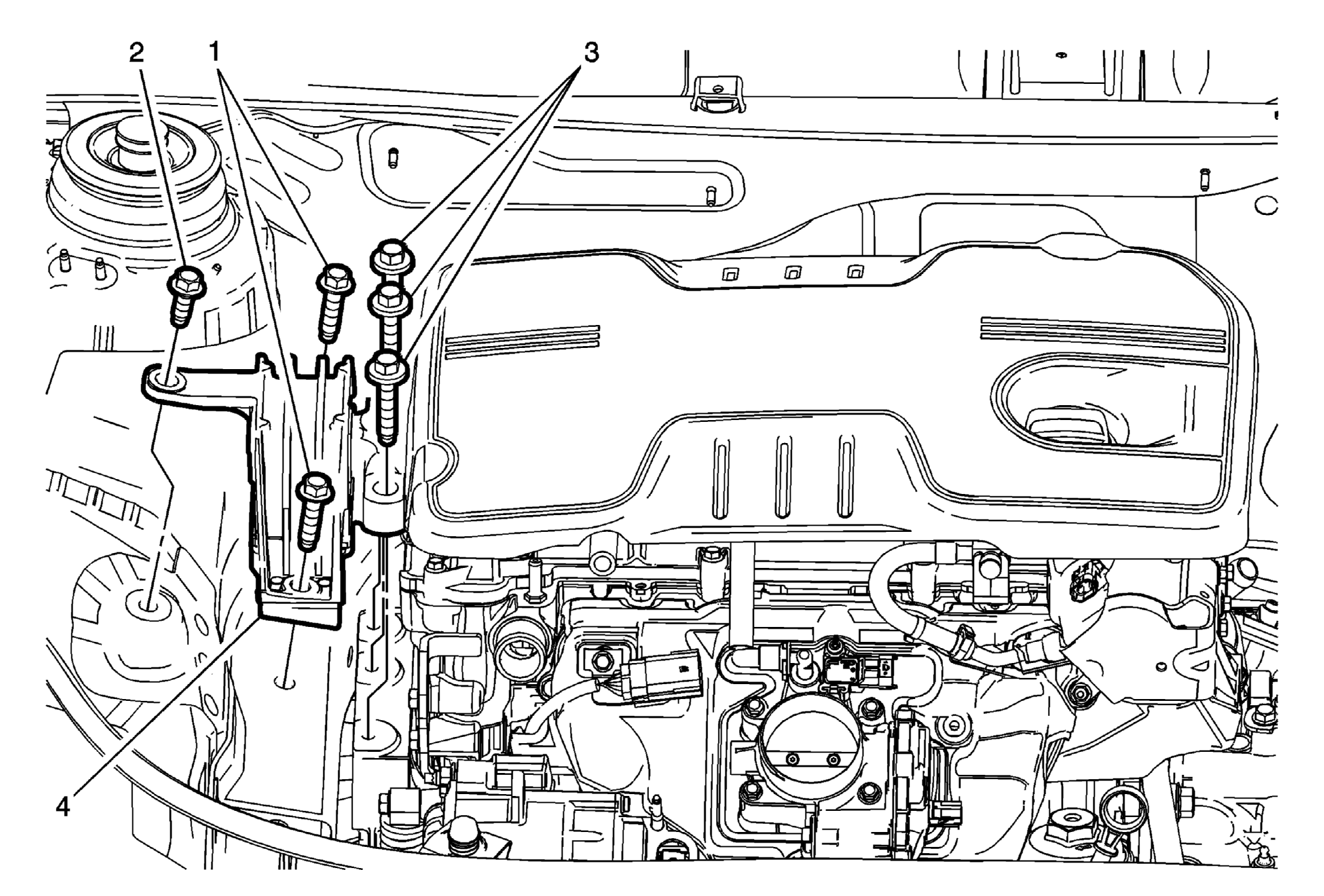

Fig 1: Engine Mount

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Install the engine support fixture. Refer to Engine Support Fixture .
1	Engine Mount Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 62 N.m (46 lb ft)
2	Engine Mount Bolt Tighten 62 N.m (46 lb ft)
3	Engine Mount Bracket Bolt (Qty: 3) TIP: Use only NEW bolts. Tighten 62 N.m(46 lb ft)
4	Engine Mount
