Engine Support Fixture

WARNING: This page is about a different variant/trim than selected.

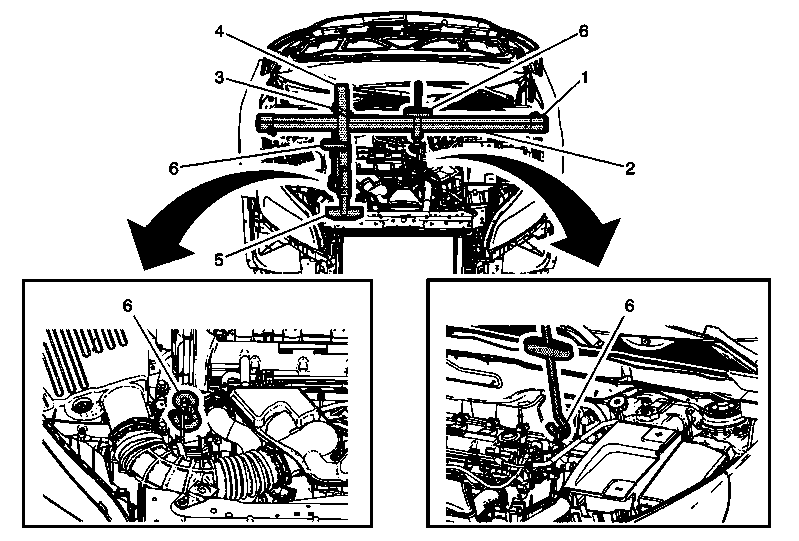

Fig 1: Engine Support Fixture

GM2570354

Courtesy of GENERAL MOTORS COMPANY

Engine Support Fixture

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Special Tools J-43405-1 Engine Support Fixture Adapter Legs J-28467-518 Main Support Beam J-28467-23A Cross Bracket J-28467-2A Strut Tower Support Assembly J-28467-14A Radiator Tube Shelf Assembly J-36857 Engine Lift Bracket. J-28467-8A Hook Assembly For equivalent regional tools. Refer to Special Tools .
1	Engine Support Fixture Adapter Leg (Qty: 2) Procedure Install the bracket to fender frame. Do not install on top of fender lip.
2	Main Support Beam
3	Cross Bracket
4	Strut Tower Support Assembly Procedure Adjust the length of the strut tower support assembly.
5	Radiator Tube Shelf Assembly
6	Hook Assembly (Qty: 2) NOTE: If the engine is not equipped with engine lift bracket, install J-36857 engine lift bracket in place.
