Removal Procedure

  1. Remove the positive crankcase ventilation hose/pipe/tube. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Camshaft Cover to Air Cleaner Resonator to Outlet Duct) , Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LKW) .
    2. Fig 1: Oil Level Indicator
    GM2726749Courtesy of GENERAL MOTORS COMPANY
  2. Remove the oil level indicator (3). Inspect and replace the oil indicator O-ring seals (4), if necessary.
  3. Remove the camshaft cover heat shield (2) and bolts (1).
  4. Remove the ignition coils. Refer to Ignition Coil Replacement .
    5. Fig 2: Vacuum Booster Pipe
    GM2812626Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect vacuum booster pipe (1).
    6. Fig 3: Vacuum Assembly
    GM2812627Courtesy of GENERAL MOTORS COMPANY
  6. Remove the vacuum assembly (1). Refer to Vacuum Pump Replacement .
    7. Fig 4: Camshaft Position Actuator Intake Solenoid Valve
    GM2812629Courtesy of GENERAL MOTORS COMPANY
  7. Remove the camshaft position actuator intake (1) solenoid valve. Refer to Camshaft Position Actuator Intake Solenoid Valve Replacement
  8. Remove the camshaft position actuator exhaust (2) solenoid valve. Refer to Camshaft Position Actuator Exhaust Solenoid Valve Replacement

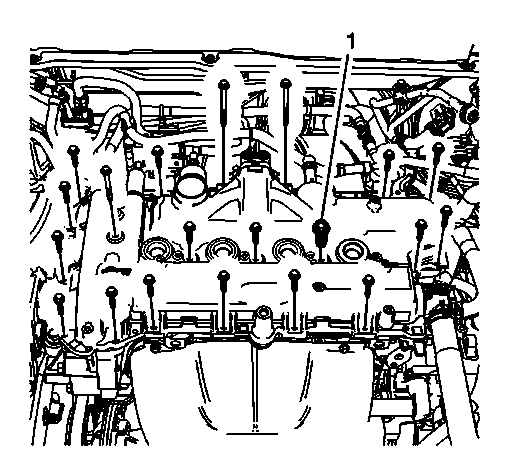

    9. Fig 5: Camshaft Cover Fasteners
    GM2917425Courtesy of GENERAL MOTORS COMPANY
  9. Remove the camshaft cover fasteners (1).
    10. Fig 6: Camshaft Cover And Gasket
    GM2812631Courtesy of GENERAL MOTORS COMPANY
  10. Remove the camshaft cover (1) and gasket (2).
  11. For cleaning and inspection. Refer to Camshaft Cleaning and Inspection (LKW) .
