Secondary Air Injection Check Valve Installation

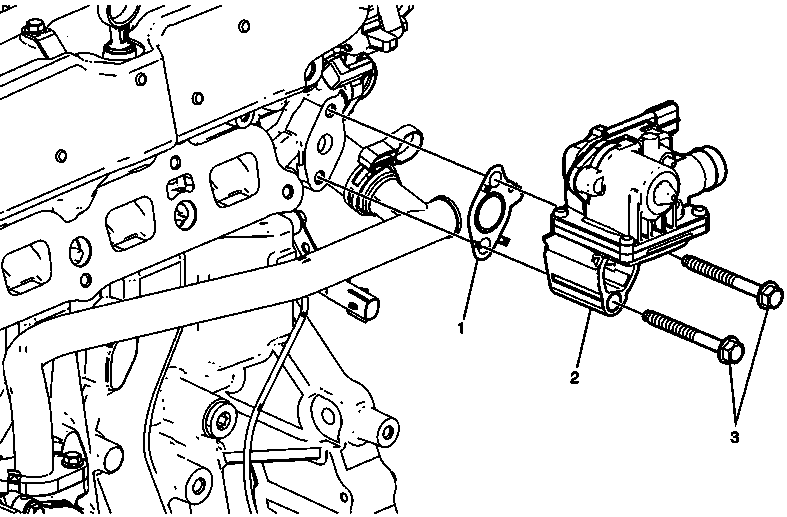

Fig 1: Secondary Air Injection Check Valve
GM2964001Courtesy of GENERAL MOTORS COMPANY
Secondary Air Injection Check Valve Installation

Callout Component Name
1 Secondary Air Injection Check Valve Gasket
2 Secondary Air Injection Check Valve
3 Secondary Air Injection Check Valve Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
25 (18 lb ft)
