Camshaft Cover Removal (LTG)

Fig 1: PCV Hose Bolt

GM2769475

Courtesy of GENERAL MOTORS COMPANY

Remove the PCV hose bolt (2) from the camshaft cover.
Disconnect the PCV tube assembly (1) at the quick-connect fittings.

Fig 2: Engine Coolant Air Bleed Pipe Bolt

GM2769476

Courtesy of GENERAL MOTORS COMPANY

Remove the engine coolant air bleed pipe bolt (1).
Remove the engine coolant air bleed pipe (2), hose (3), and O-ring (4). Inspect O-ring and discard if necessary.

Fig 3: Camshaft Cover Heat Shield

GM2769477

Courtesy of GENERAL MOTORS COMPANY

Remove the oil level indicator (1). Inspect and replace the oil indicator O-ring seals (4), if necessary.
Remove the camshaft cover heat shield (2) and bolts (3).

Fig 4: Rear Lift Bracket And Bolts

GM2726741

Courtesy of GENERAL MOTORS COMPANY

Remove the rear lift bracket (1) and bolts (2).

Fig 5: Front Lift Bracket

GM2726742

Courtesy of GENERAL MOTORS COMPANY

Remove the front lift bracket (2) and bolts (1).

Fig 6: Ignition Coils And Bolts

GM2726743

Courtesy of GENERAL MOTORS COMPANY

Remove the ignition coils (2) and bolts (1).

Fig 7: Camshaft Position Actuator Control Solenoid Valves

GM2726744

Courtesy of GENERAL MOTORS COMPANY

Remove the camshaft position actuator control solenoid valves (2) and bolts (1).

Fig 8: Vacuum Assembly And Bolts

GM2726747

Courtesy of GENERAL MOTORS COMPANY

Remove the vacuum assembly (2) and bolts (1).
Remove the vacuum assembly gasket (3) and discard.

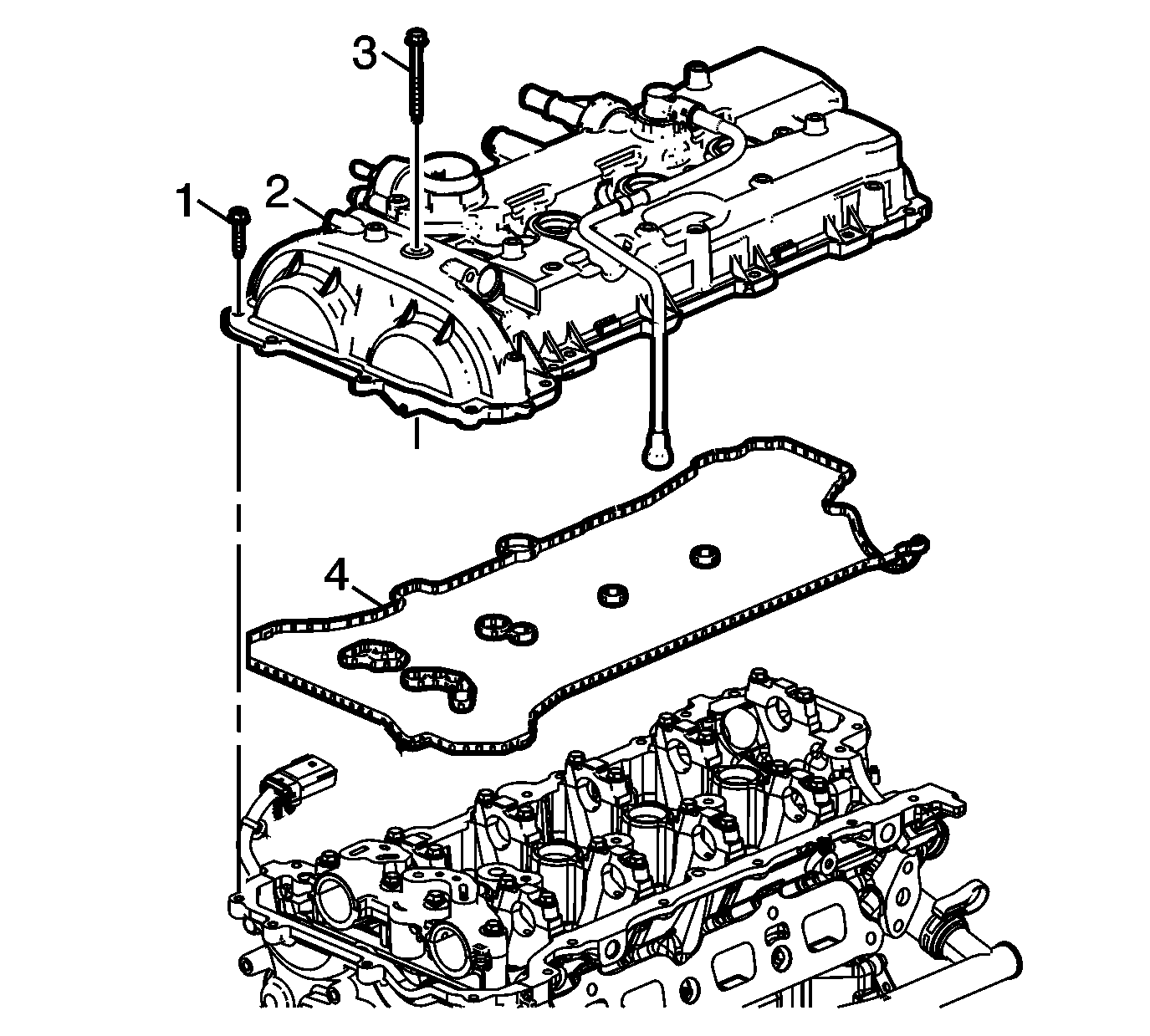

Fig 9: Camshaft Cover Assembly

GM2872022

Courtesy of GENERAL MOTORS COMPANY

Remove the camshaft cover assembly (2).
Remove and discard the camshaft cover gasket (4).
