Engine Harness Routing - Left Rear (LUK)

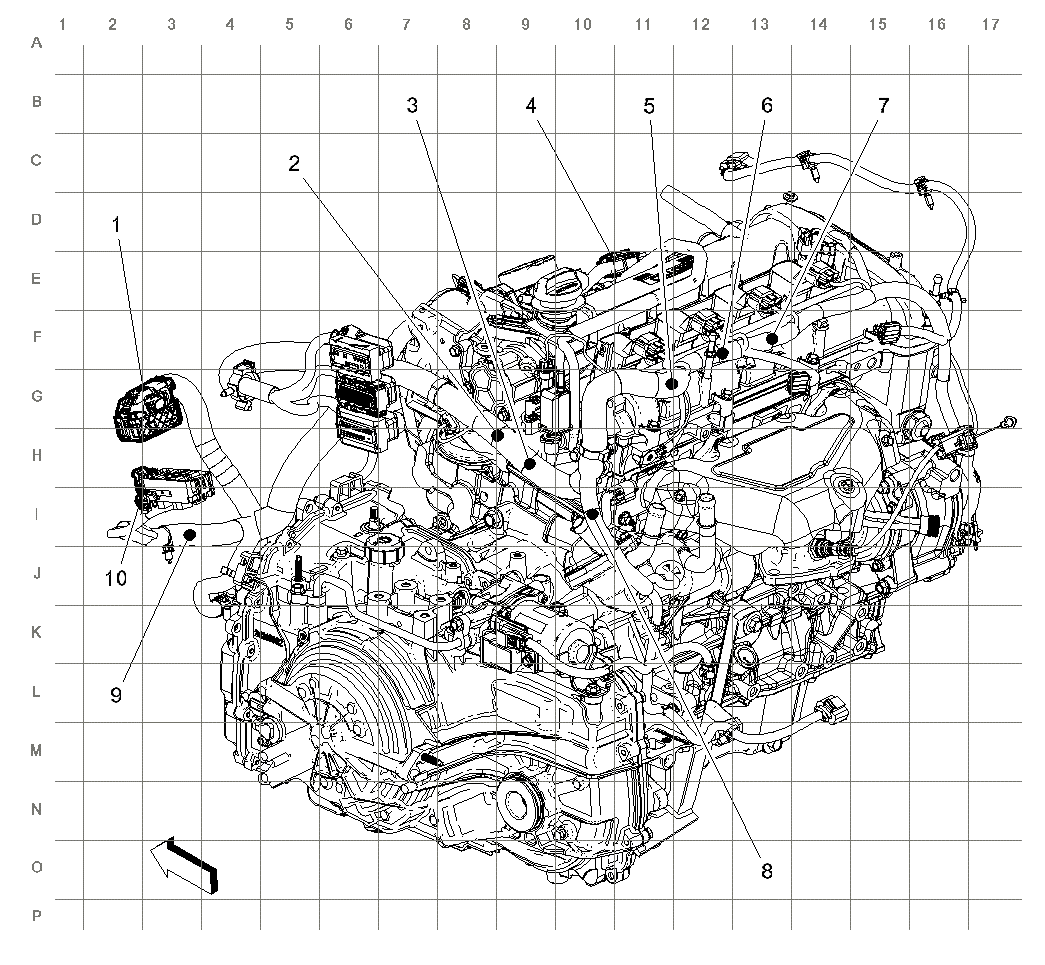

Fig 1: Left Rear of Engine Harness Routing (LUK)

Courtesy of GENERAL MOTORS COMPANY

Items
1:  X115 X115 Engine Harness to Body Harness (LKW)X115 Engine Harness to Body Harness (LTG)X115 Engine Harness to Body Harness (LUK)
2:  J106
3:  J132 (T4A)
4:  X160 X160 Engine Harness to Fuel Rail Harness
5:  J103
6:  J108
7:  J122
8:  J120
9:  J112
10:  X116 X116 Cooling Fan Harness to Forward Lamp Harness
