Engine Harness Routing - Left Rear (LTG)

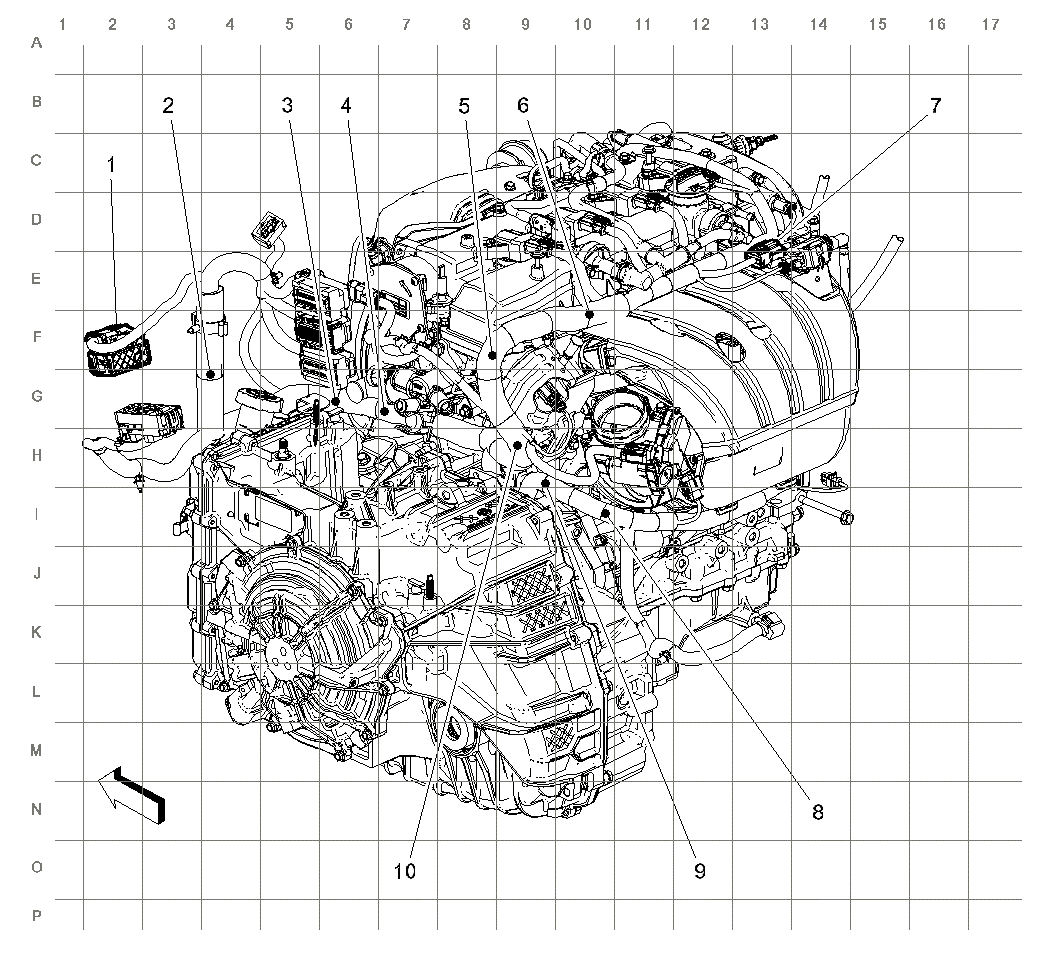

Fig 1: Left Rear of Engine Harness Routing (LTG)
GM2740417Courtesy of GENERAL MOTORS COMPANY
Items
1:  X115 X115 Engine Harness to Body Harness (LKW)X115 Engine Harness to Body Harness (LTG)X115 Engine Harness to Body Harness (LUK)
2:  J112
3:  J121
4:  J108
5:  J103
6:  J122
7:  X160 X160 Engine Harness to Fuel Rail Harness
8:  J106
9:  J120
10:  J108
