Rear Seat Cushion Heater Replacement

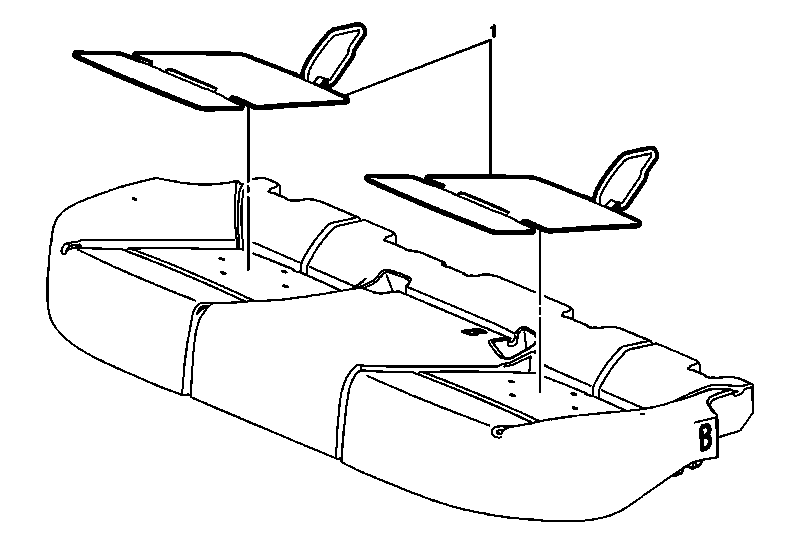

Fig 1: Rear Seat Cushion Heater

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement .
1	Rear Seat Cushion Heater

Callout

Component Name

Preliminary Procedure

Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement .

Rear Seat Cushion Heater
