Driver or Passenger Seat Recliner Lever Replacement

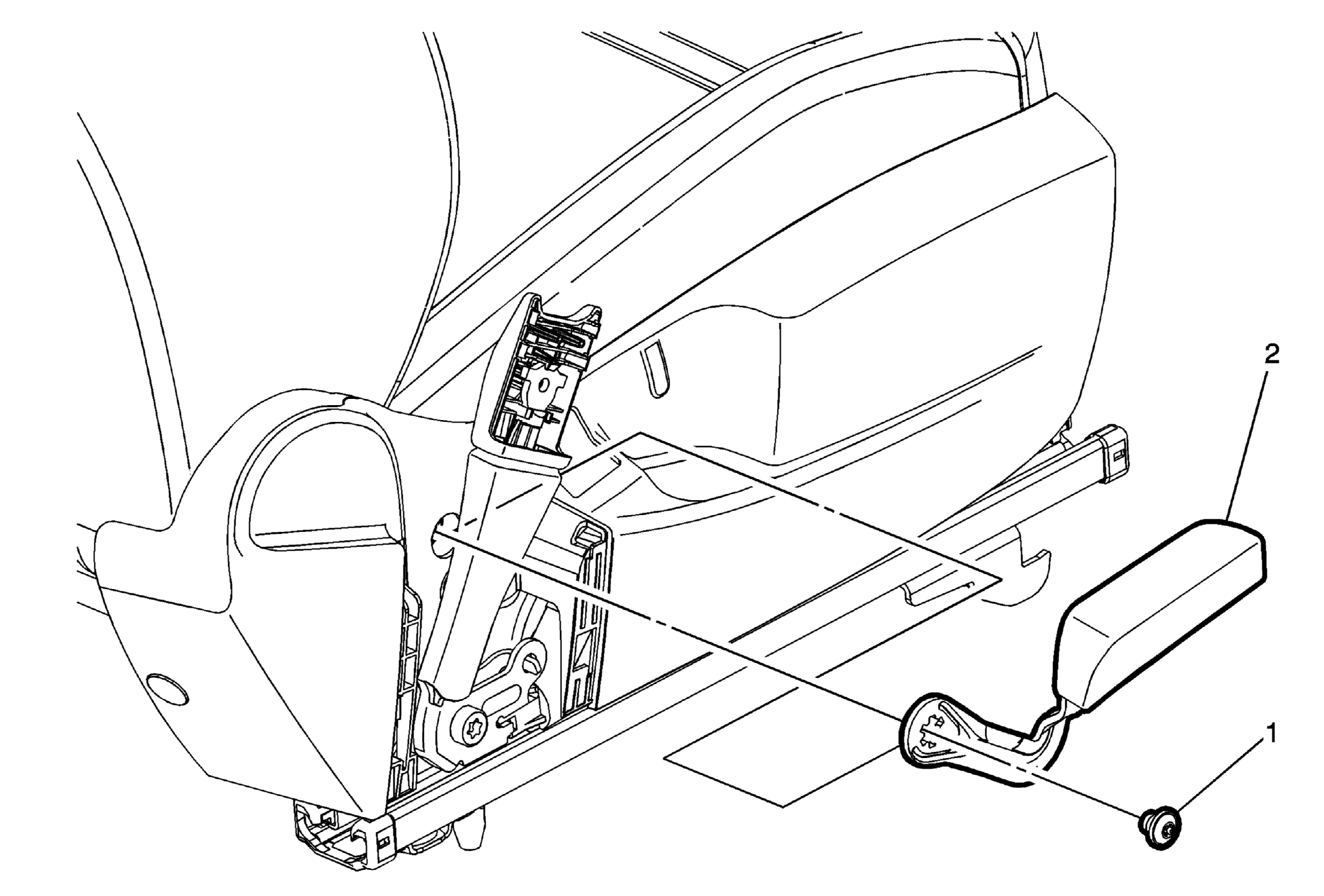

Fig 1: Driver or Passenger Seat Recliner Lever

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove driver or passenger seat outer recliner finish cover. Refer to Driver or Passenger Seat Outer Recliner Finish Cover Replacement (Power) , Driver or Passenger Seat Outer Recliner Finish Cover Replacement (Manual) .
1	Driver or Passenger Seat Recliner Lever Fastener CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Driver or Passenger Seat Recliner Lever
