Driver or Passenger Seat Head Restraint Actuator Replacement

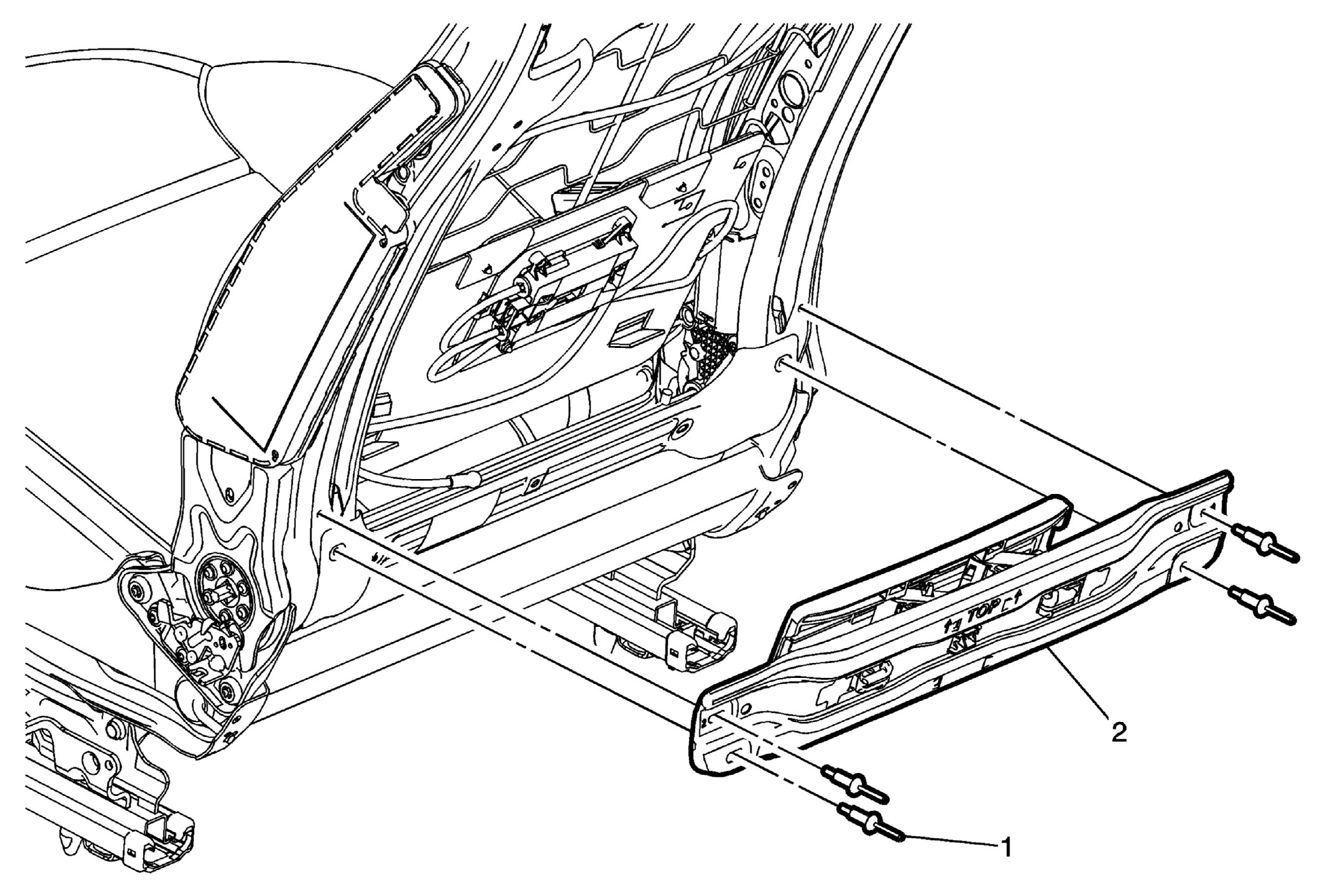

Fig 1: Driver or Passenger Seat Head Restraint Actuator & Rivets

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the front seat back cushion pad. Refer to Front Seat Back Pad Replacement
1	Driver or Passenger Seat Head Restraint Actuator Rivet (Qty: 4) WARNING: Use the proper eye protection when drilling to prevent metal chips from causing physical injury. Procedure Drill out rivets at the front seat head restraint actuator.
2	Driver or Passenger Seat Head Restraint Actuator Procedure Disengage the head restraint cable from the head restraint actuator retainers on both the left and right side. Remove the head restraint actuator from the seat back frame.

Callout

Component Name

Preliminary Procedures

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the front seat back cushion pad. Refer to Front Seat Back Pad Replacement

Driver or Passenger Seat Head Restraint Actuator Rivet (Qty: 4)

WARNING:

Use the proper eye protection when drilling to prevent metal chips from causing physical injury.

Procedure
Drill out rivets at the front seat head restraint actuator.

Driver or Passenger Seat Head Restraint Actuator

Procedure

Disengage the head restraint cable from the head restraint actuator retainers on both the left and right side.
Remove the head restraint actuator from the seat back frame.
