Driver or Passenger Seat Removal and Installation

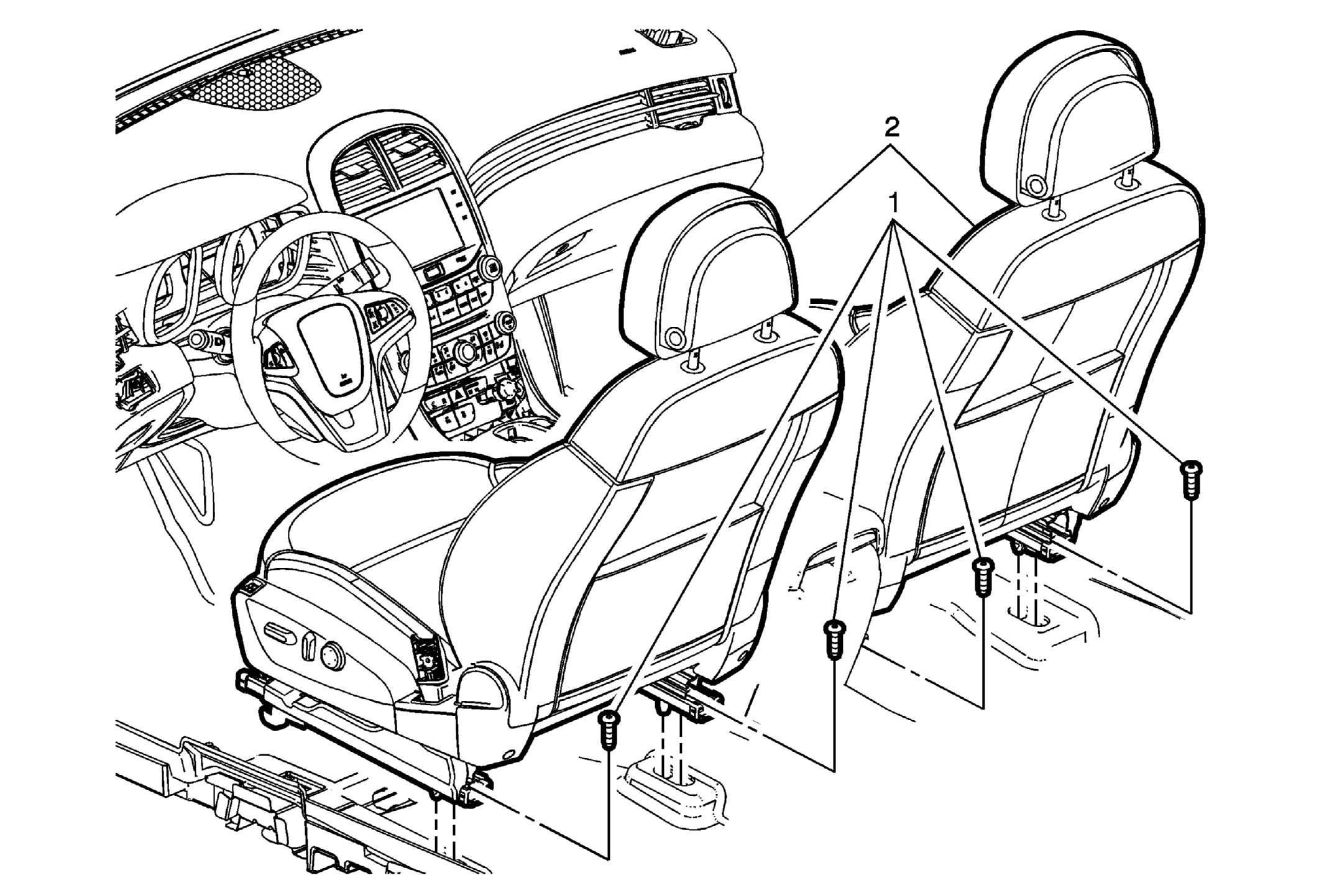

Fig 1: Front Seat Assembly & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Disconnect the front seat belt tensioner fastener by removing the cap, bolt, and cover. Refer to Driver or Passenger Seat Retractor Side Belt Replacement .
1	Front Seat Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Adjust the seat to the full forward position to gain access to the rear bolts. Tighten 45 N.m (33 lb ft)
2	Front Seat Assembly (Qty: 2) Procedure Disconnect the electrical. With the aid of an assistant remove the front seat, by tilting the seat forward and then lifting and pulling the seat rearwards to disengage the front hooks. Transfer components as necessary.

Callout

Component Name

WARNING:

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Disconnect the front seat belt tensioner fastener by removing the cap, bolt, and cover. Refer to Driver or Passenger Seat Retractor Side Belt Replacement .

Front Seat Bolt (Qty: 4)

CAUTION:

Procedure
Adjust the seat to the full forward position to gain access to the rear bolts.
Tighten
45 N.m (33 lb ft)

Front Seat Assembly (Qty: 2)

Procedure

Disconnect the electrical.
With the aid of an assistant remove the front seat, by tilting the seat forward and then lifting and pulling the seat rearwards to disengage the front hooks.
Transfer components as necessary.
