Driver Seat Adjuster and Recliner Switch Replacement

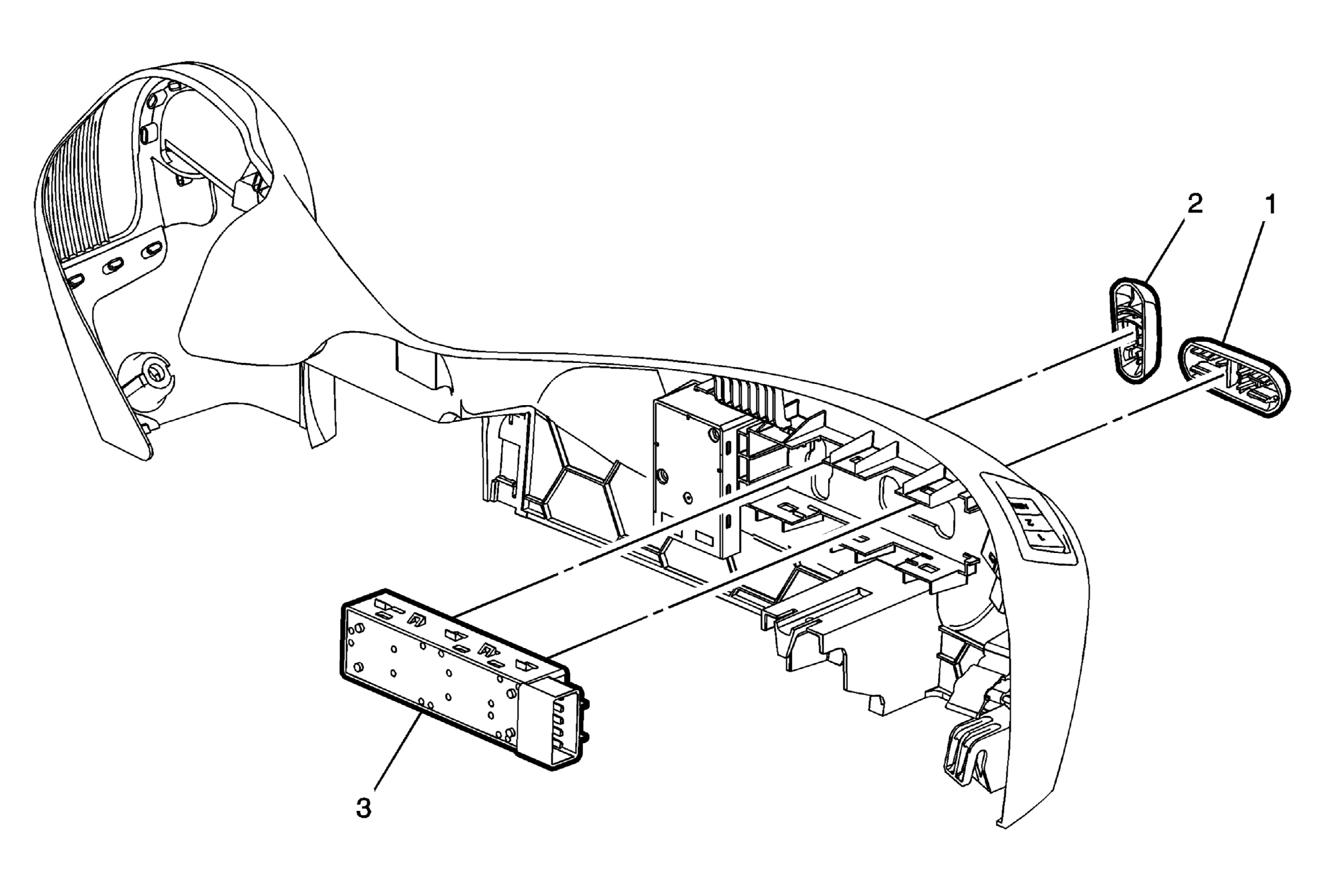

Fig 1: Driver Seat Adjuster and Recliner Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat outer recliner finish cover. Refer to Driver or Passenger Seat Outer Recliner Finish Cover Replacement (Power) , Driver or Passenger Seat Outer Recliner Finish Cover Replacement (Manual) .
1	Front Seat Adjuster Knob
2	Front Seat Recliner Knob
3	Driver Seat Adjuster and Recliner Switch Procedure Use a flat-bladed tool to release the switch from the adjuster finish cover. Disconnect the electrical connector.
