Rear Window Panel Trim Replacement (Without HP6)

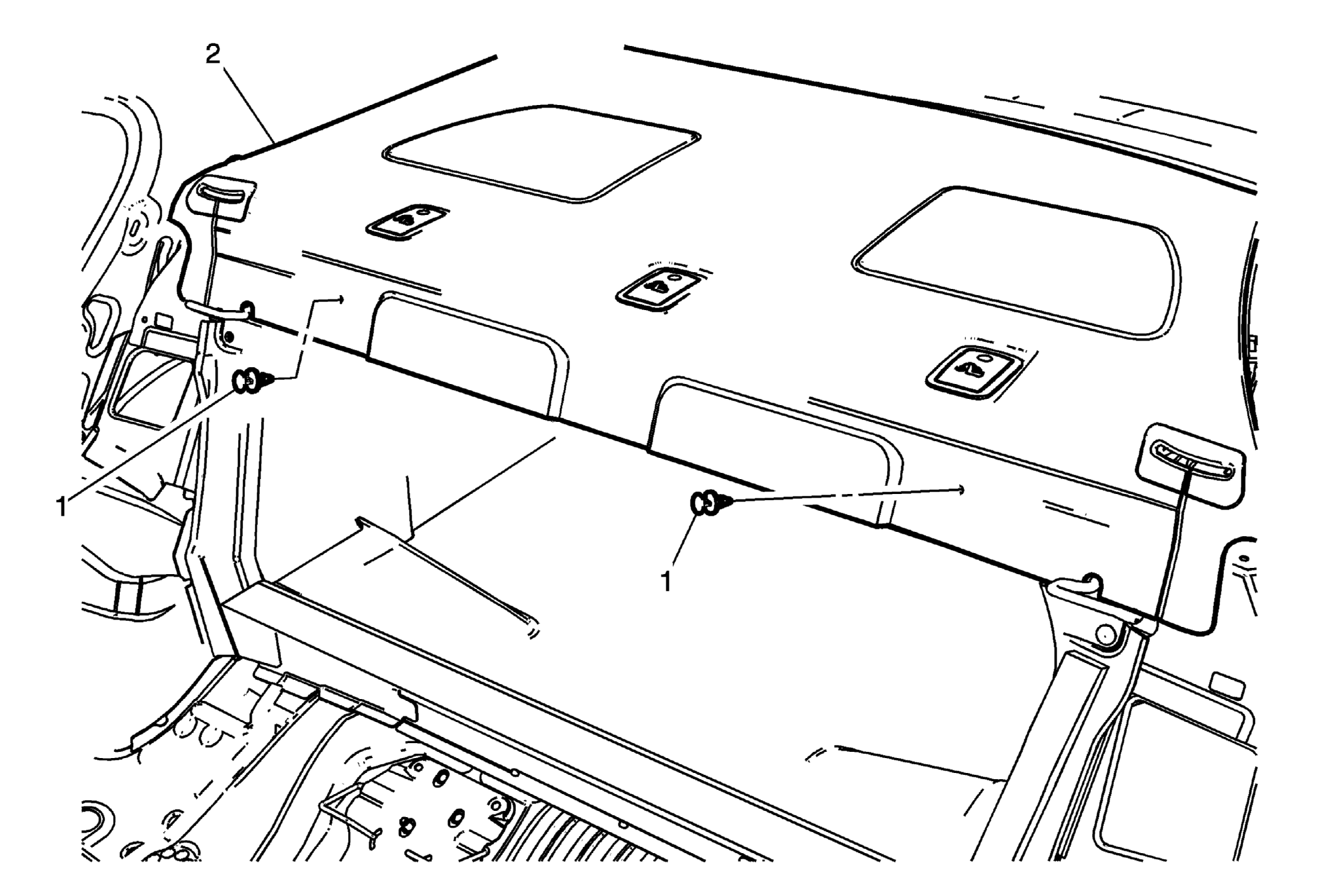

Fig 1: Rear Window Panel Trim & Retainers (Without HP6)
GM2714907Courtesy of GENERAL MOTORS COMPANY
Rear Window Panel Trim Replacement (Without HP6)

Callout Component Name

Preliminary Procedures

  1. Fold down the rear seats.
  2. Remove the quarter trim panel. Refer to Quarter Trim Panel Replacement .
1 Rear Window Panel Trim Retainer (Qty: 2)
2 Rear Window Panel Trim Assembly

Procedure

  1. Remove the seat belt guides and slide the belt through the slots in the panel.
  2. Disconnect the electrical connector.
