Quarter Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY Quarter Trim Panel Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Disable the SIR system. Refer to SIR Disabling and Enabling
.
- Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement
|

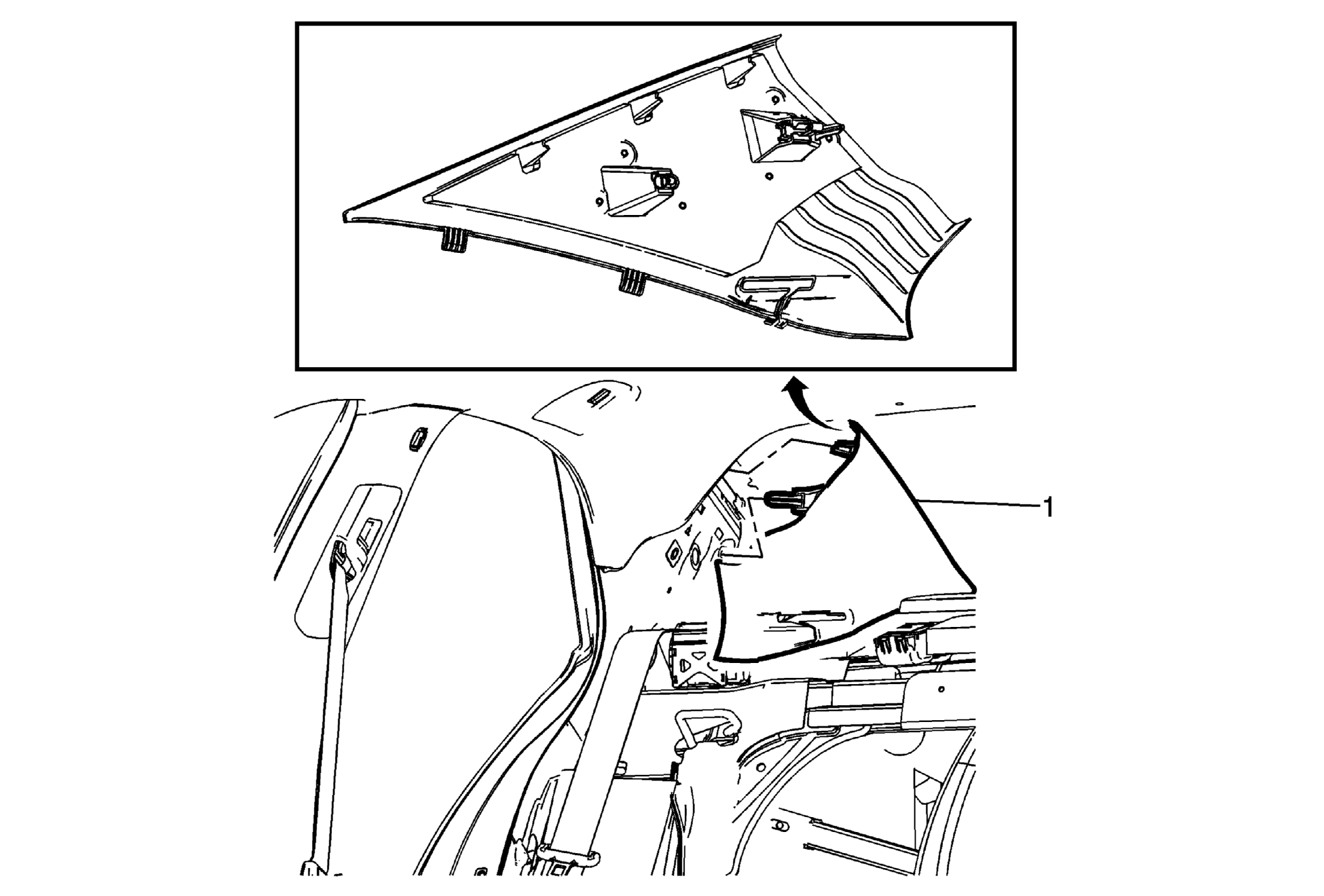

| 1 |
Quarter Trim Panel Assembly Procedure
- Fold down the rear seat back cushion.
- Route the rear seat retractor side belt through the opening in the quarter trim panel.
- Pull outward from the top front to release the upper portion of the quarter trim panel, then move upward to release the tabs.
|
