Center Pillar Upper Trim Panel Replacement

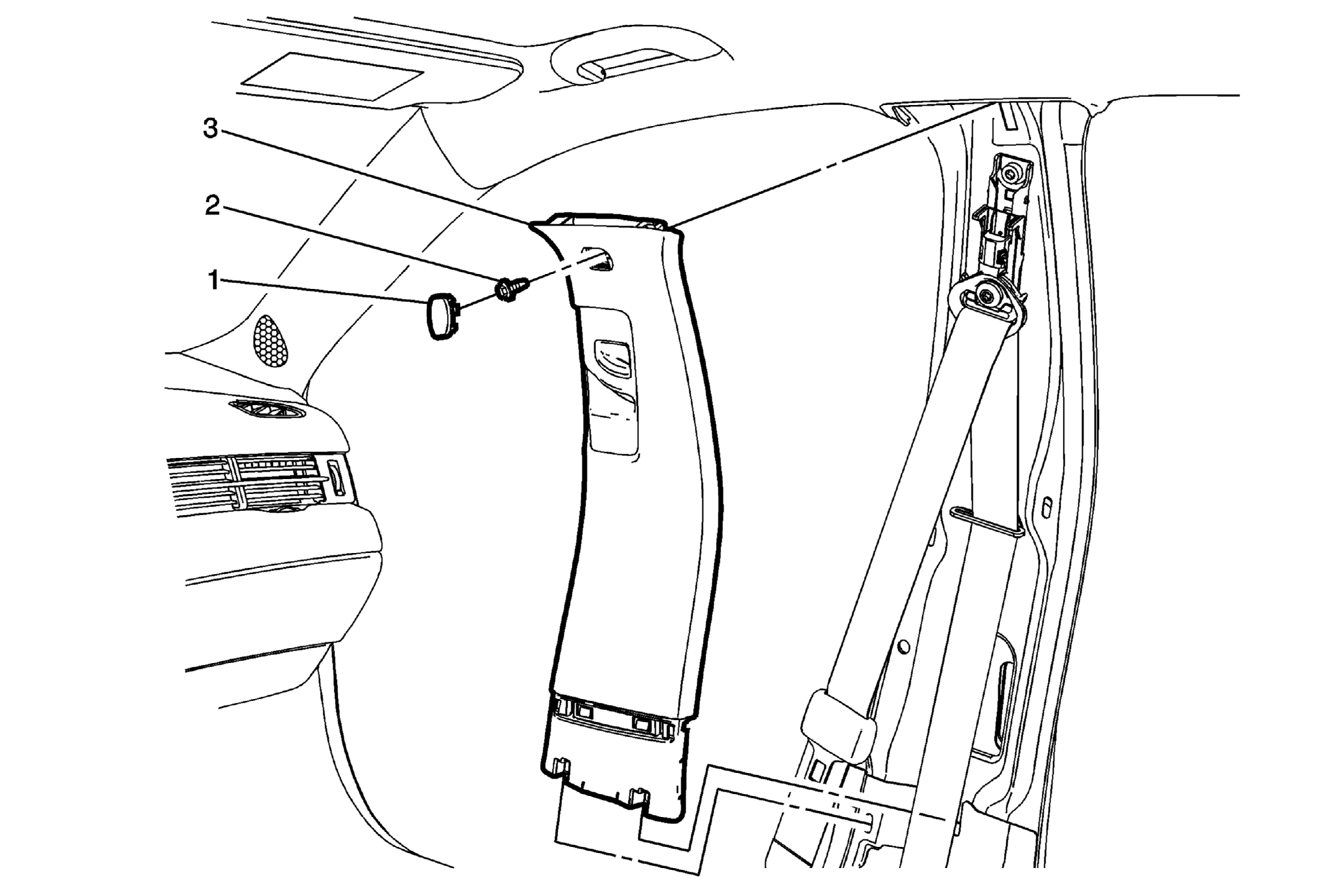

Fig 1: Center Pillar Upper Trim Panel & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement . Remove the driver or passenger seat belt fastener. Refer to Driver or Passenger Seat Retractor Side Belt Replacement . Move the seat to the full forward position.
1	Center Pillar Upper Trim Panel Fastener Cap
2	Center Pillar Upper Trim Panel Fastener CAUTION: Refer to Fastener Caution .
3	Center Pillar Upper Trim Panel Assembly Procedure When replacing the center pillar upper trim panel, feed the seat belt through the panel.
