Center Pillar Lower Trim Panel Replacement

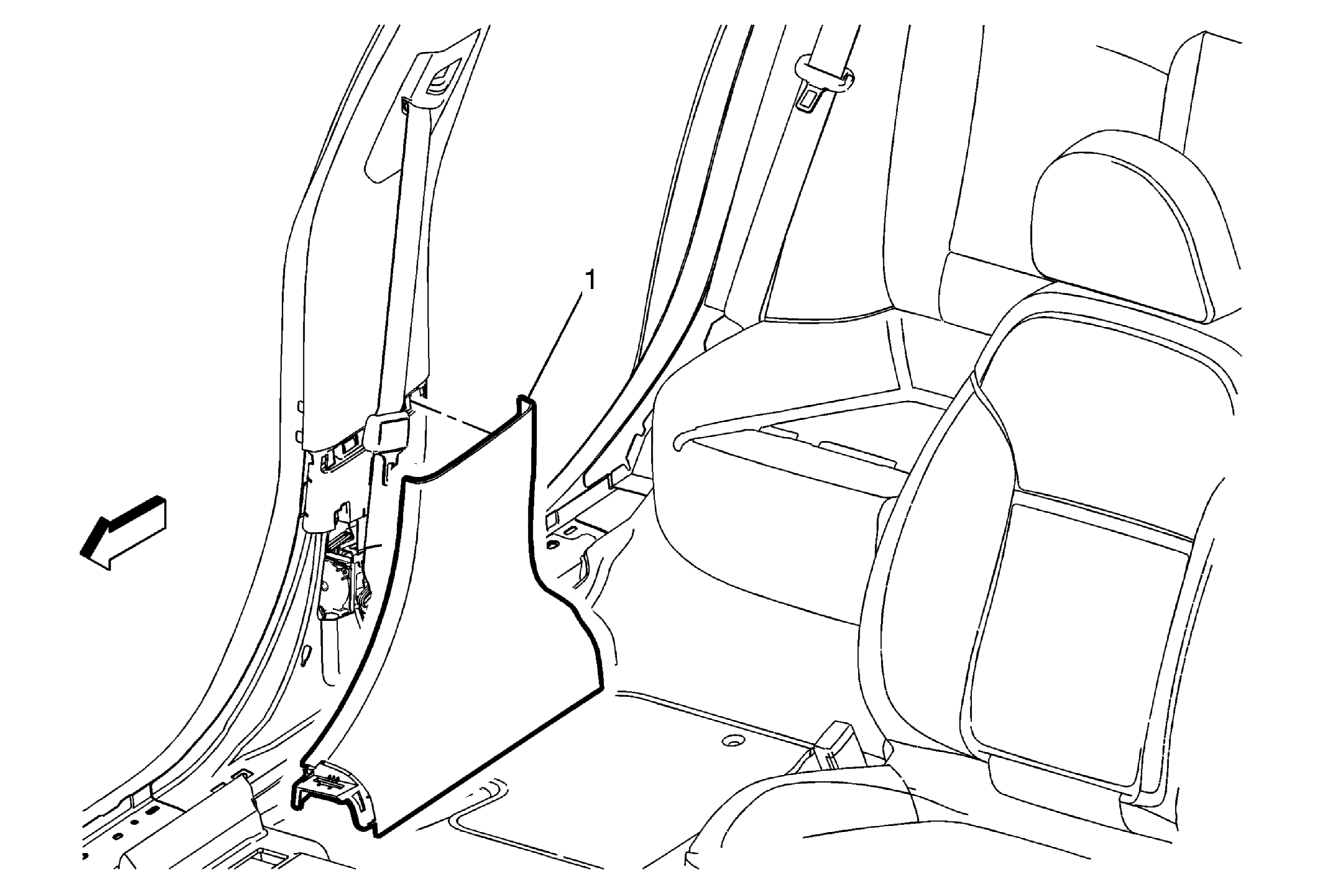

Fig 1: Center Pillar Lower Trim Panel
GM2577419Courtesy of GENERAL MOTORS COMPANY
Center Pillar Lower Trim Panel Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement .
  2. Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement .
  3. Move seat to full forward position.
1 Center Pillar Lower Trim Panel Assembly
Procedure
Ensure the seat belt webbing does not become trapped during installation.
