Rear Seat Back Latch Replacement

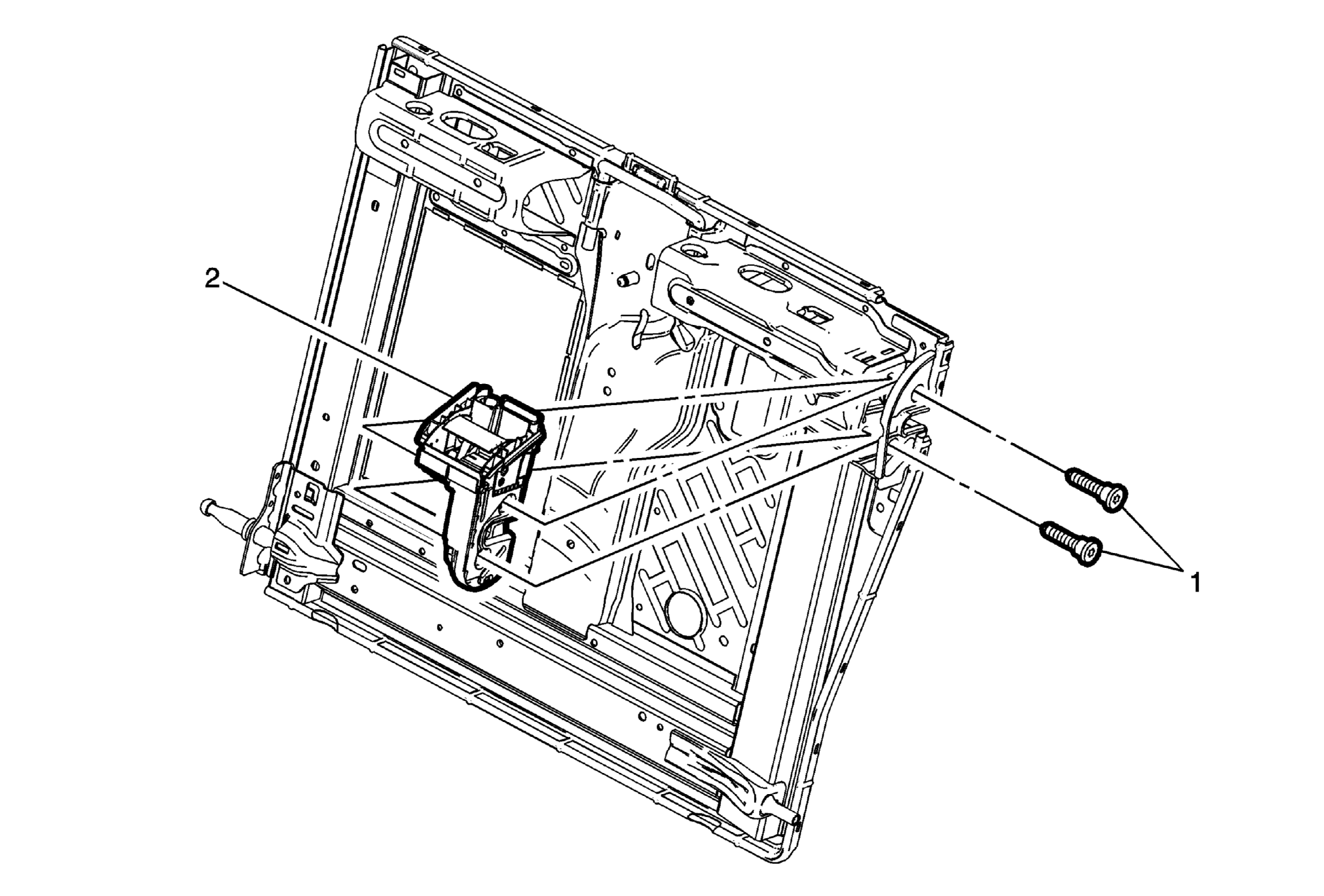

Fig 1: Rear Seat Back Latch & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% w/Split Back) , Rear Seat Back Cushion Removal and Installation (60% w/Split Back) . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% w/Splt Back) , Rear Seat Back Cushion Cover and Pad Replacement (60% w/Split Back) .
1	Rear Seat Back Latch Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Back Latch

Callout

Component Name

Preliminary Procedures

Rear Seat Back Latch Fastener (Qty: 2)

CAUTION:

Tighten
45 N.m (33 lb ft)

Rear Seat Back Latch
