Rear Seat Back Cushion Pivot Support Replacement
Rear Seat Back Cushion Pivot Support Replacement

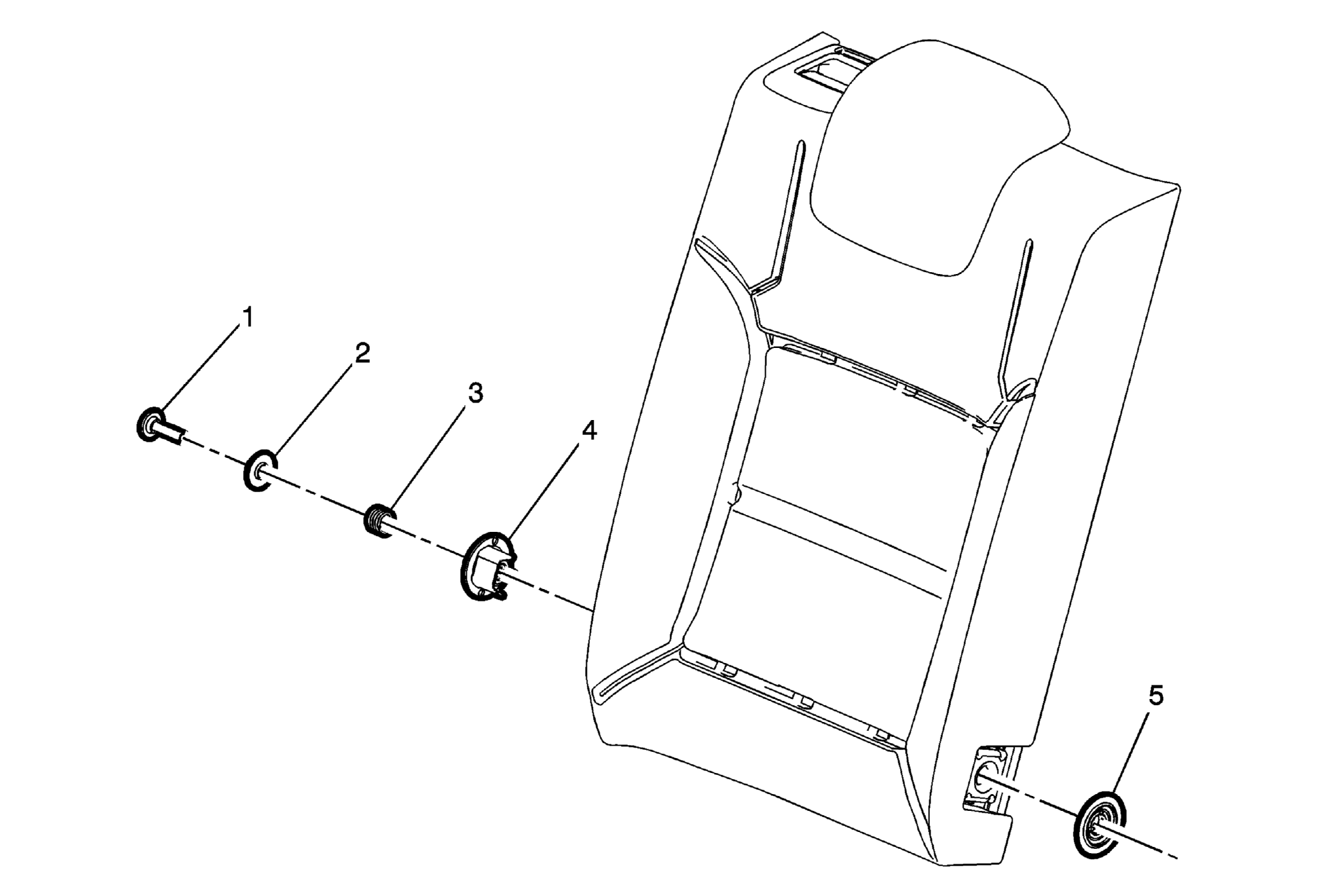

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% w/Split Back) , Rear Seat Back Cushion Removal and Installation (60% w/Split Back) . |
|
| 1 | Rear Seat Back Outer Pivot Bolt
CAUTION:
Refer to Fastener Caution . Tighten 23 N.m (17 lb ft) |
| 2 | Rear Seat Back Cushion Outer Pivot Bushing |
| 3 | Rear Seat Back Cushion Outer Pivot Bolt Spring |
| 4 | Rear Seat Back Cushion Pivot Support Housing |
| 5 | Rear Seat Back Center Finish Cover
NOTE:
The finish cover is only found on the 40% rear seat back cushion. |
