Rear Seat Armrest Multifunction Compartment Armrest Replacement
Rear Seat Armrest Multifunction Compartment Armrest Replacement

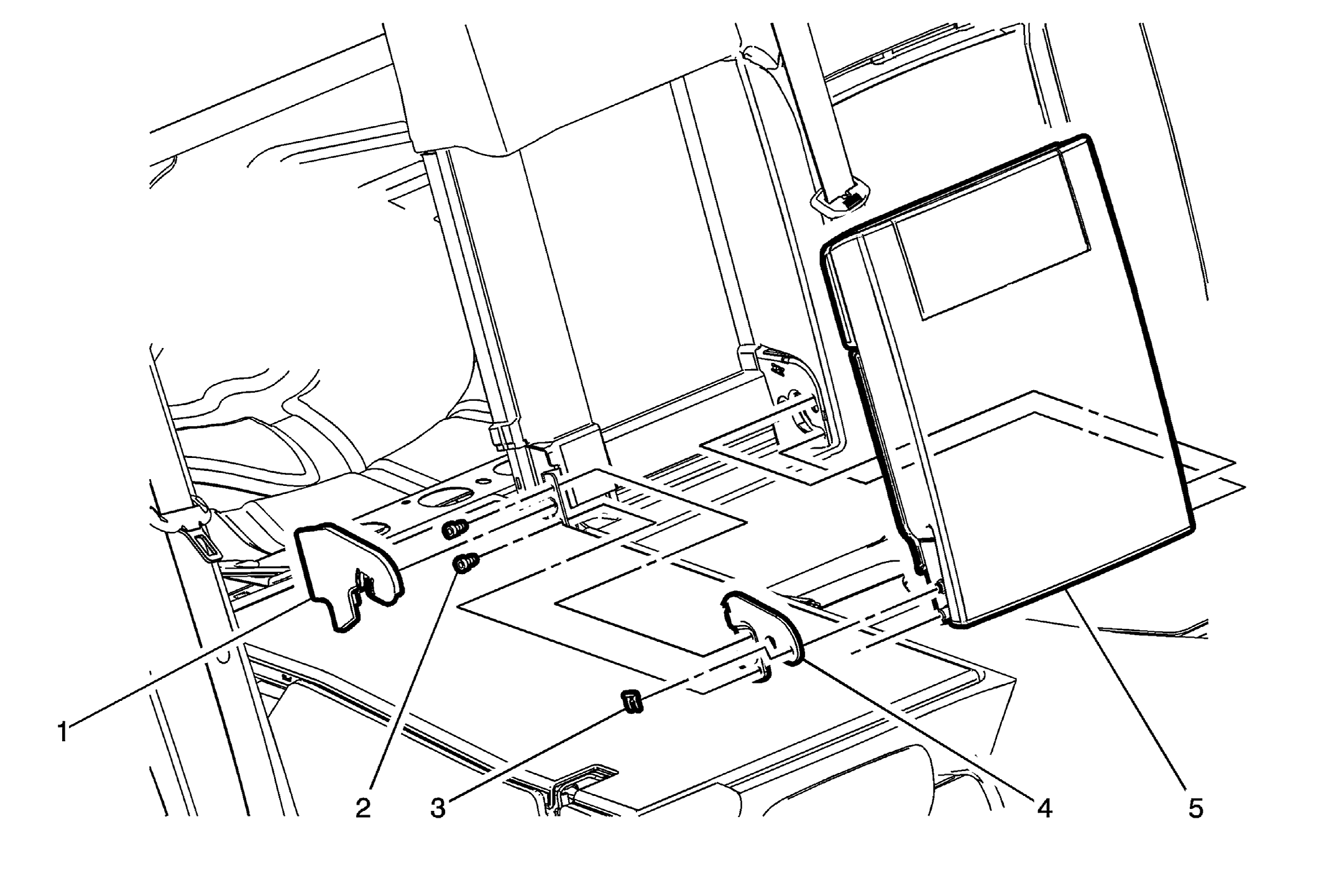

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% w/Split Back) , Rear Seat Back Cushion Removal and Installation (60% w/Split Back) |
|
| 1 | Rear Seat Armrest Hinge Finish Cover |
| 2 | Rear Seat Armrest Multifunction Compartment Fastener (Qty 2)
CAUTION:
Refer to Fastener Caution . |
| 3 | Rear Seat Armrest Multifunction Compartment Clip |
| 4 | Rear Seat Armrest Hinge Finish Bracket |
| 5 | Rear Seat Armrest Multifunction Compartment |
