Front Seat Back Cushion Cover Wire Replacement

Preliminary Procedure

WARNING:

Refer to SIR Warning .

1. Disable the SIR system. Refer to SIR Disabling and Enabling
2. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
3. Remove the front seat back cushion pad. Refer to Front Seat Back Pad Replacement .

Procedure

1. Disconnect the electrical connections to the lumbar pump and lumbar distributor.

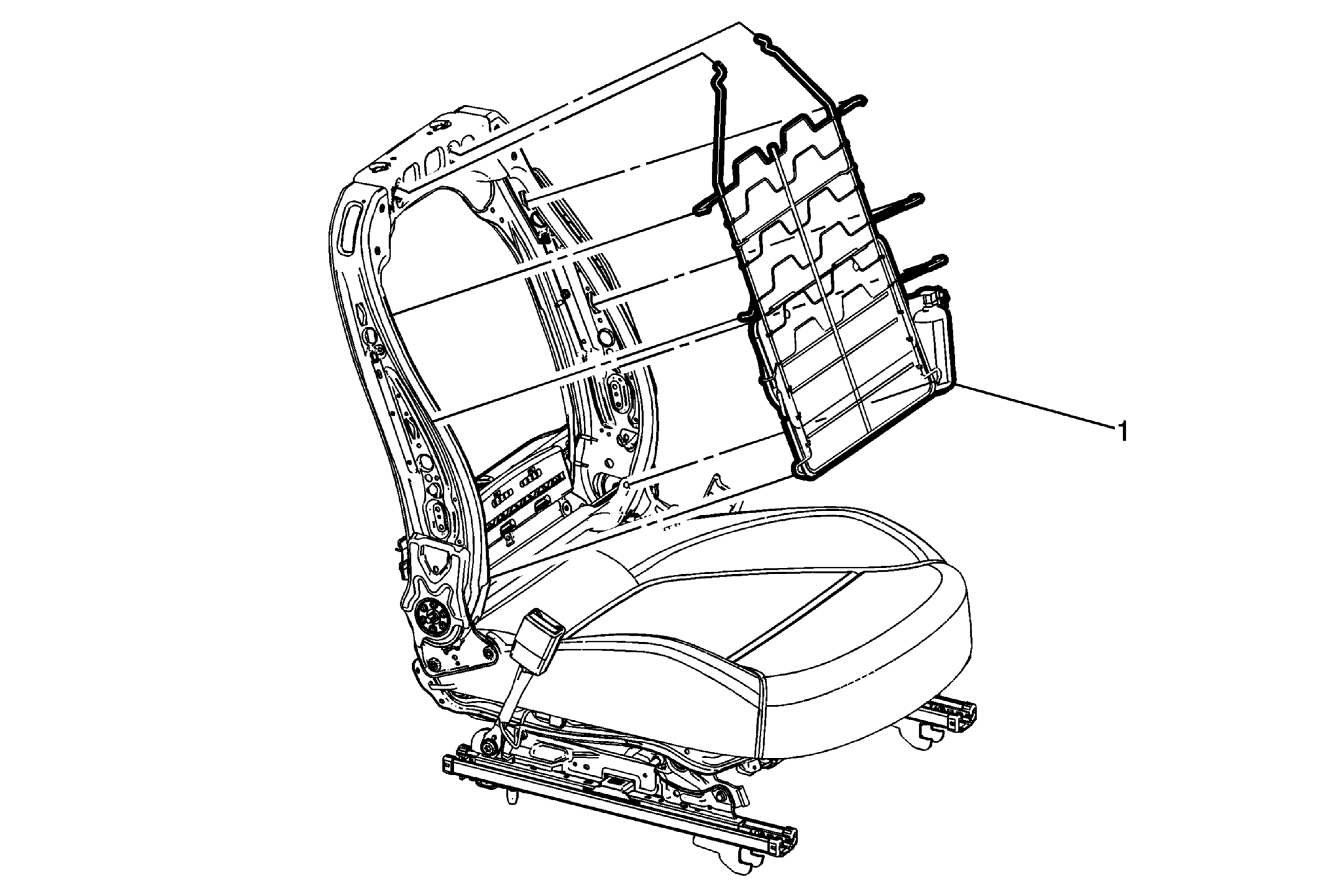

2. Pull outward on the bottom of the front seat back cushion wire to release the lower support wires from the seat frame.
3. Pull side of front seat back cushion wire rearward and sideward to release the lower support wires.
4. Pull side of front seat back cushion wire forward and sideward to release the upper support wires.
5. Remove the front seat back cushion wire from the seat back frame.
