Driver or Passenger Seat Cushion Frame Replacement

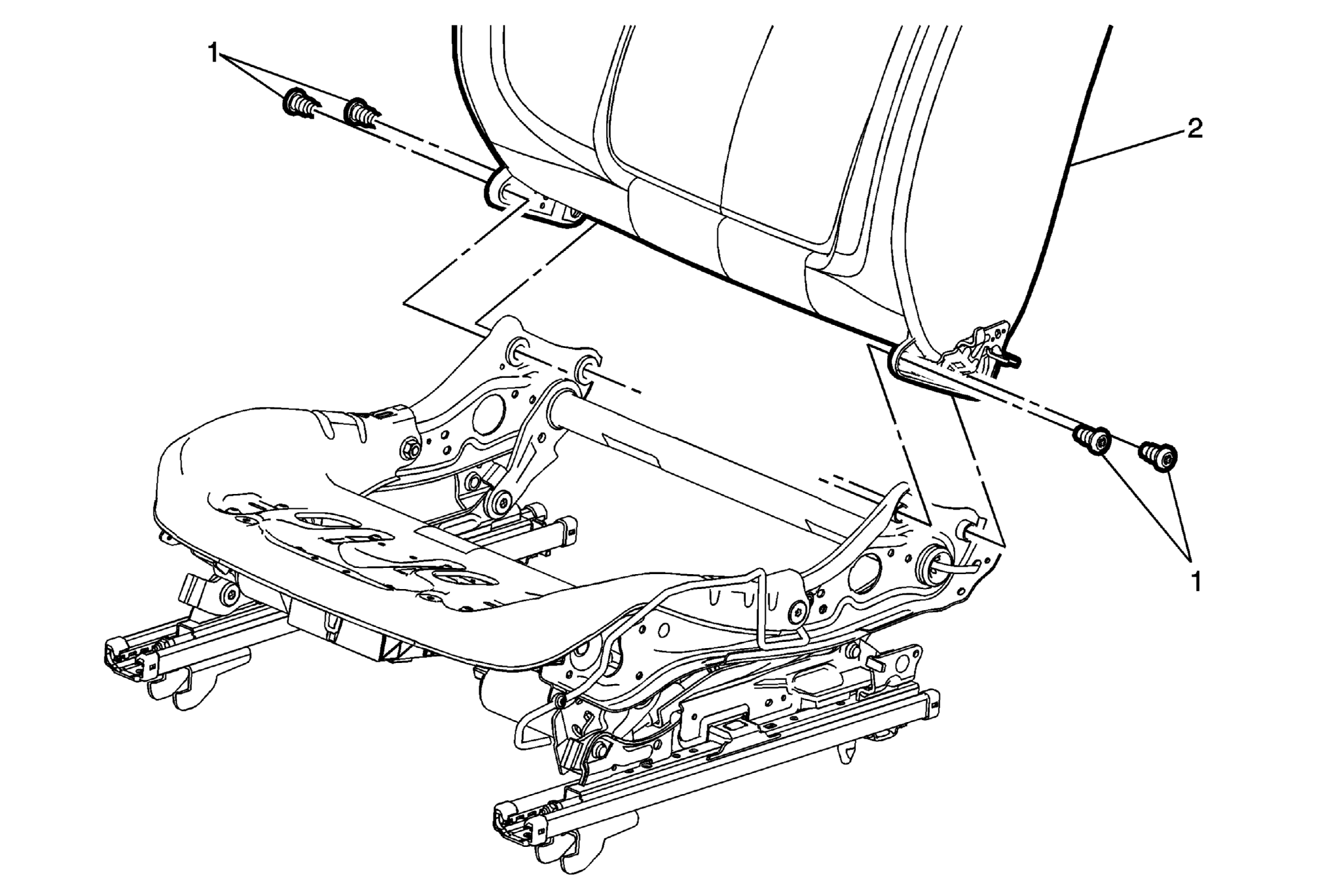

Fig 1: Driver or Passenger Seat Cushion Frame & Bolts
GM2560203Courtesy of GENERAL MOTORS COMPANY
Driver or Passenger Seat Cushion Frame Replacement

Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure

  1. Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
  3. Remove the front seat belt buckle. Refer to Front Seat Belt Buckle Replacement .
  4. Remove the front seat belt anchor plate tensioner. Refer to Front Seat Belt Anchor Plate Tensioner Replacement .
1 Driver or Passenger Seat Cushion Frame Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft)
2 Driver or Passenger Seat Cushion Frame

Procedure

  1. Disconnect electrical connectors as needed.
  2. If replacing with a new front seat cushion frame, transfer components as necessary.
