Front End Upper Tie Bar Replacement

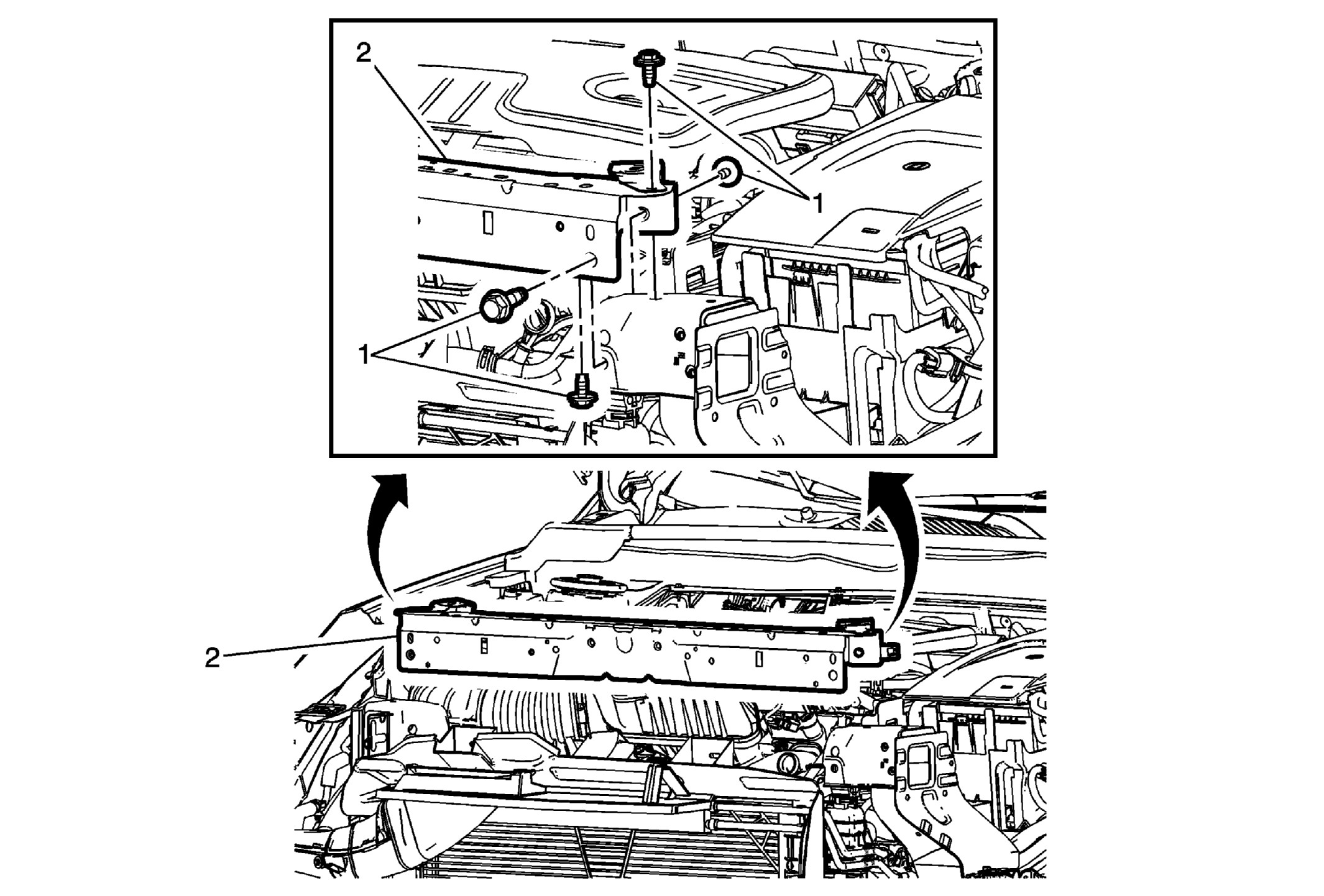

Fig 1: Front End Upper Tie Bar & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement . Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement .
1	Front End Upper Tie Bar Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 22 (16 lb ft)
2	Front End Upper Tie Bar Procedure Transfer parts as needed.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement .
Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement .

Front End Upper Tie Bar Bolt (Qty: 8)

CAUTION:

Tighten
22 (16 lb ft)

Front End Upper Tie Bar
Procedure
Transfer parts as needed.
