Hood Primary and Secondary Latch Replacement

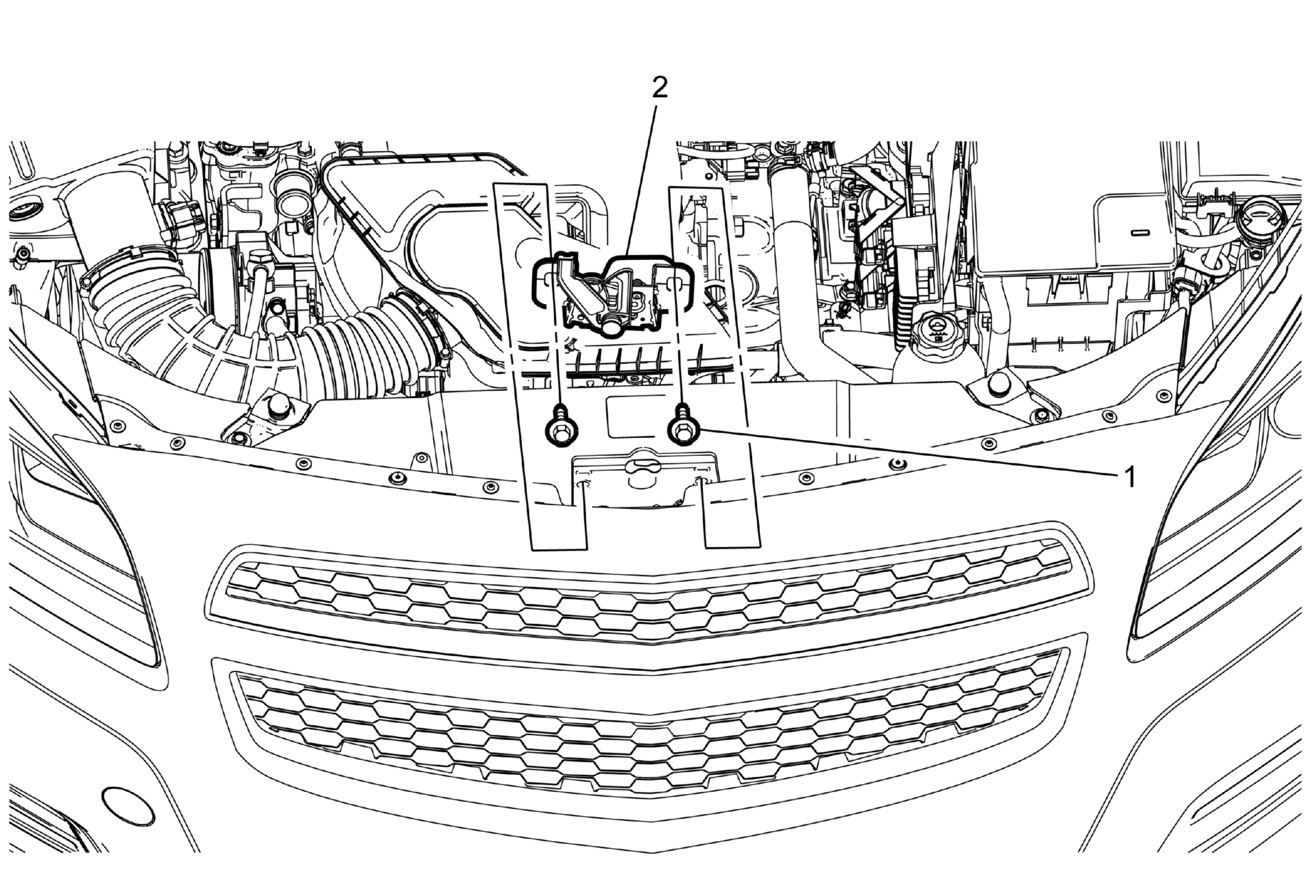

Fig 1: Hood Primary & Secondary Latch
GM2554656Courtesy of GENERAL MOTORS COMPANY
Hood Primary and Secondary Latch Replacement

Callout Component Name
1 Hood Primary and Secondary Latch Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .

NOTE:

Mark the location of the original hood latch before removing the bolt for reference.


Tighten
22 (16 lb ft)
2 Hood Primary and Secondary Latch

Procedure

  1. Disconnect the release cable from the hood primary latch.
  2. Disconnect the electrical connector.
