Ignition and Start Switch Replacement (With BTM)

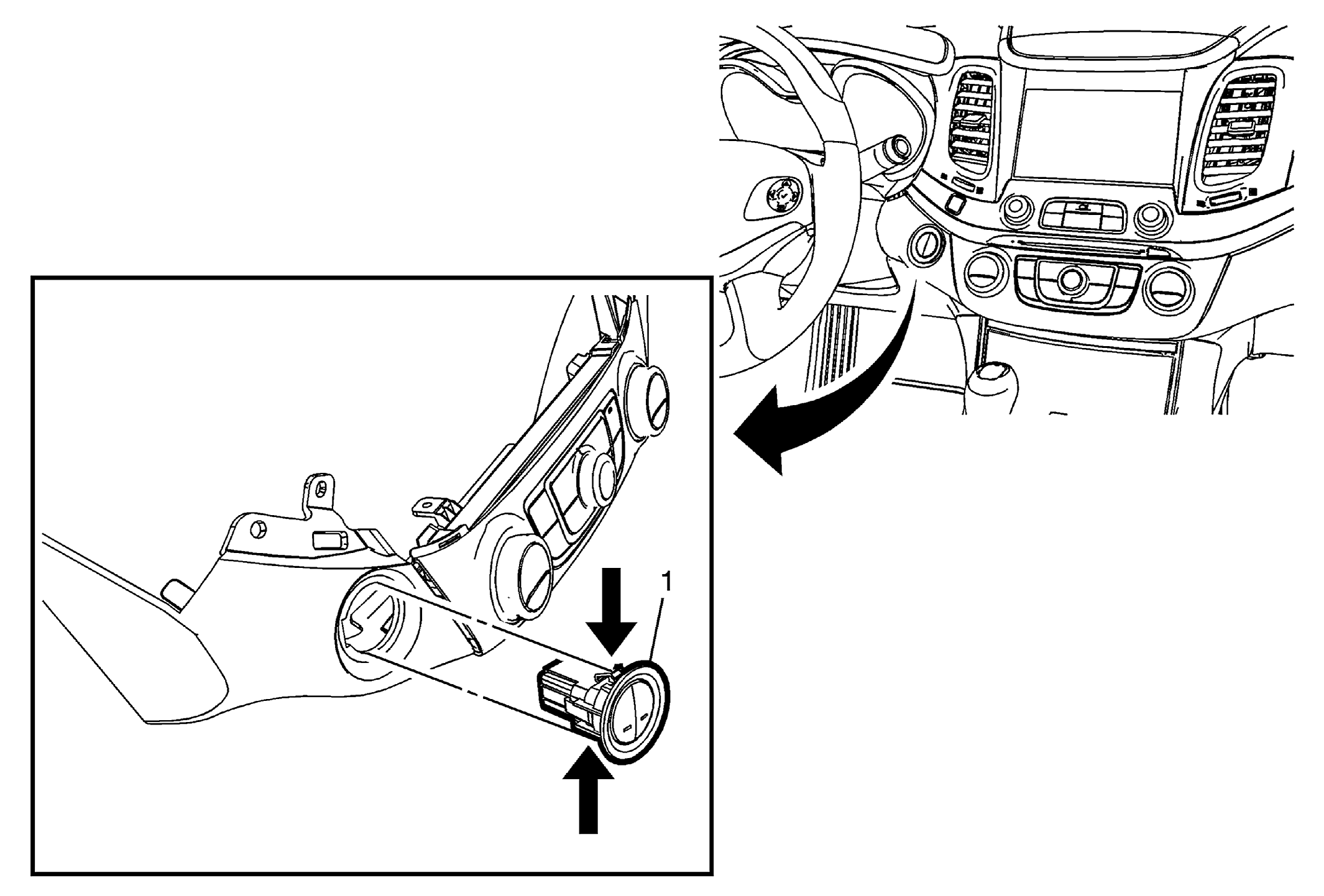

Fig 1: Ignition and Start Switch (With BTM)

Courtesy of GENERAL MOTORS COMPANY

Ignition and Start Switch Replacement (With BTM)

Callout	Component Name
Preliminary Procedure  Remove the instrument panel center trim pad. Refer to Instrument Panel Center Trim Pad Replacement .
1	Ignition and Start Switch Procedure  Depress tabs on switch and remove from the panel.
