Ambient Air Temperature Gauge Sensor Replacement

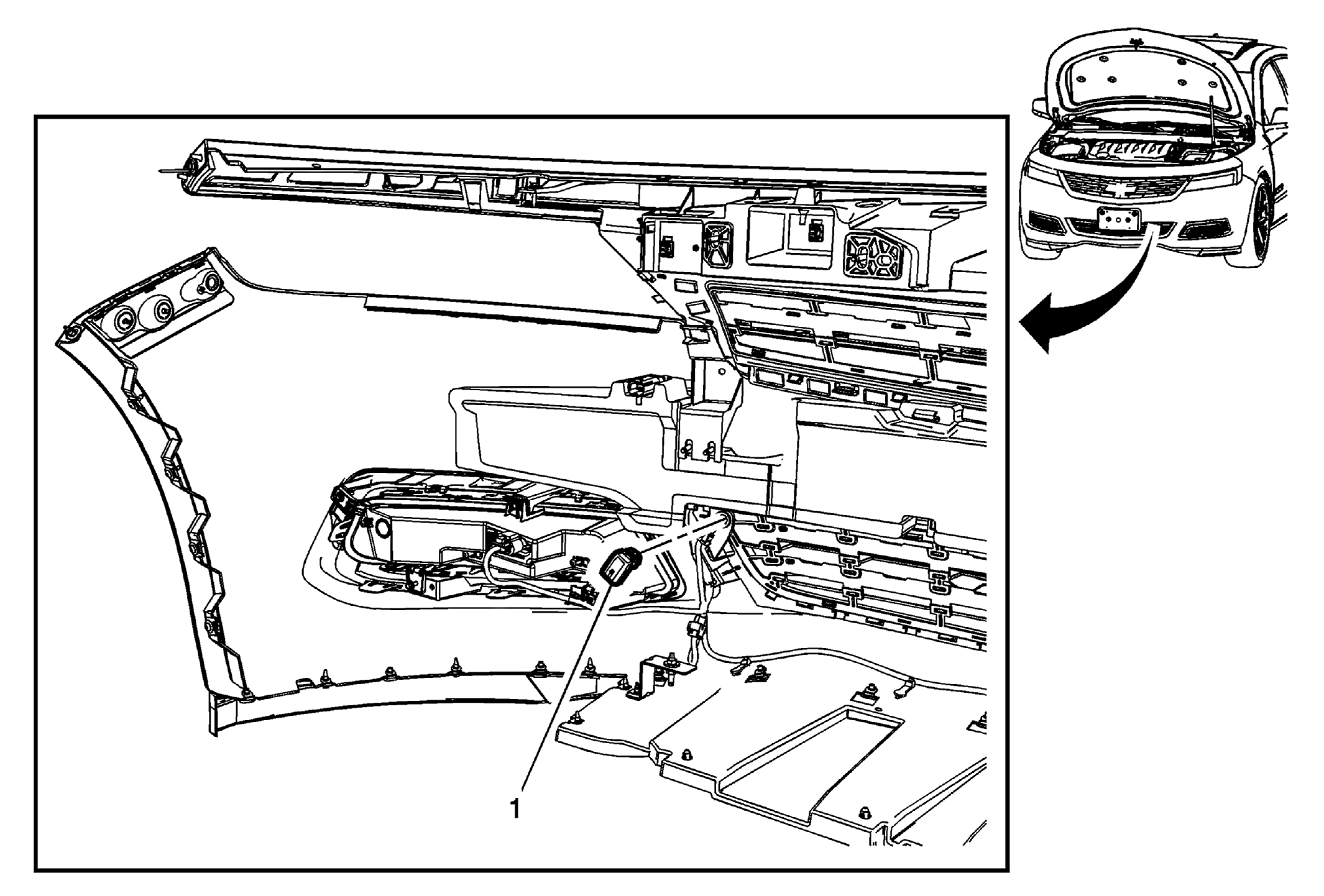

Fig 1: Ambient Air Temperature Gauge Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement .
1	Ambient Air Temperature Gauge Sensor Procedures Disconnect the ambient air temperature gauge sensor. Squeeze the ambient air temperature gauge sensor tabs, to release the sensor.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement .

Ambient Air Temperature Gauge Sensor

Procedures
