Front Seat Cushion Side Finish Panel Replacement

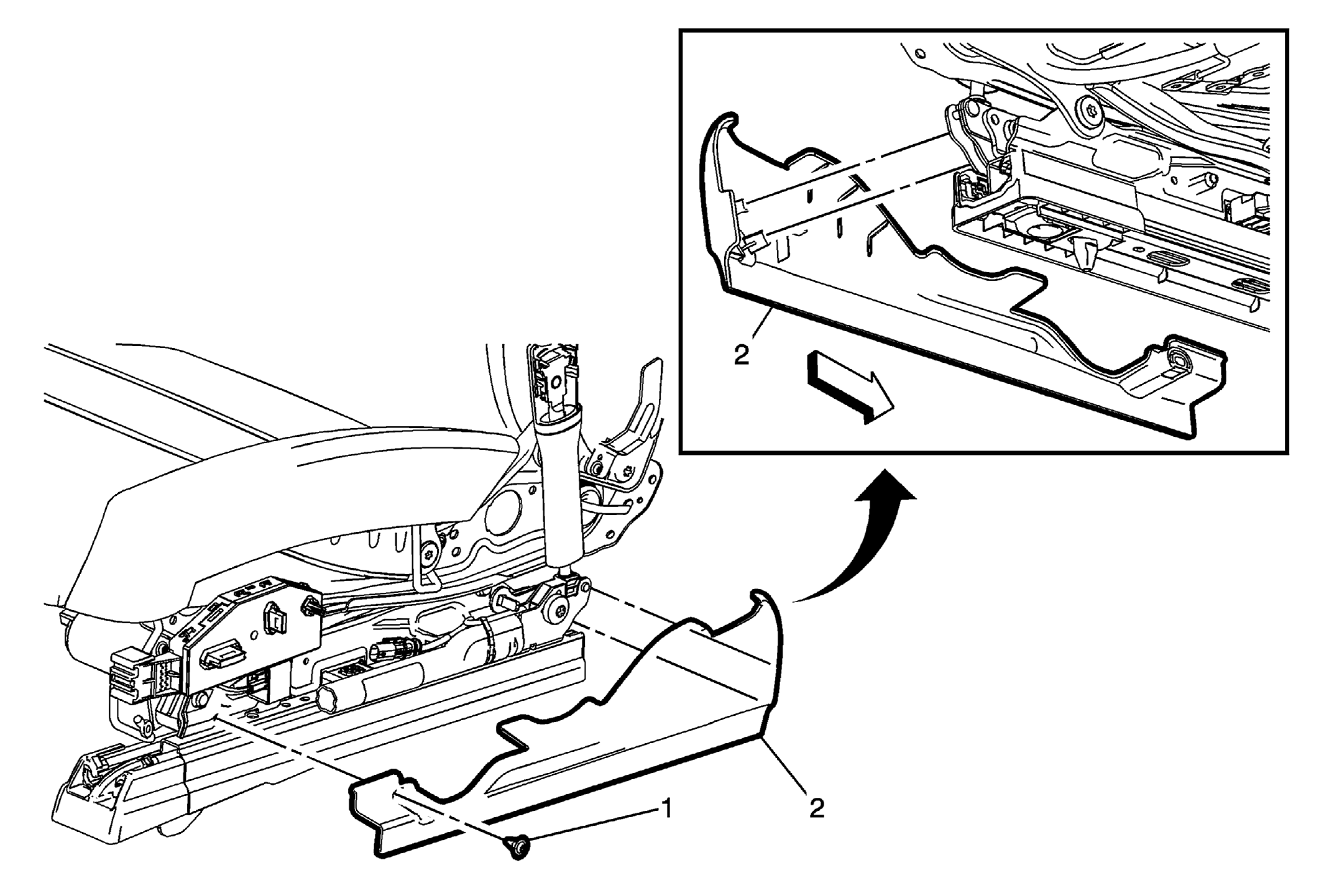

Fig 1: Front Seat Cushion Side Finish Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat cushion outer finish cover. Refer to Front Seat Cushion Outer Finish Cover Replacement .
1	Front Seat Cushion Side Finish Panel Fastener CAUTION: Refer to Fastener Caution .
2	Front Seat Cushion Side Finish Panel Procedure Raise the seat to the highest seat position. Unclip the seat tensioner wiring harness from the cover. Release the rear tabs on the cover. Remove the finish cover.

Callout

Component Name

Preliminary Procedure
Remove the front seat cushion outer finish cover. Refer to Front Seat Cushion Outer Finish Cover Replacement .

Front Seat Cushion Side Finish Panel Fastener

CAUTION:

Front Seat Cushion Side Finish Panel

Procedure
