Front Seat Cushion Outer Finish Cover Replacement

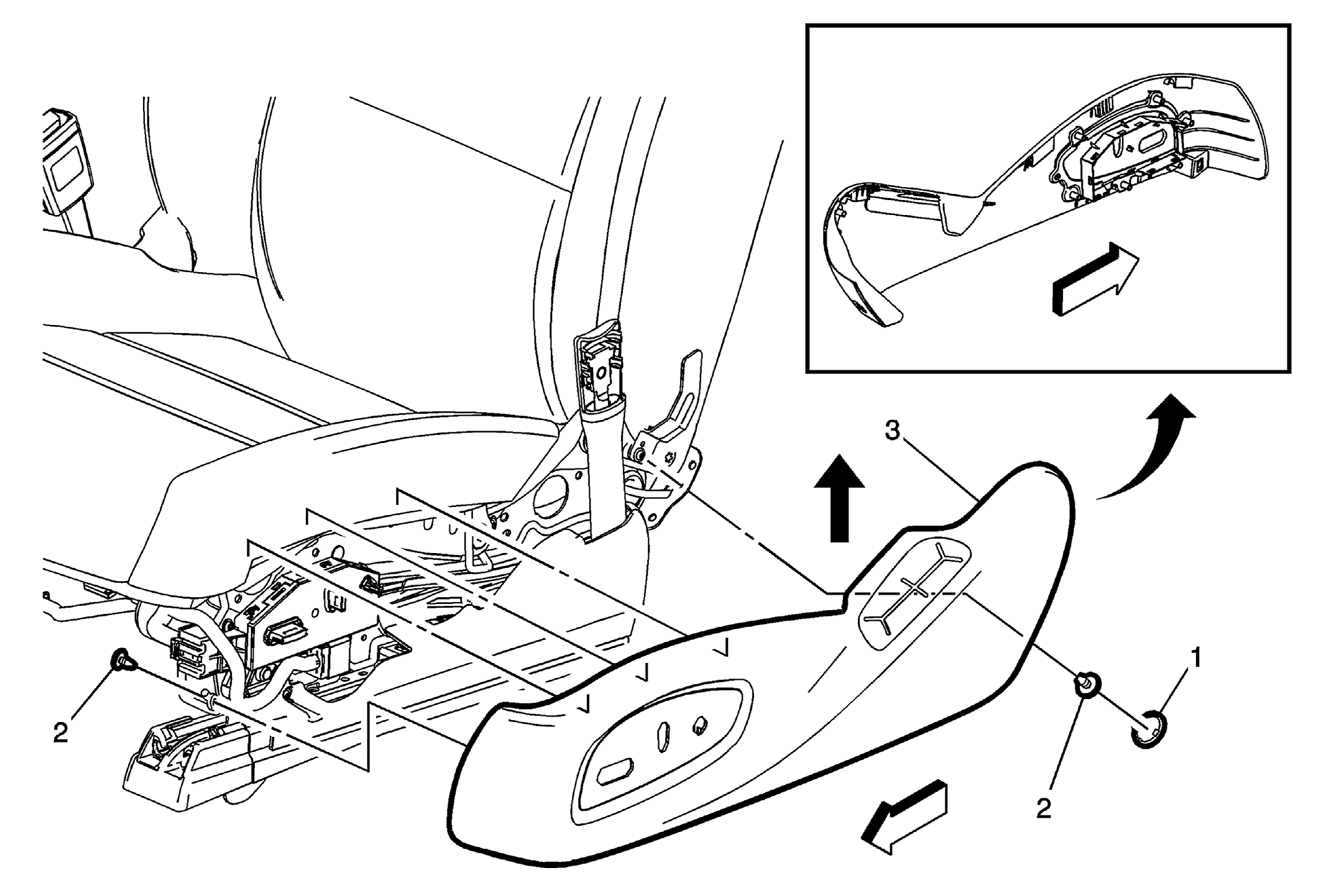

Fig 1: Front Seat Cushion Outer Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat tilt adjuster lever, if equipped. Refer to Front Seat Tilt Adjuster Lever Replacement .
1	Front Seat Cushion Outer Finish Cover Cap
2	Front Seat Cushion Outer Finish Cover Retainer (Qty: 2) CAUTION: Refer to Fastener Caution .
3	Front Seat Cushion Outer Finish Cover Procedure Remove the outer finish panel by pulling upward near the retainer clip locations. Disconnect the electrical connectors. If replacing the finish panel, transfer components as necessary.
