Front Seat Tilt Adjuster Lever Replacement
Courtesy of GENERAL MOTORS COMPANY Front Seat Tilt Adjuster Lever Replacement

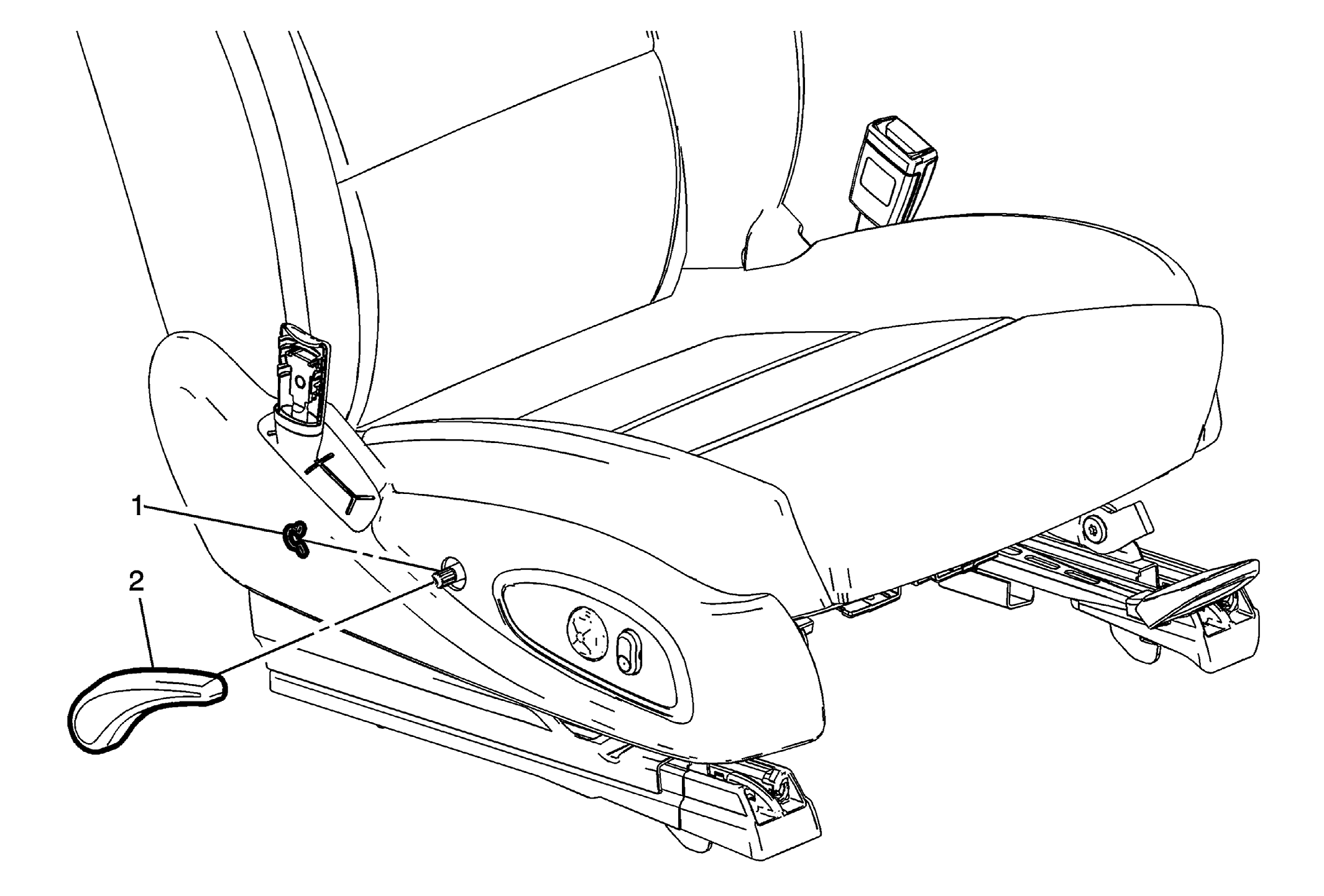

| Callout |
Component Name |
| 1 |
Front Seat Tilt Adjuster Lever Clip
Procedure
Use a flat-bladed tool to release the adjust lever clip from the lever assembly. |
| 2 |
Front Seat Tilt Adjuster Lever
Procedure
Use a flat-bladed tool to release the lever from the seat. |
