Driver or Passenger Seat Adjuster Finish Cover Retainer Replacement

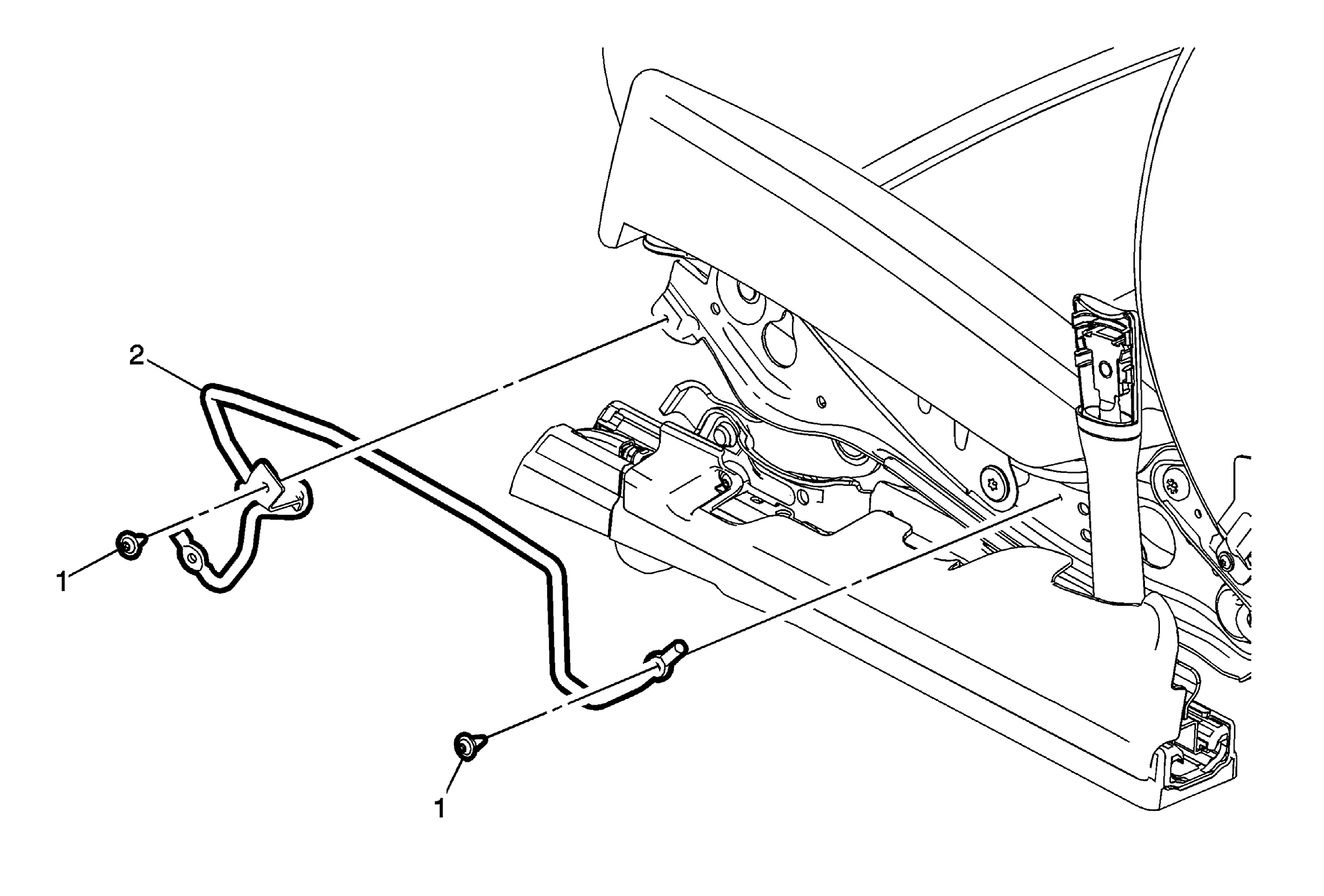

Fig 1: Driver or Passenger Seat Adjuster Finish Cover Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front seat cushion outer finish cover. Refer to Front Seat Cushion Outer Finish Cover Replacement .
1	Driver or Passenger Seat Adjuster Finish Cover Retainer Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Driver or Passenger Seat Adjuster Finish Cover Retainer
