Rear Compartment Floor Panel Front Trim Replacement (With HP6)
Rear Compartment Floor Panel Front Trim Replacement (With HP6)

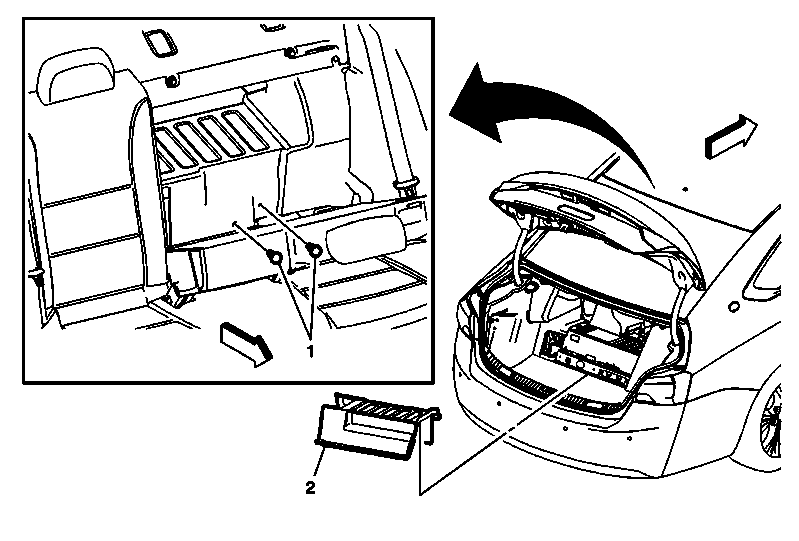

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the drive motor battery cooling blower cover with HP6. Refer to Drive Motor Battery Cooling Blower Cover Replacement (With HP6) . |
|
| 1 | Rear Compartment Side Trim Panel (Push-In) Retainer (Qty: 2) Procedure Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward to access the rear compartment side trim panel (push-in) retainer. |
| 2 | Rear Compartment Floor Panel Front Trim Assembly - With HP6 |
