Drive Motor Battery Cooling Blower Cover Replacement (With HP6)
Drive Motor Battery Cooling Blower Cover Replacement (With HP6)

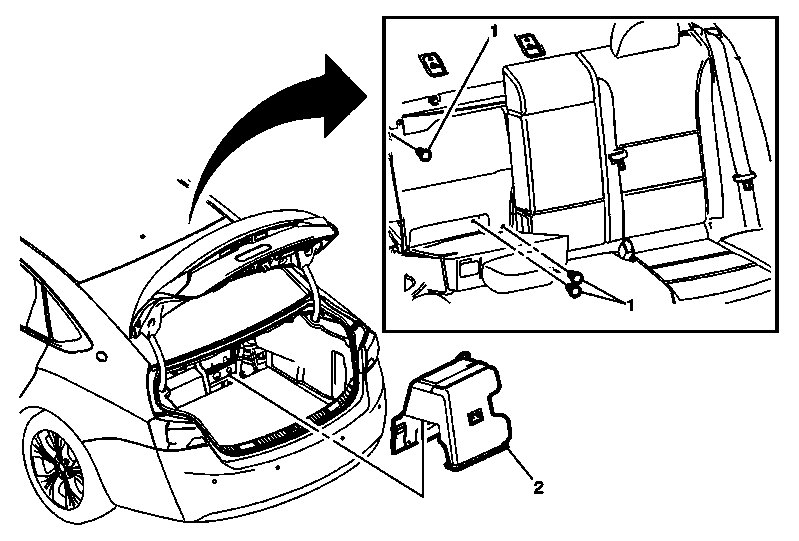

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement (Without HP6) , Rear Compartment Floor Panel Trim Replacement (With HP6) . |
|
| 1 | Rear Compartment Side Trim Insulator Retainer (Qty: 3) Procedure Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward to access the (Push-in) retainers. |
| 2 | Drive Motor Battery Cooling Blower Cover Assembly - With HP6 |
