Rear Closure Center Applique Replacement
Rear Closure Center Applique Replacement

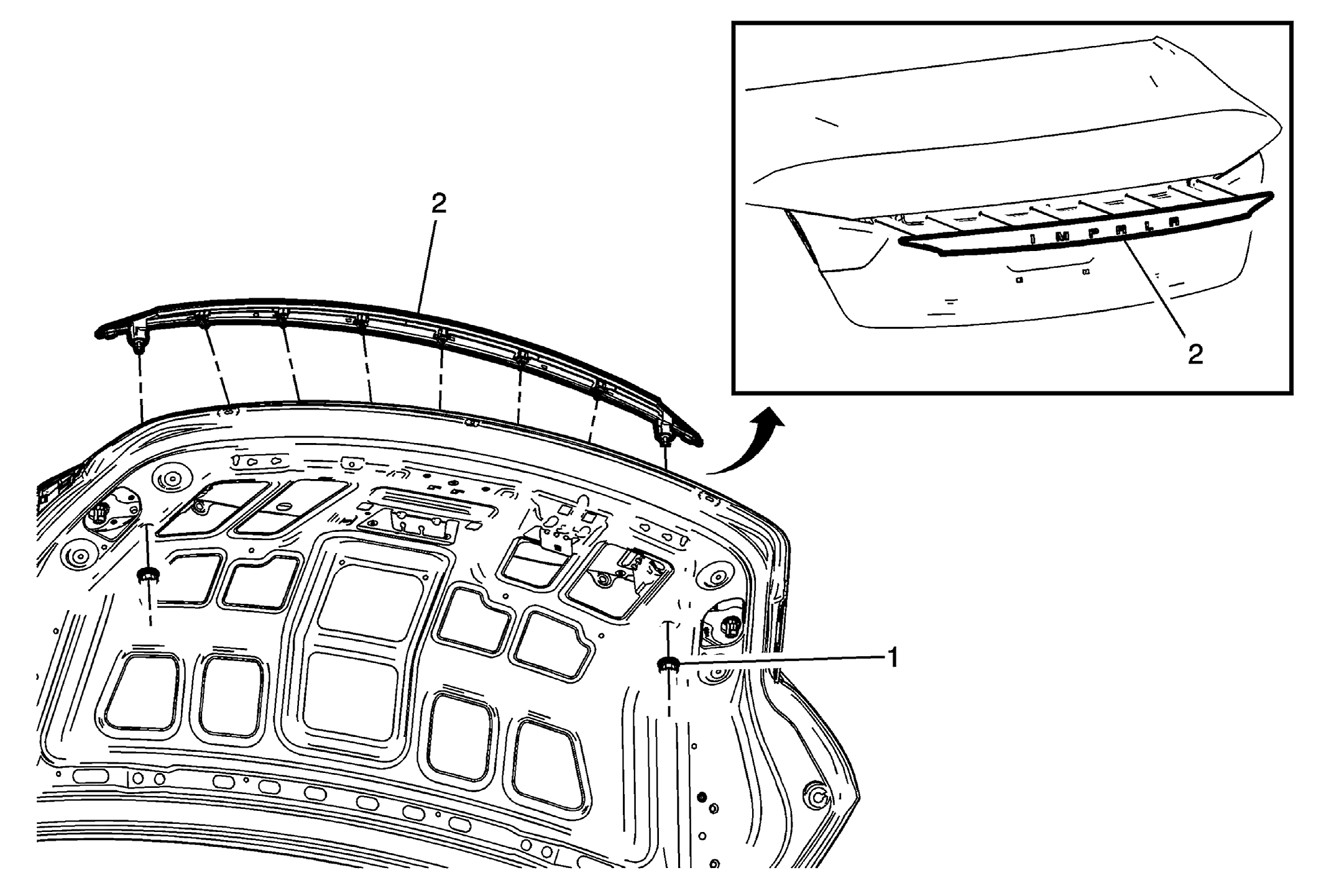

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left and right tail lamp - inboard. Refer to Tail Lamp Replacement - Inboard . |
|
| 1 | Rear Closure Center Applique Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Rear Closure Center Applique Procedure Starting from either end carefully pull rearward and using a trim-type release tool release the 6 rear closure center applique retainers from the rear compartment lid and remove. |
