Tail Lamp Replacement - Inboard

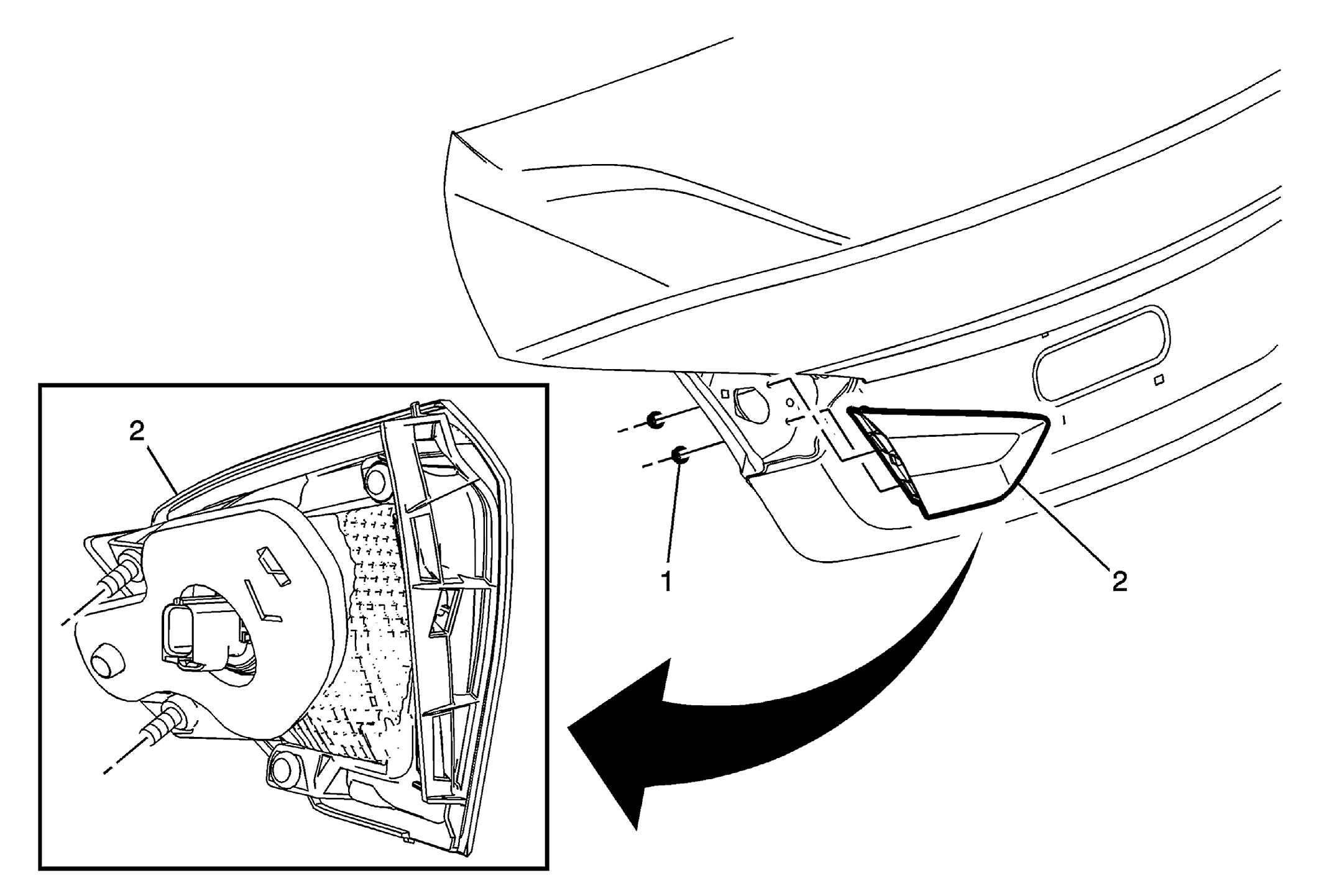

Fig 1: Tail Lamp - Inboard

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner trim panel. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Tail Lamp Nuts (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Tail Lamp (Inboard) Procedure Disconnect the electrical connector. Lift the inboard end of the tail lamp, rotate the tail lamp outward to disengage the outer edge of the tail lamp from the rear compartment lid.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner trim panel. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Tail Lamp Nuts (Qty: 2)

CAUTION:

Tail Lamp (Inboard)

Procedure

Disconnect the electrical connector.
Lift the inboard end of the tail lamp, rotate the tail lamp outward to disengage the outer edge of the tail lamp from the rear compartment lid.
