Instrument Cluster Replacement

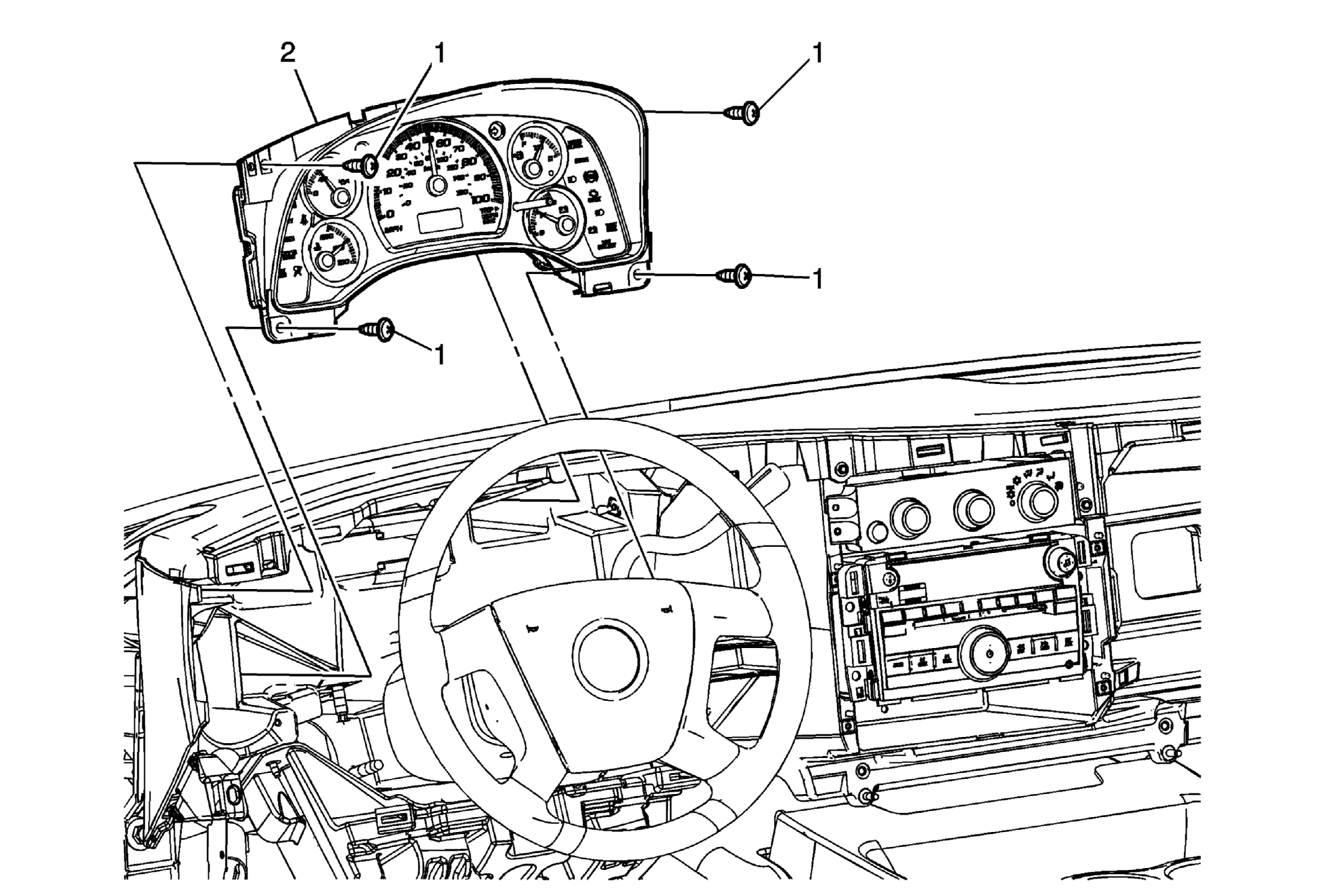

Fig 1: View Of Instrument Cluster

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove both drivers and passenger knee bolsters. Refer to Passenger Knee Bolster Replacement and Driver Knee Bolster Replacement .
Remove the cluster trim plate assembly. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .

Instrument Panel Cluster Screw (Qty: 4) ⁽¹⁾
Tighten

Torque Instrument Panel Cluster Screws to Specifications: 2 N.m (18 In. Lbs).

Instrument Panel Cluster Assembly

Procedure

Disconnect the electrical connections.
Refer to Control Module References for programming and set up procedures.

⁽¹⁾

Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Do not use paints, lubricants, or corrosion inhibitors on fasteners, or fastener joint surfaces, unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems. When using fasteners that are threaded directly into plastic, use extreme care not to strip the mating plastic part(s). Use hand tools only, and do not use any kind of impact or power tools. Fastener should be hand tightened, fully seated, and not stripped.
