Instrument Panel Cluster Trim Plate Bezel Replacement

Preliminary Procedures

1. Remove both drivers and passenger knee bolsters. Refer to Passenger Knee Bolster Replacement  and Driver Knee Bolster Replacement .
2. Remove the drivers knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement .
3. Remove the steering column nuts securing the steering column to the instrument panel carrier and lower the entire column to the floor and position out of the way. Refer to Steering Column Replacement .

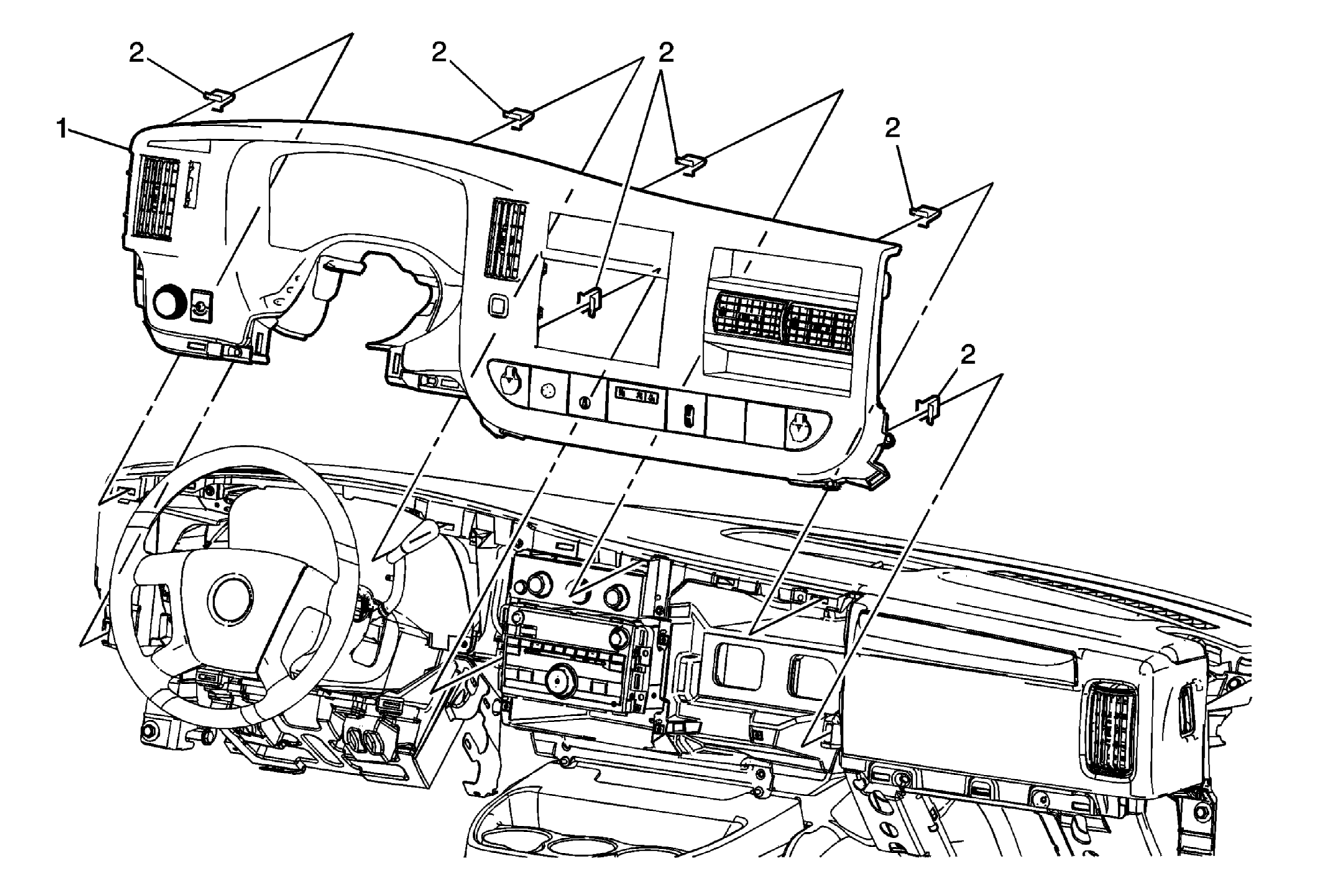

Procedure

1. Disconnect the electrical connections.
2. When replacing the cluster trim panel, transfer all necessary components.
