Instrument Panel Lower Trim Panel Replacement

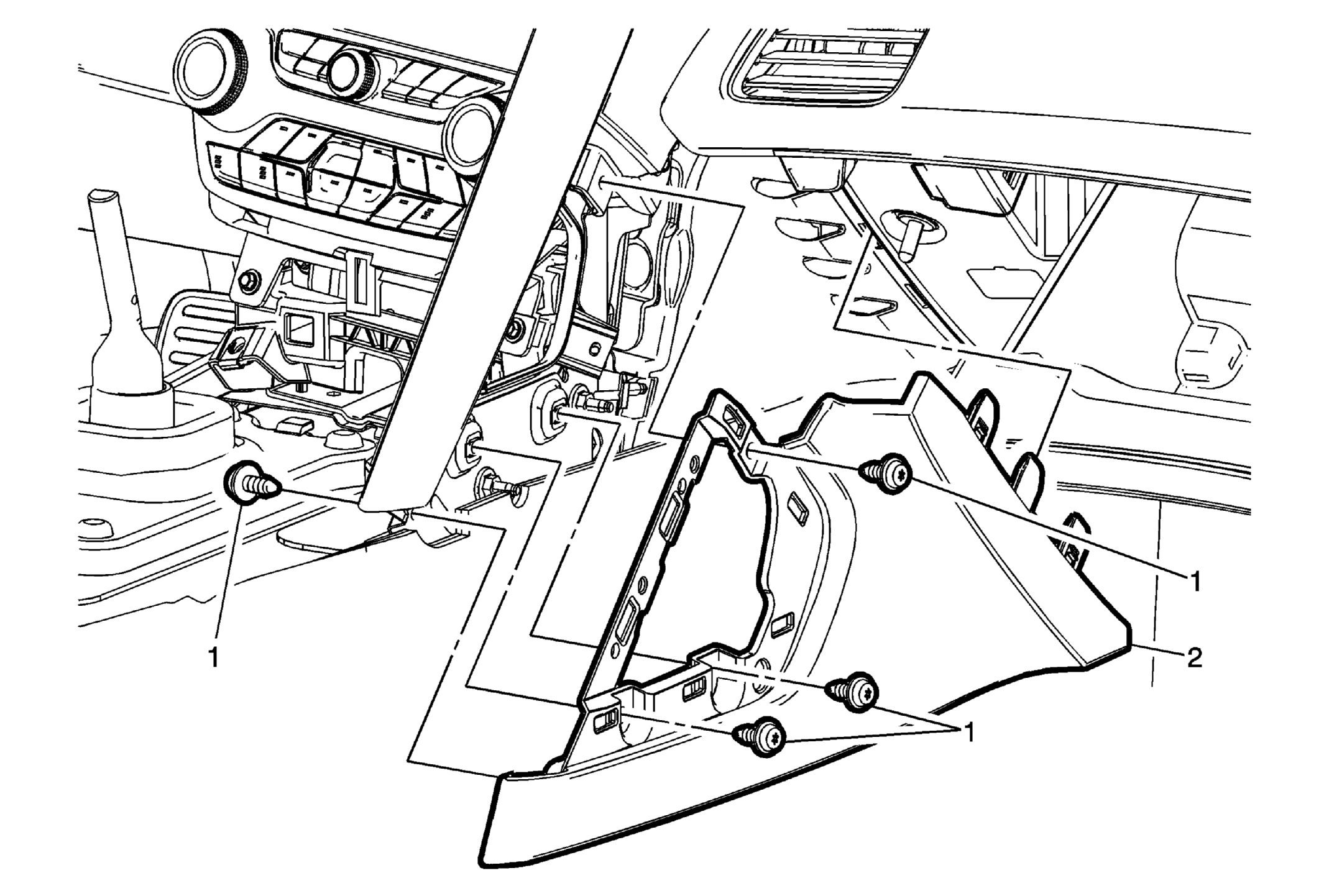

Fig 1: Instrument Panel Lower Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement . Remove the front floor lower console. Refer to Front Floor Lower Console Replacement .
1	Instrument Panel Lower Trim Panel Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 (22 lb in)
2	Instrument Panel Lower Trim Panel Procedure Use a flat bladed plastic trim tool in order to release the tabs securing the trim panel to the instrument panel compartment assembly.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
Remove the front floor lower console. Refer to Front Floor Lower Console Replacement .

Instrument Panel Lower Trim Panel Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 (22 lb in)

Instrument Panel Lower Trim Panel
Procedure
Use a flat bladed plastic trim tool in order to release the tabs securing the trim panel to the instrument panel compartment assembly.
