Instrument Panel Assist Handle Replacement
Instrument Panel Assist Handle Replacement

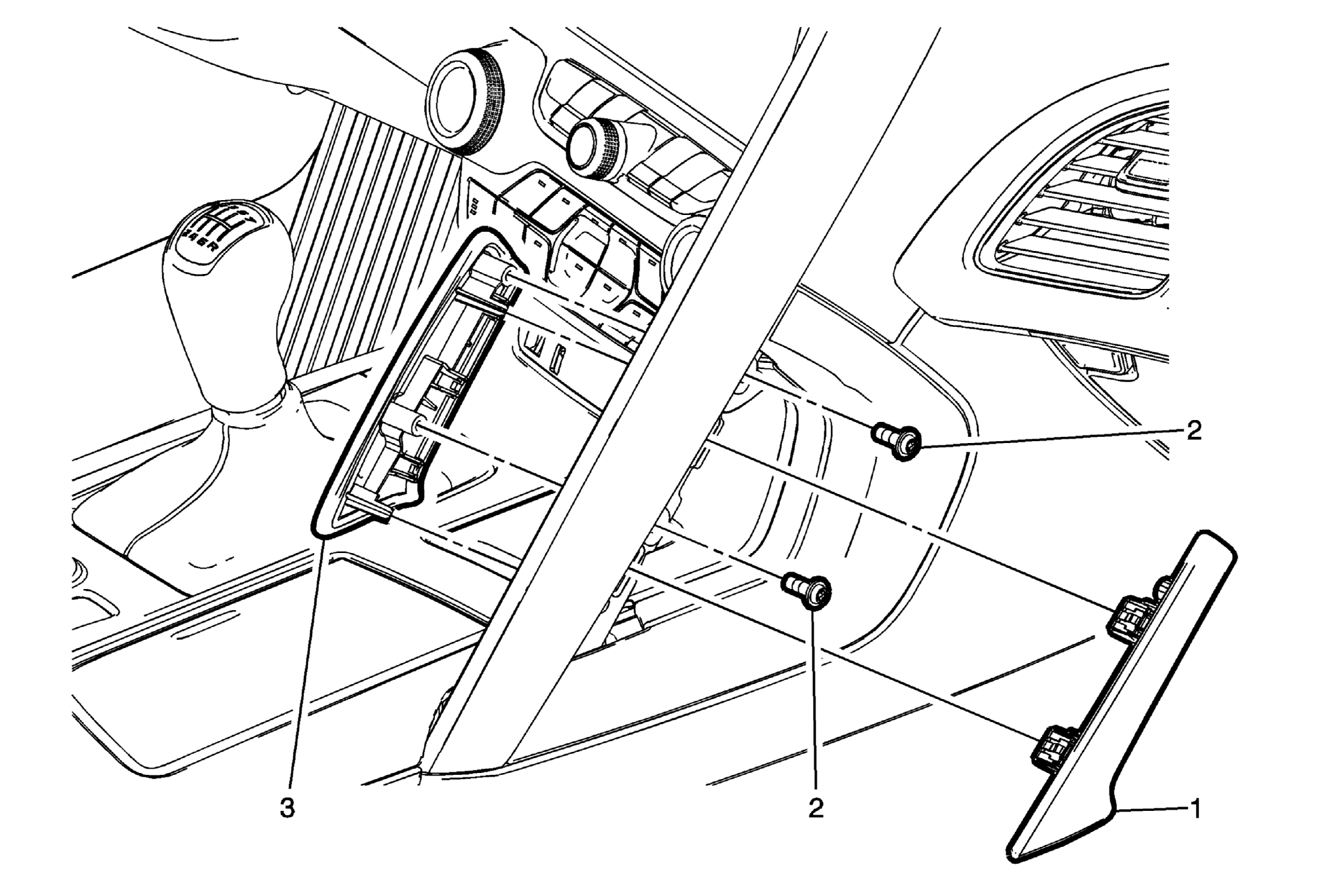

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Assist Handle - Right Procedure Use a flat bladed plastic trim tool in order to release the retainers securing the handle to the instrument panel assembly. |
| 2 | Instrument Panel Assist Handle Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 1.9 (17 lb in) |
| 3 | Instrument Panel Assist Handle - Left |
