Instrument Panel Compartment Door Release Switch Replacement

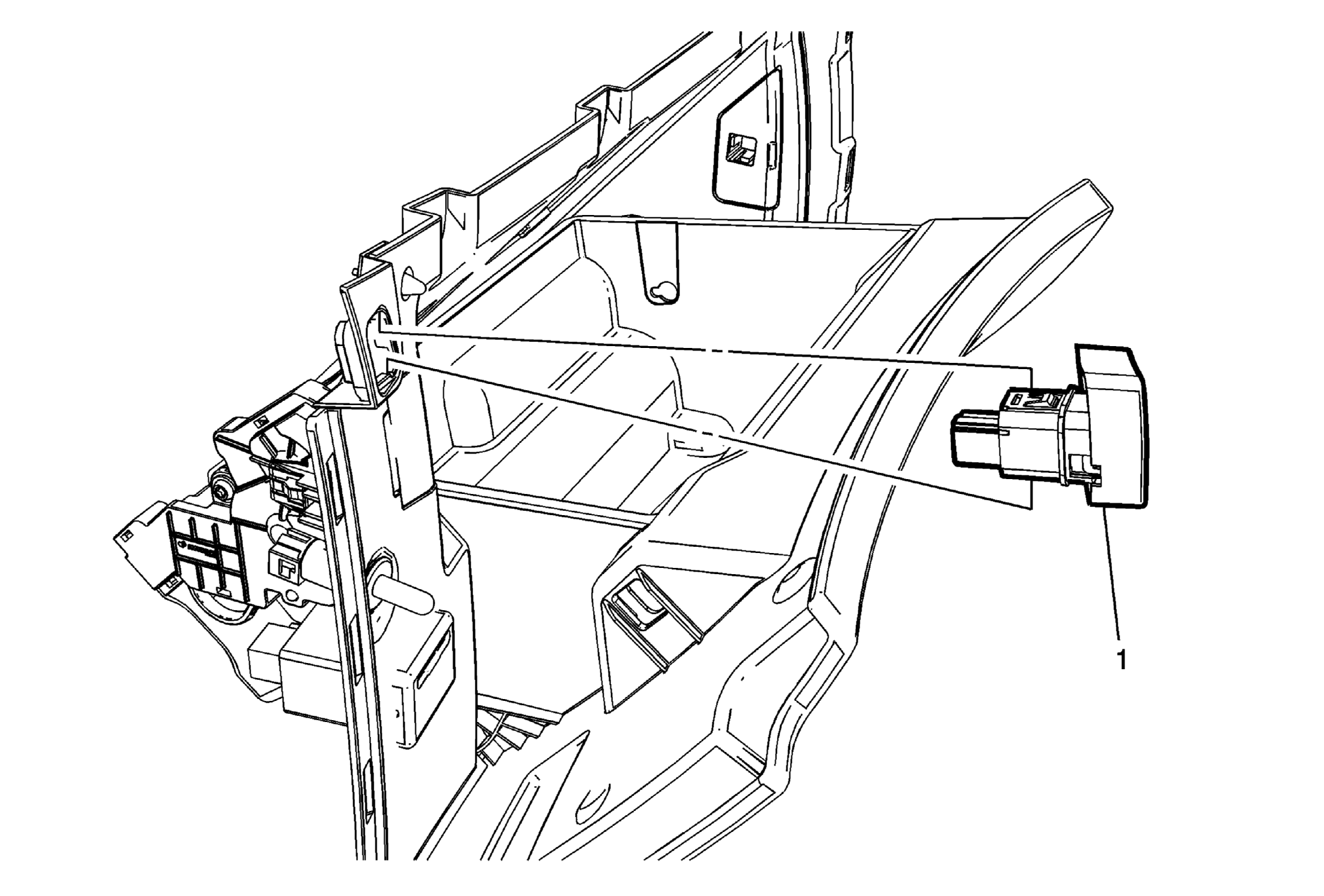

Fig 1: Instrument Panel Compartment Door Release Switch
GM3358791Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Door Release Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1 Instrument Panel Compartment Door Release Switch

Procedure

  1. Disconnect the electrical connector.
  2. Depress the tabs on the release switch to remove.
