Instrument Cluster Replacement

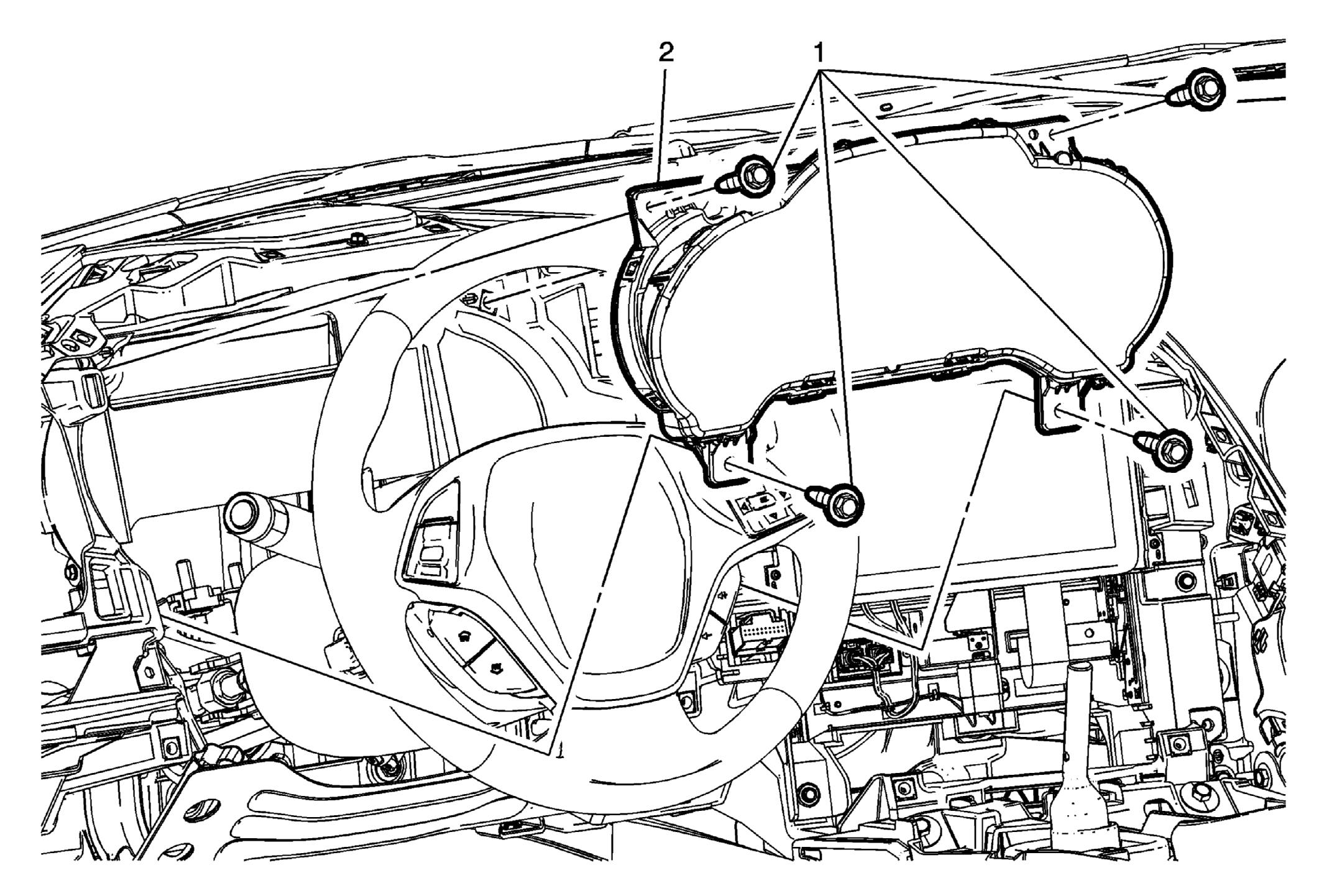

Fig 1: Instrument Cluster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement .
1	Instrument Cluster Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 (22 lb in)
2	Instrument Cluster Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement .

Instrument Cluster Bolt (Qty: 4)

CAUTION:

Tighten
2.5 (22 lb in)

Instrument Cluster

Procedure
