Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Sealant Application Locations On Block Pan Rail & Crankshaft Rear Oil Seal Housing

Courtesy of GENERAL MOTORS COMPANY

Place a 3 mm (0 in) Bead of RTV Sealant on the block pan rail and the crankshaft rear oil seal housing (1). Adhesives, Fluids, Lubricants, and Sealers

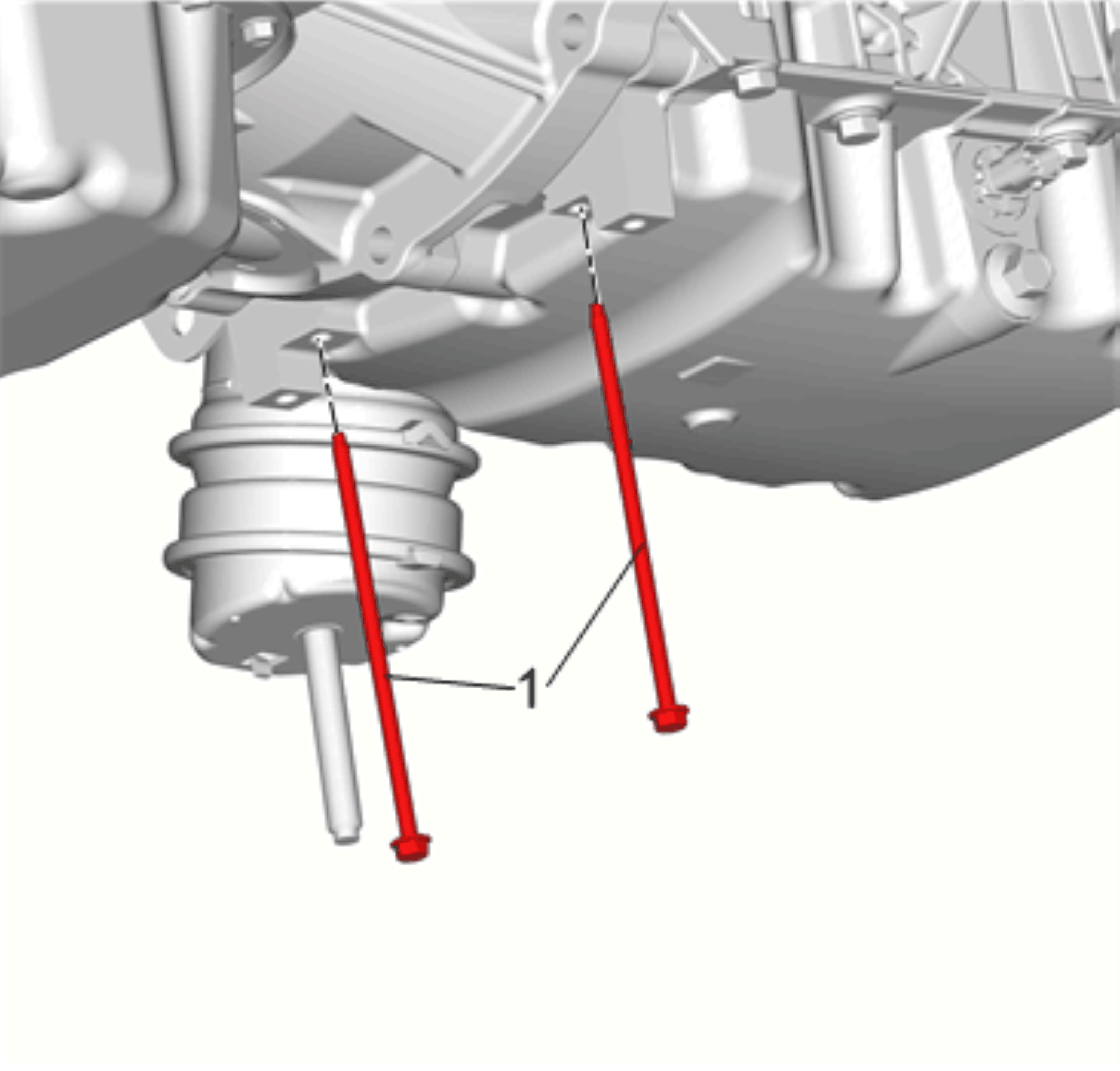

Fig 2: Engine Oil Pan

Courtesy of GENERAL MOTORS COMPANY

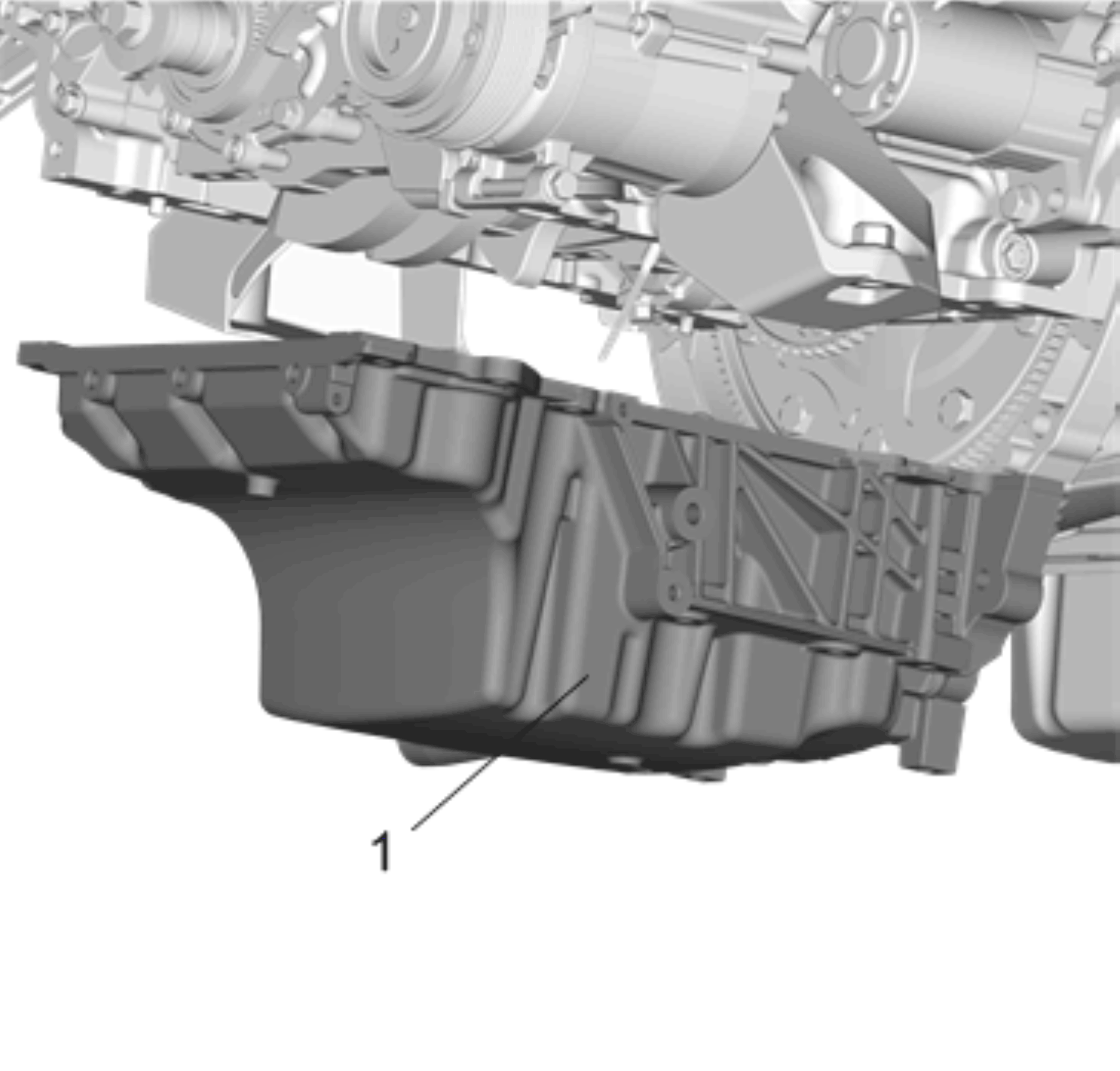

Fig 3: Engine Oil Pan

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Tighten the bolts by hand.

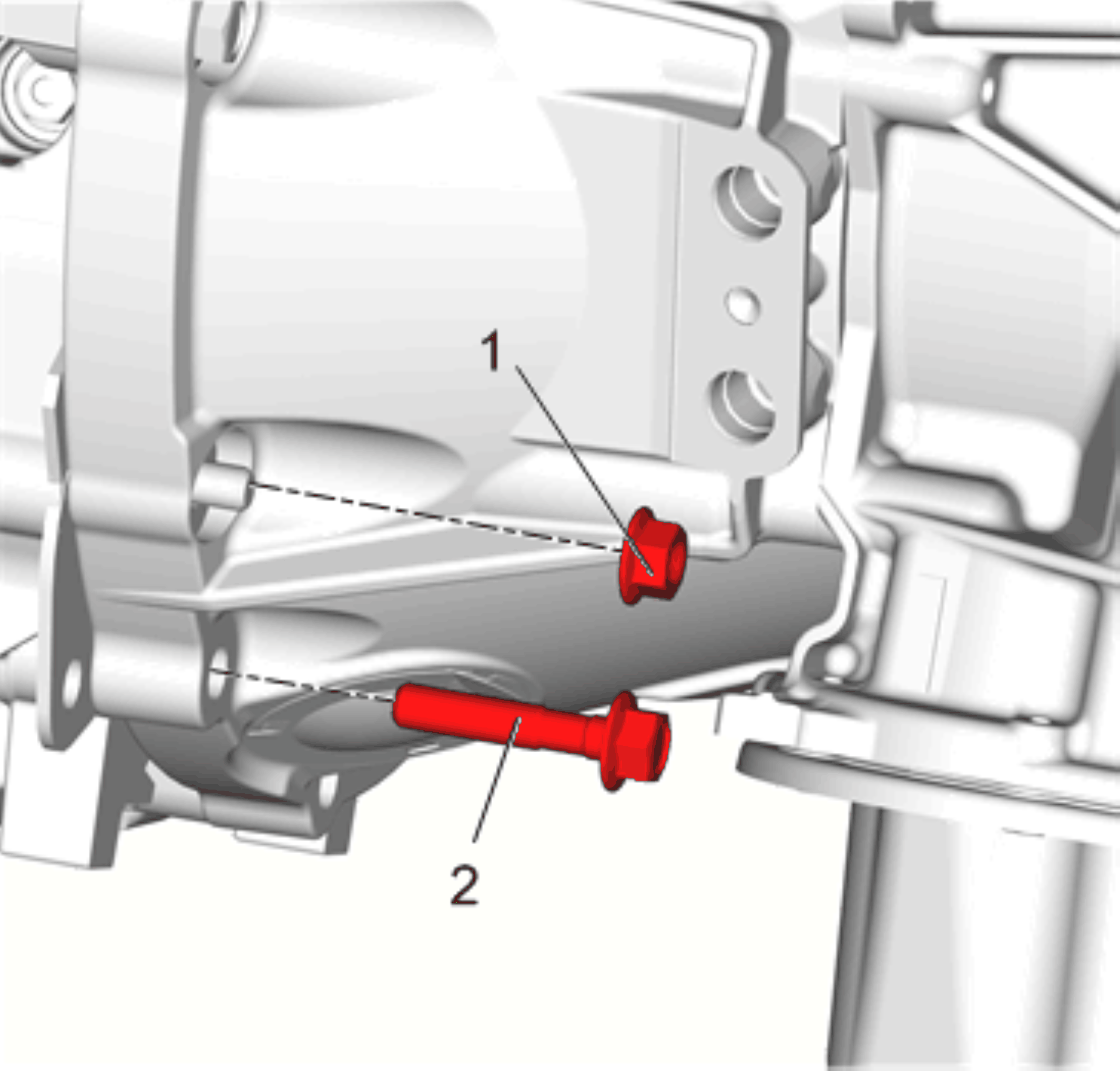

Fig 4: Engine Oil Pan

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Tighten the bolts by hand.

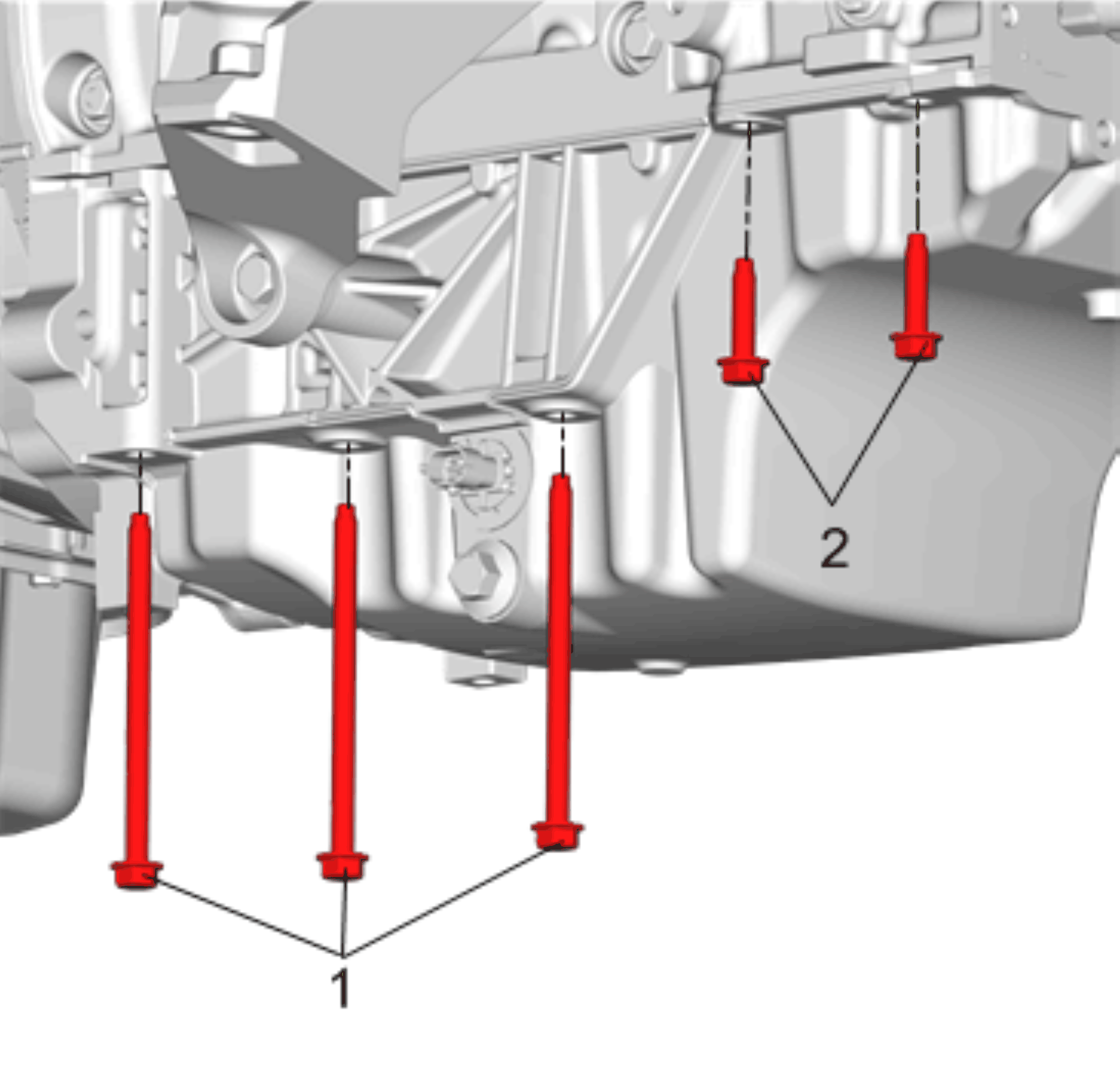

Fig 5: Engine Oil Pan

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Tighten the bolts by hand.

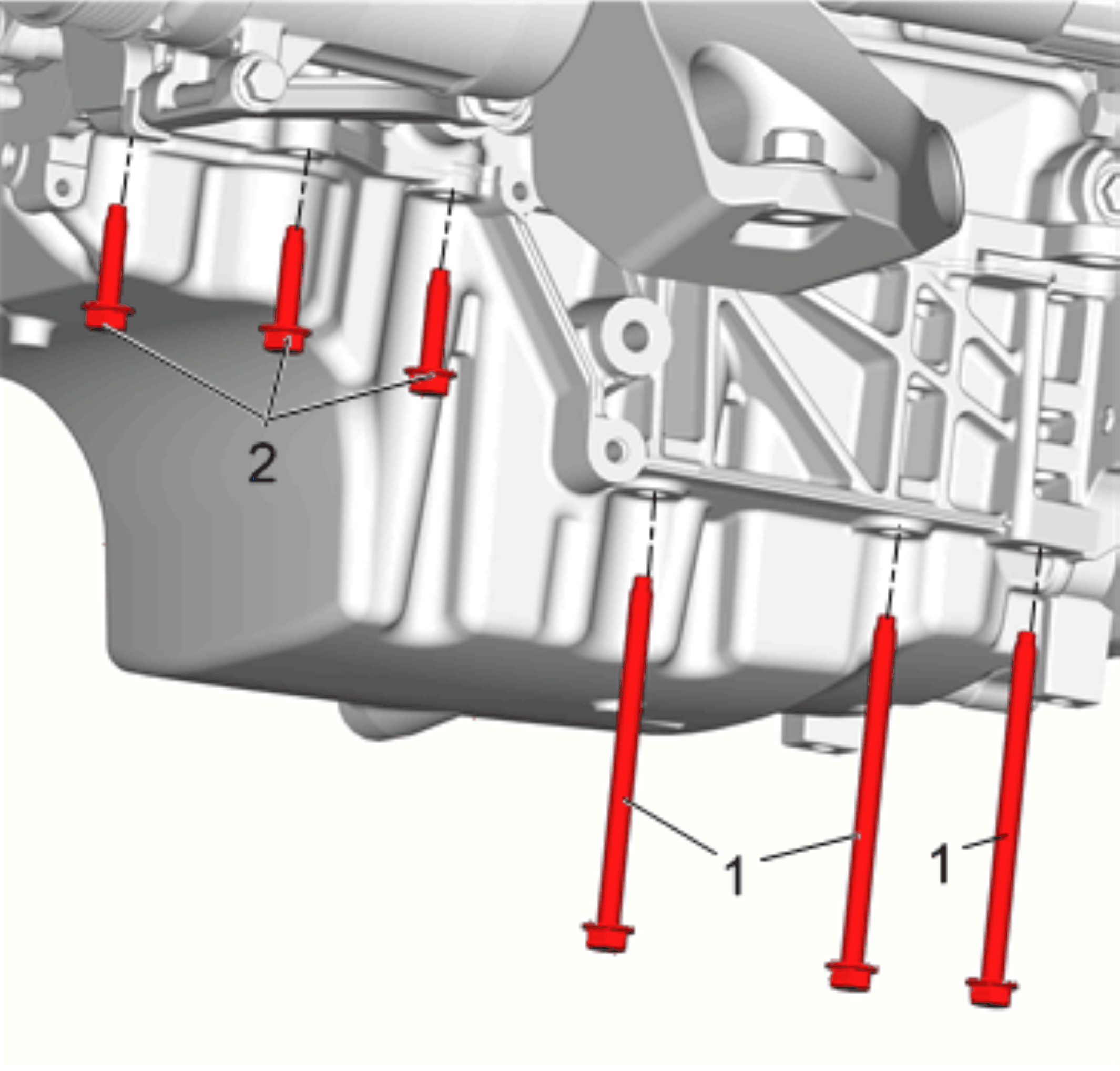

Fig 6: Engine Oil Pan

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Tighten the bolts by hand.

Fig 7: Engine Oil Pan

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Tighten the bolts by hand.

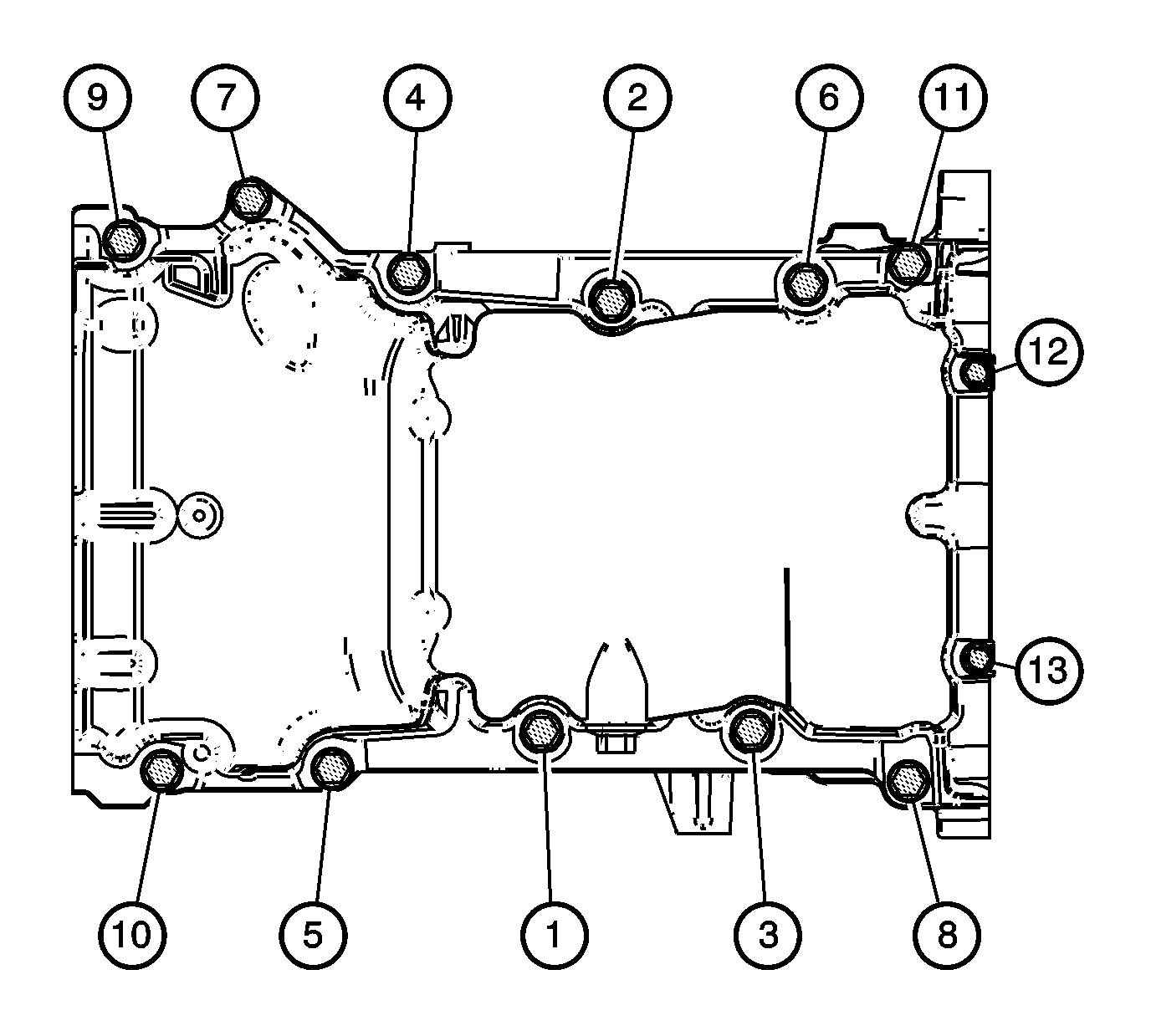

Fig 8: Oil Pan Bolt Tightening Sequence

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Tighten the oil pan bolts in sequence.
Tighten

The 8 mm bolts to 23 N.m (17 lb ft).

The 6 mm bolts to 10 N.m (89 lb in).

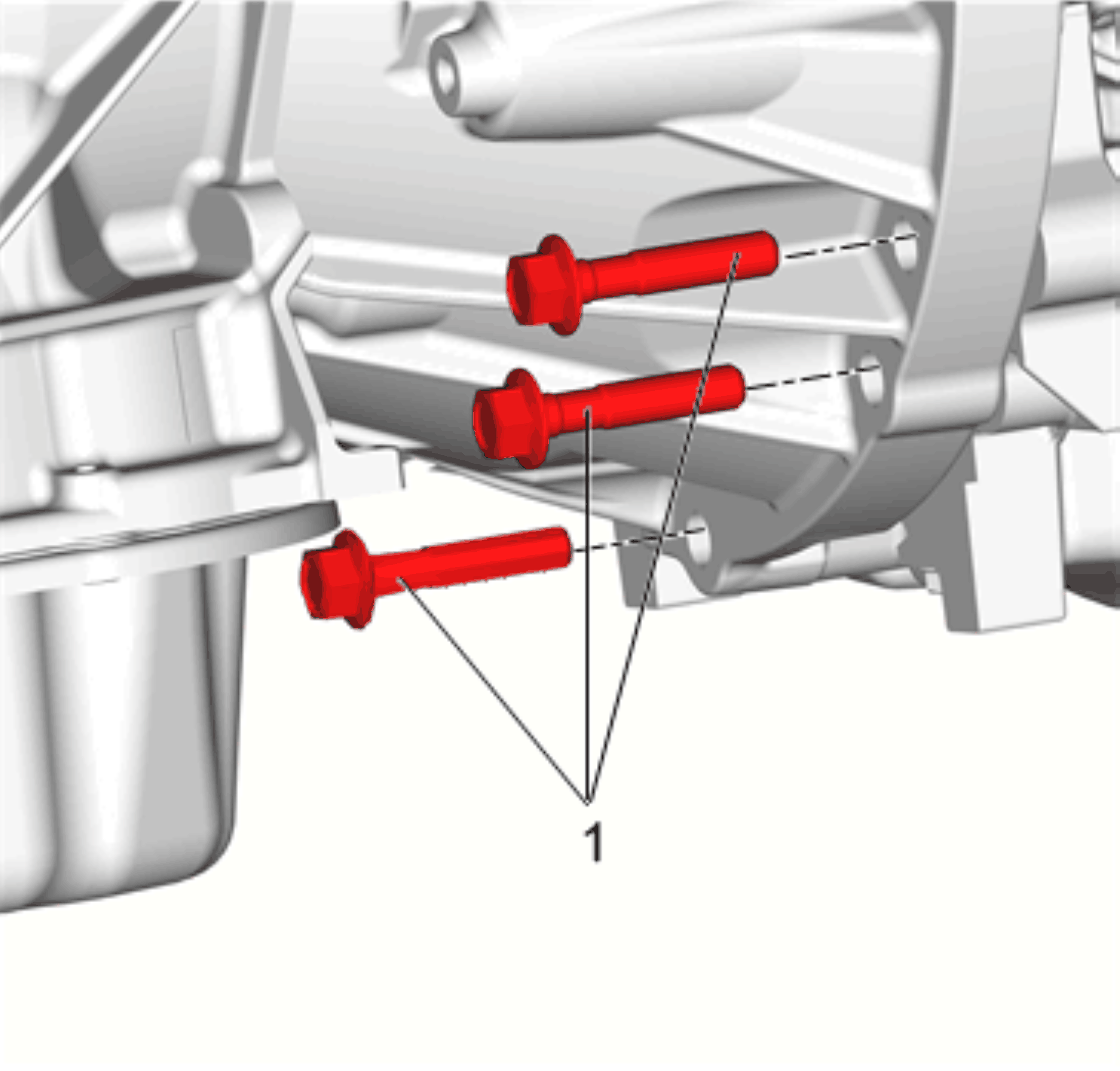

Install the oil pan to transmission fasteners.
Tighten

50 N.m (37 lb ft)
Engine Mount Bracket Replacement - Right Side Install
Drivetrain and Front Suspension Frame Replacement Install
Engine Front Cover Replacement Install
Inspect and fill the engine oil to the proper level. Engine Oil and Oil Filter Replacement
