Engine Mount Bracket Replacement - Right Side
WARNING: This page is about a different variant/trim than selected.

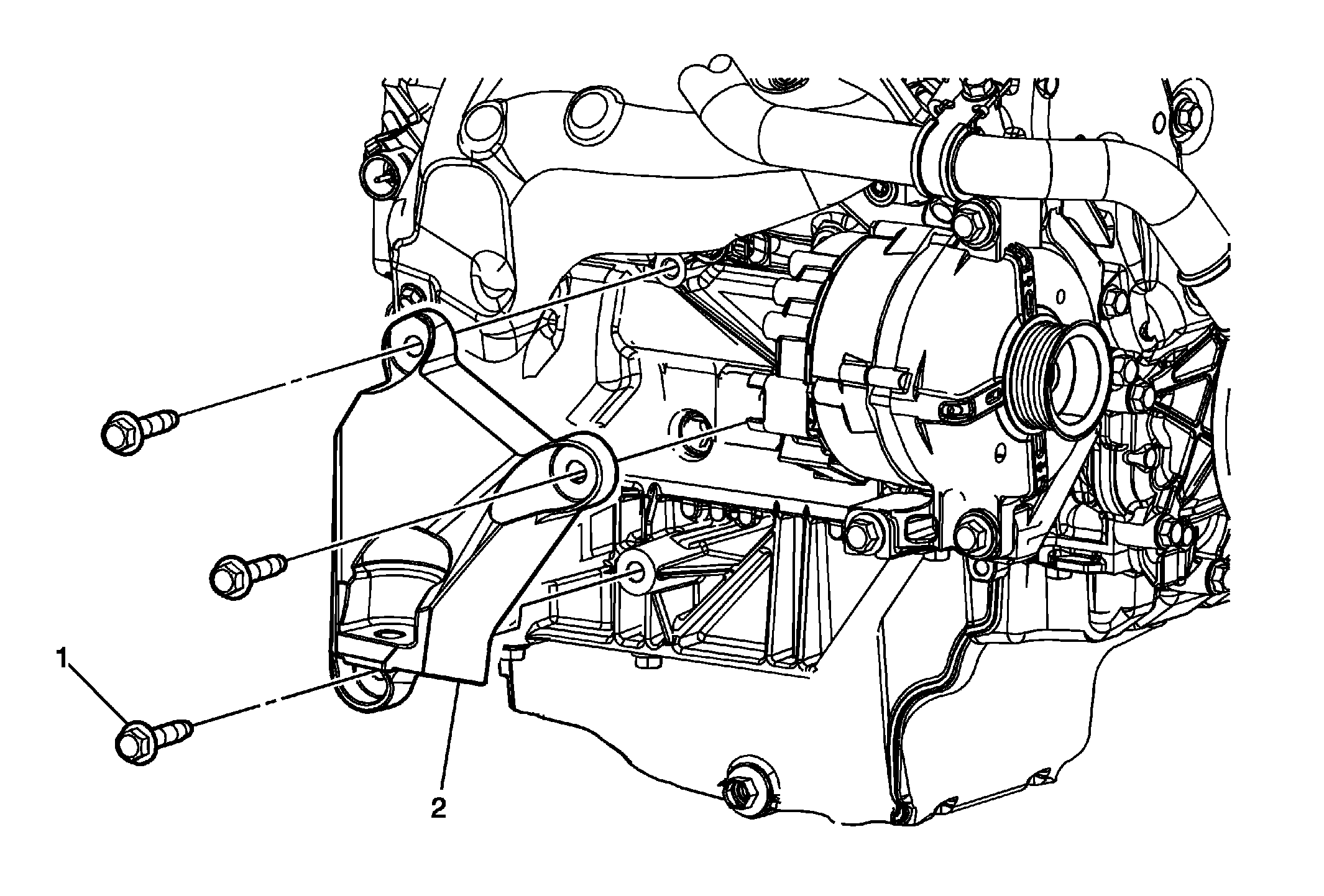

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine mount. Refer to Engine Mount Replacement - Right Side . |
|
| 1 | Engine Mount Bracket Fastener (Qty:4)
CAUTION:
Refer to Fastener Caution . Tighten 60 N.m (44 lb ft) |
| 2 | Engine Mount Bracket Procedure Transfer components as necessary. |
