Installation Procedure

WARNING: This page is about a different variant/trim than selected.

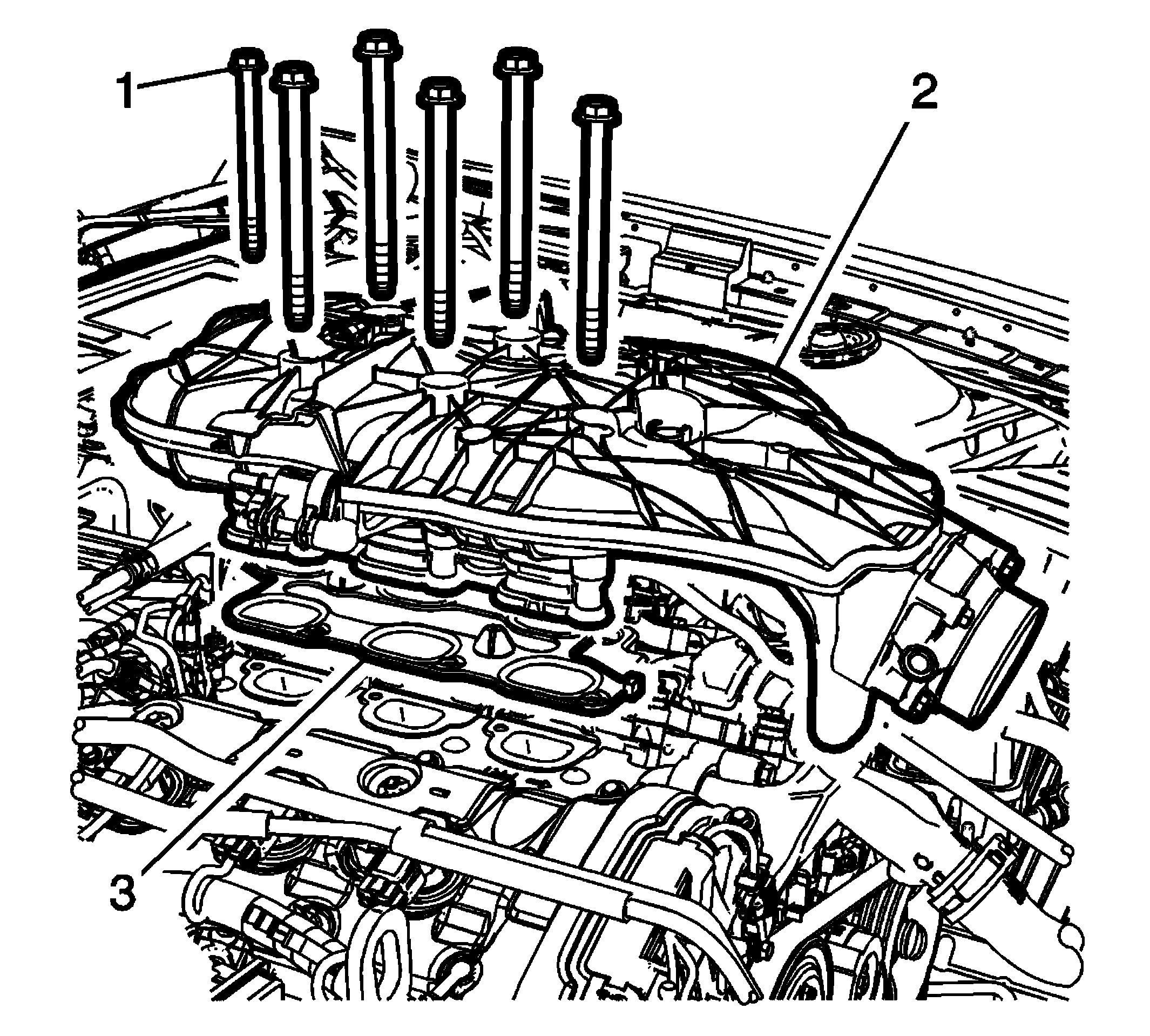

    Fig 1: Intake Manifold, Bolts & Gasket
    GM2667626Courtesy of GENERAL MOTORS COMPANY
  1. If installing a new intake manifold, assemble the intake manifold. Refer to Intake Manifold Assemble .
  2. Install the NEW intake manifold gasket (3).
  3. Position the intake manifold (2) and hand start the manifold bolts (1).

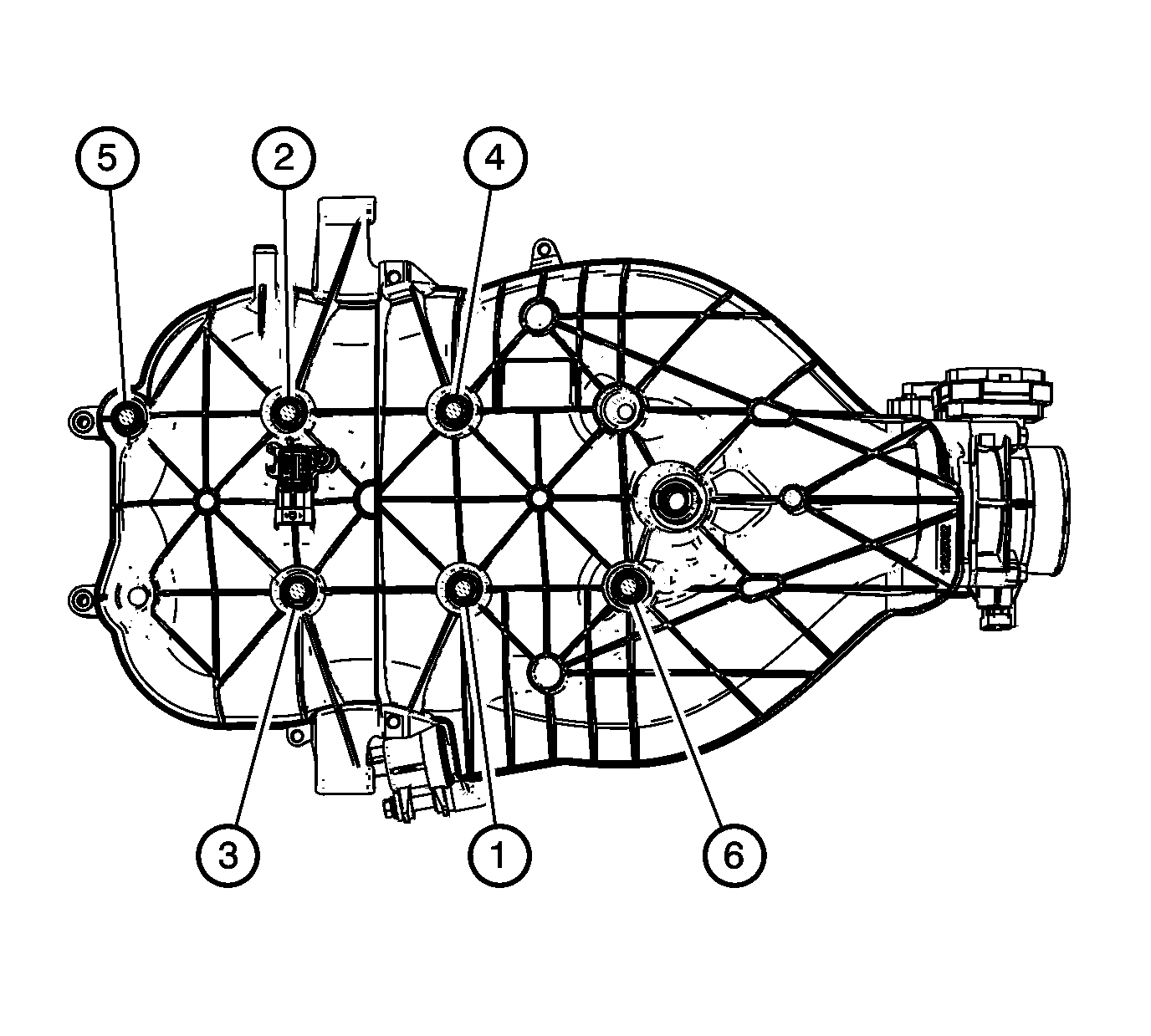

    4. Fig 2: Identifying Intake Manifold Bolt Tighten Sequence
    GM2219481Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Tighten the intake manifold bolts in the sequence shown to 25 N.m (18 lb ft).
  5. Tighten the intake manifold bolts a second pass in sequence to 25 N.m (18 lb ft).

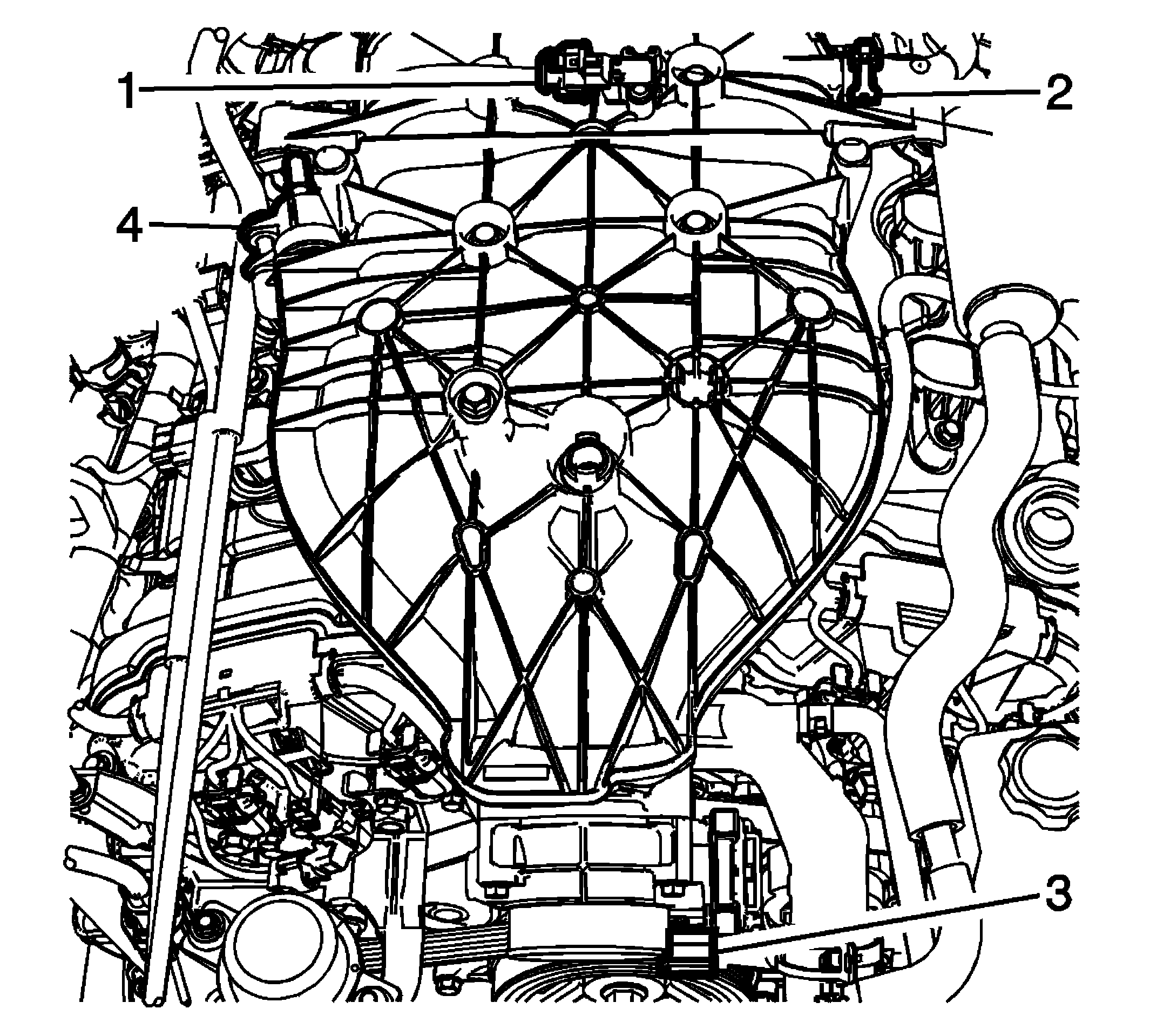

    6. Fig 3: Map Sensor Connector, Brake Booster Vacuum Hose, Throttle Body Electrical Connector & Purge Solenoid
    GM2667600Courtesy of GENERAL MOTORS COMPANY
  6. Connect the brake booster vacuum hose (2) to the intake manifold.
  7. Connect electrical connector and hose from the purge solenoid (4)
  8. Connect the throttle body electrical connector (3).
  9. Connect the map sensor connector (1).

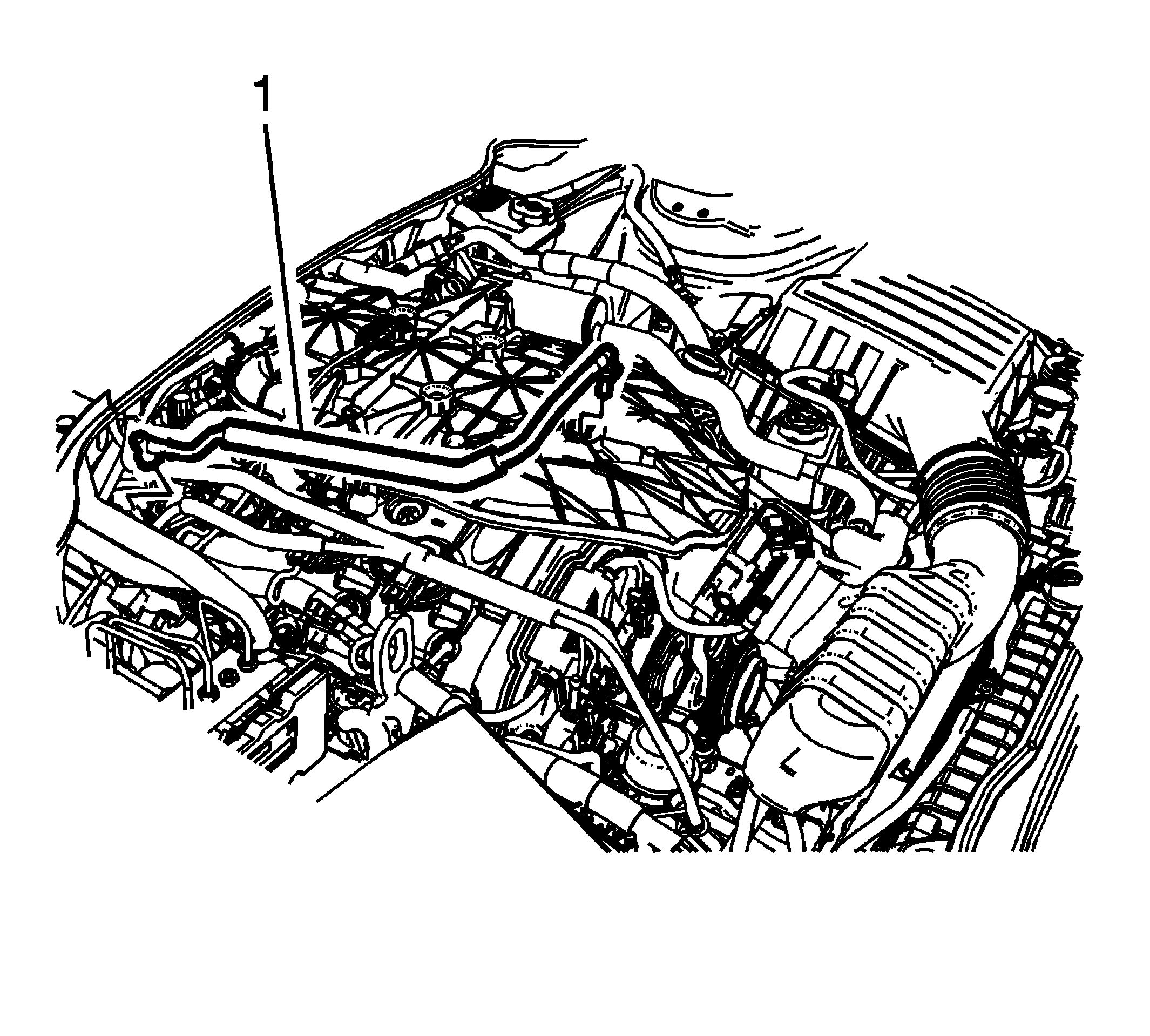

    10. Fig 4: PCV Dirty Air Tube
    GM2667575Courtesy of GENERAL MOTORS COMPANY
  10. Install the PCV dirty air tube (1) to the right camshaft cover.
  11. Install the PCV dirty air tube (1) to the intake manifold.
  12. Install the air outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

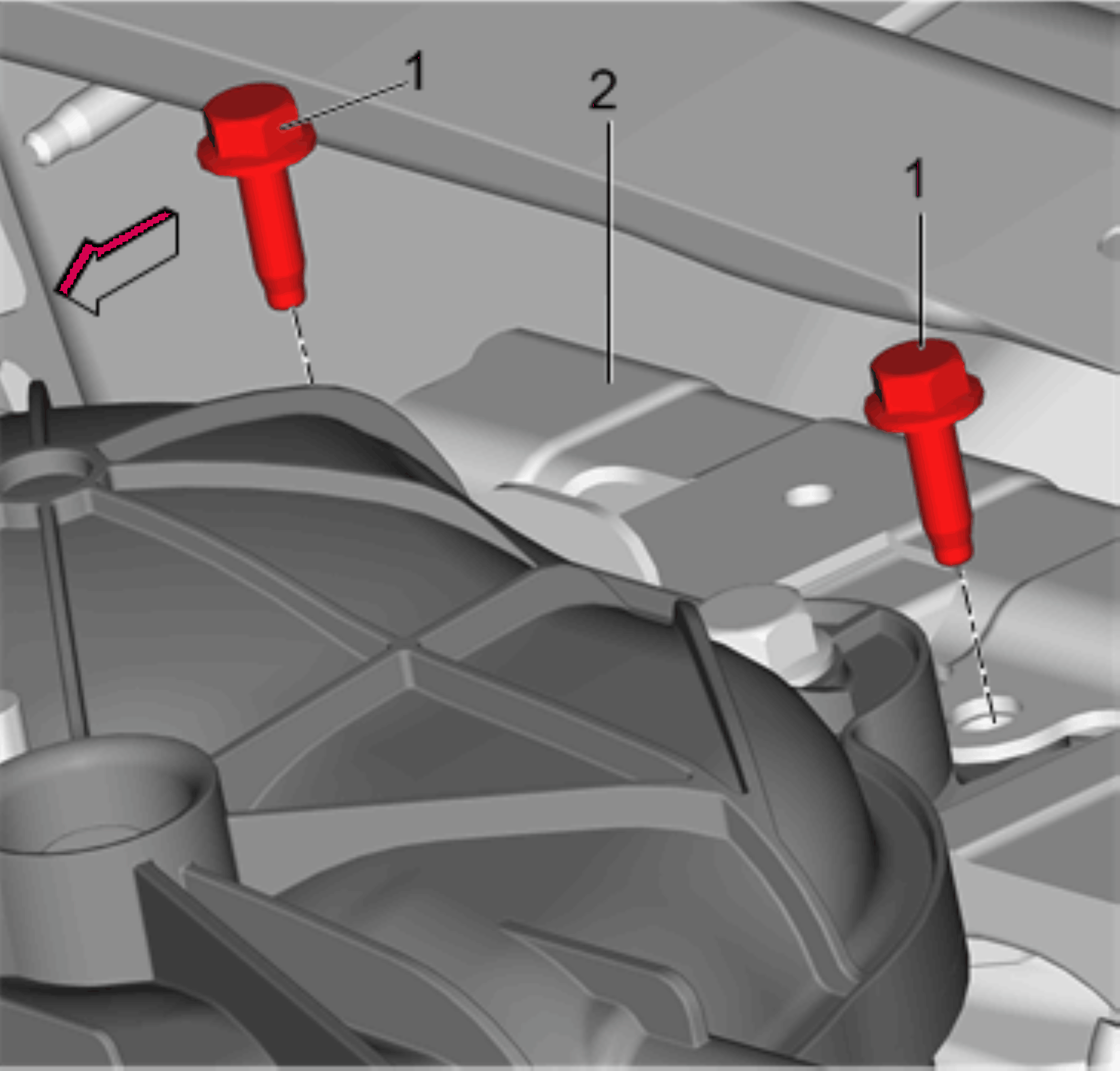

    13. Fig 5: Fuel Pipe Shield
    GM3961985Courtesy of GENERAL MOTORS COMPANY
  13. Install the fuel pipe shield (2) to intake manifold bolts (1) and tighten to 10 N.m (89 lb in).

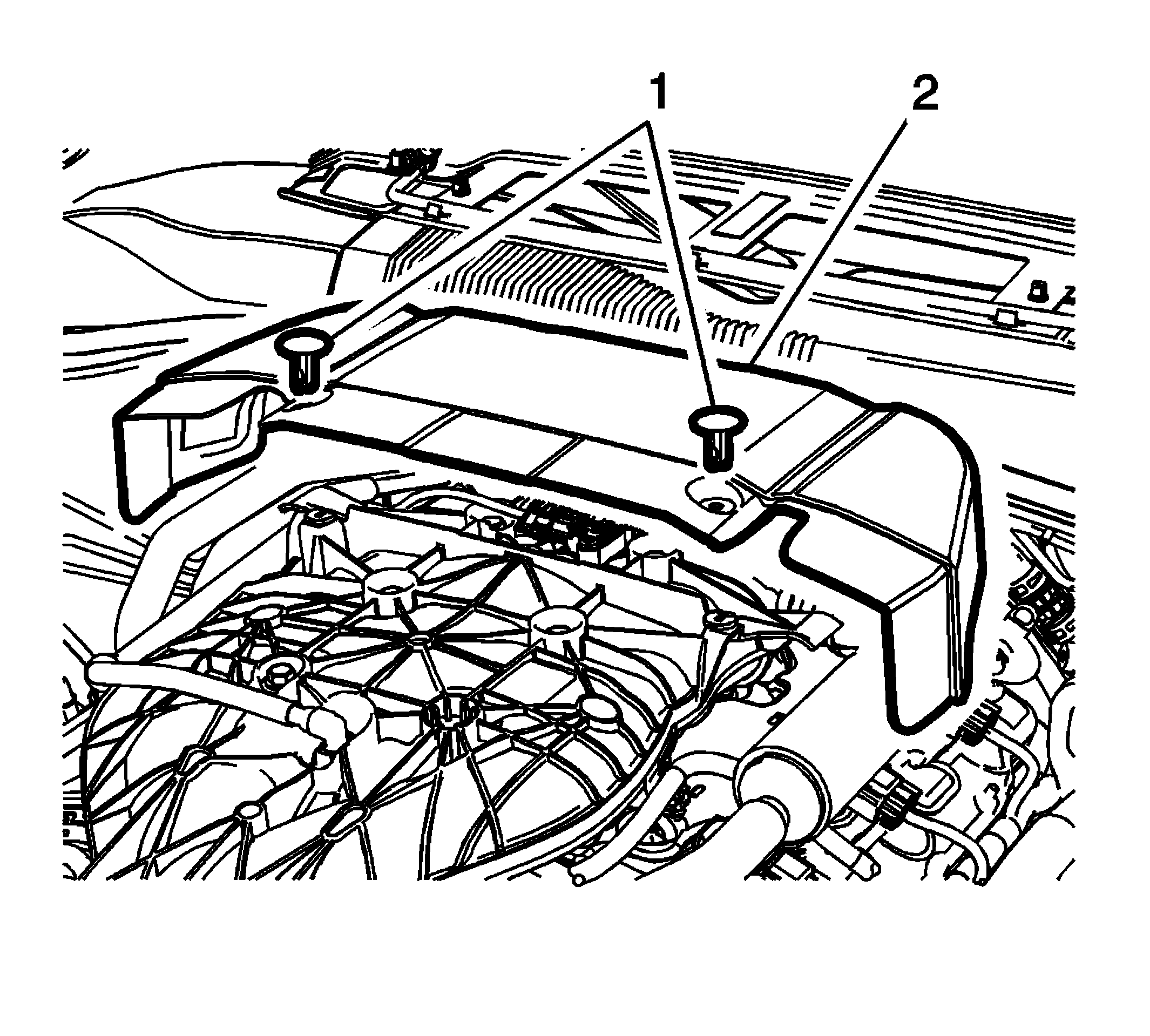

    14. Fig 6: Intake Manifold Cover & Retainers
    GM2667617Courtesy of GENERAL MOTORS COMPANY
  14. Install the rear intake manifold cover (2).
  15. Install the rear intake manifold cover retainers (1).

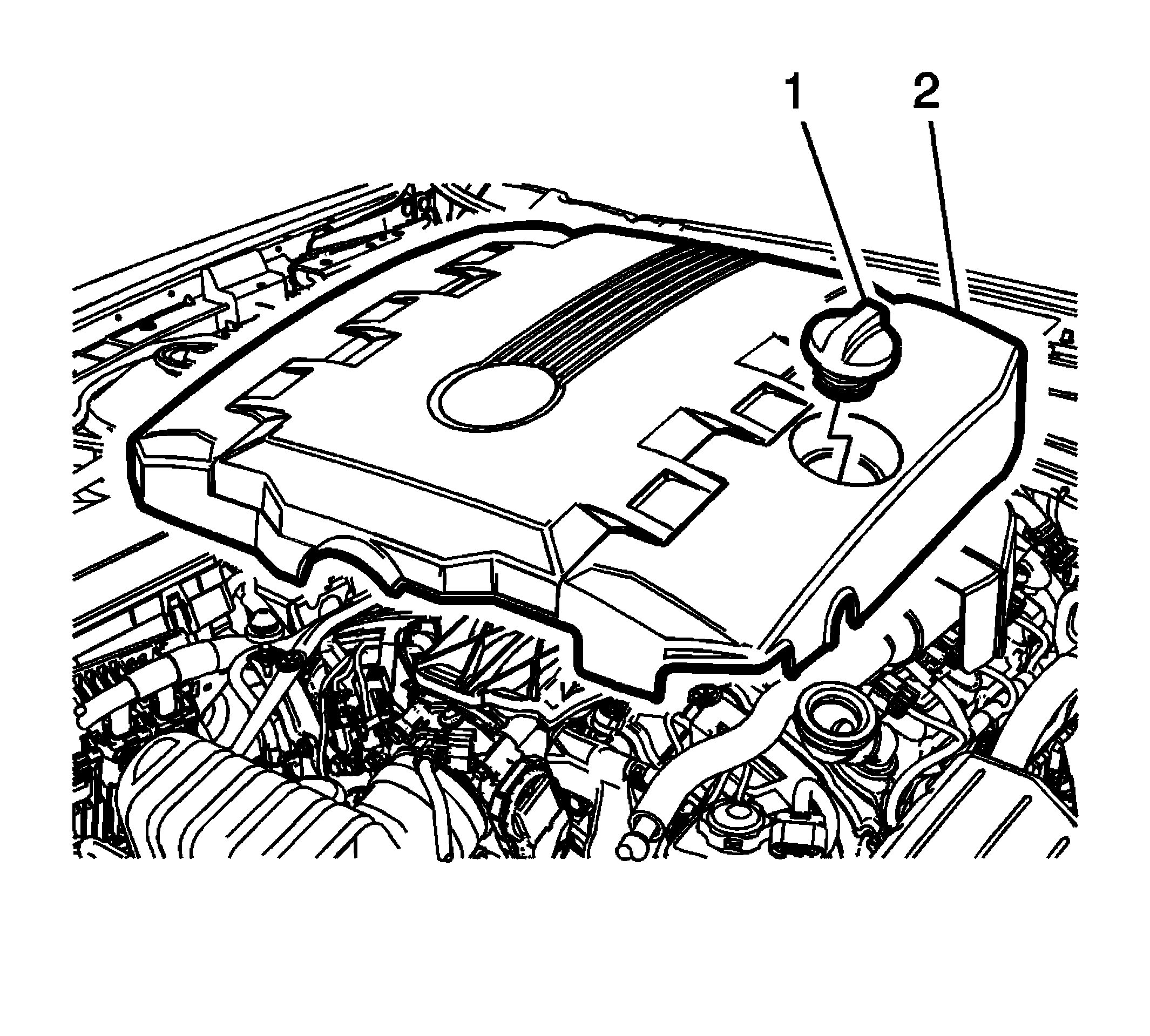

    16. Fig 7: Intake Manifold Cover & Cap
    GM2667623Courtesy of GENERAL MOTORS COMPANY
  16. Install the intake manifold cover (2). Refer to Intake Manifold Cover Replacement - Front .
