Drive Belt Tensioner Replacement

WARNING: This page is about a different variant/trim than selected.

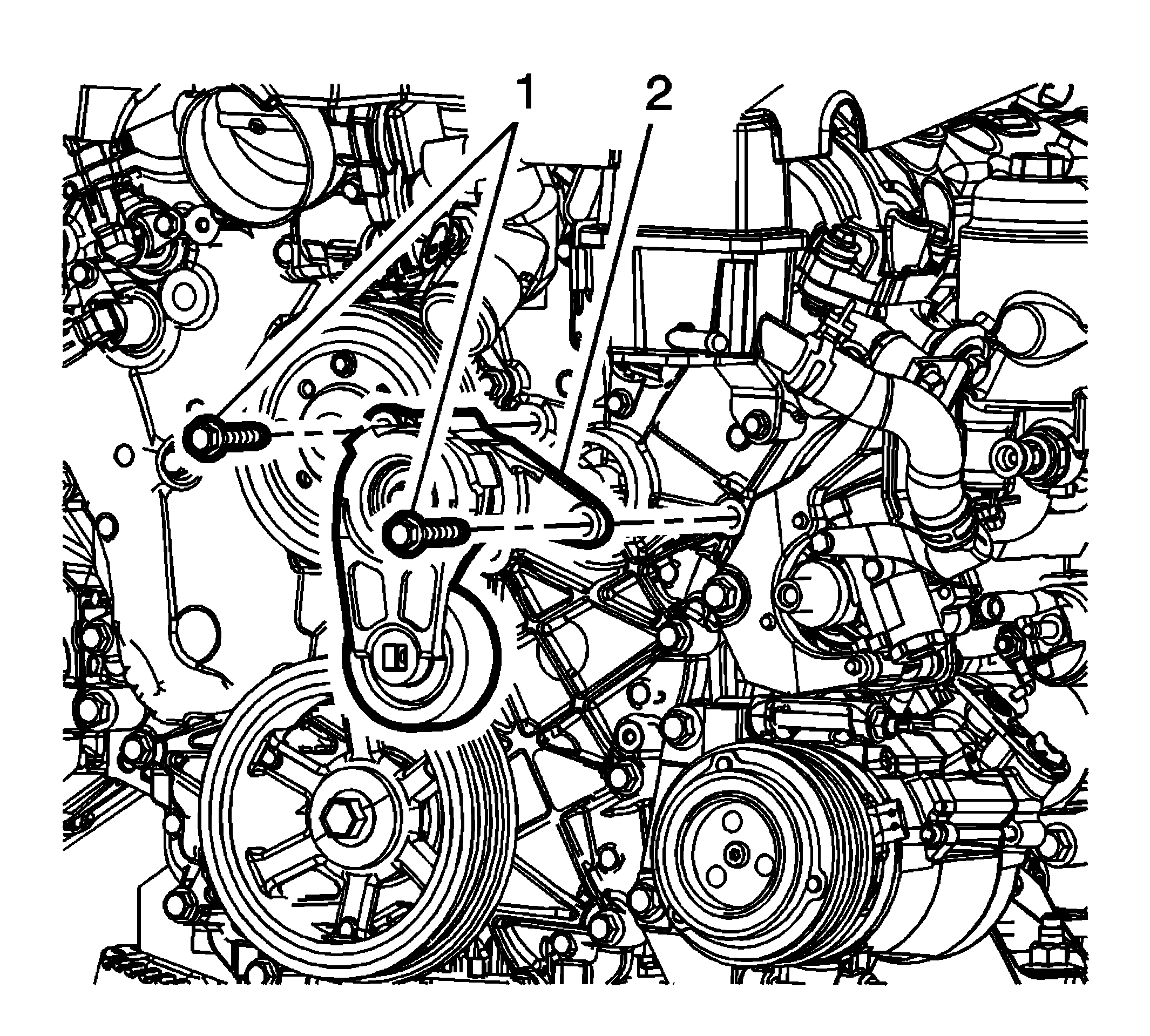

Fig 1: Drive Belt Tensioner & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the drive belt. Refer to Drive Belt Replacement . Remove the power steering pump pulley. Refer to Power Steering Pump Pulley Replacement (V6) .
1	Drive Belt Tensioner Fasteners CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Drive Belt Tensioner

Callout

Component Name

Preliminary Procedure

Remove the drive belt. Refer to Drive Belt Replacement .
Remove the power steering pump pulley. Refer to Power Steering Pump Pulley Replacement (V6) .

Drive Belt Tensioner Fasteners

CAUTION:

Tighten
25 N.m (18 lb ft)

Drive Belt Tensioner
