Drive Belt Replacement

WARNING: This page is about a different variant/trim than selected.

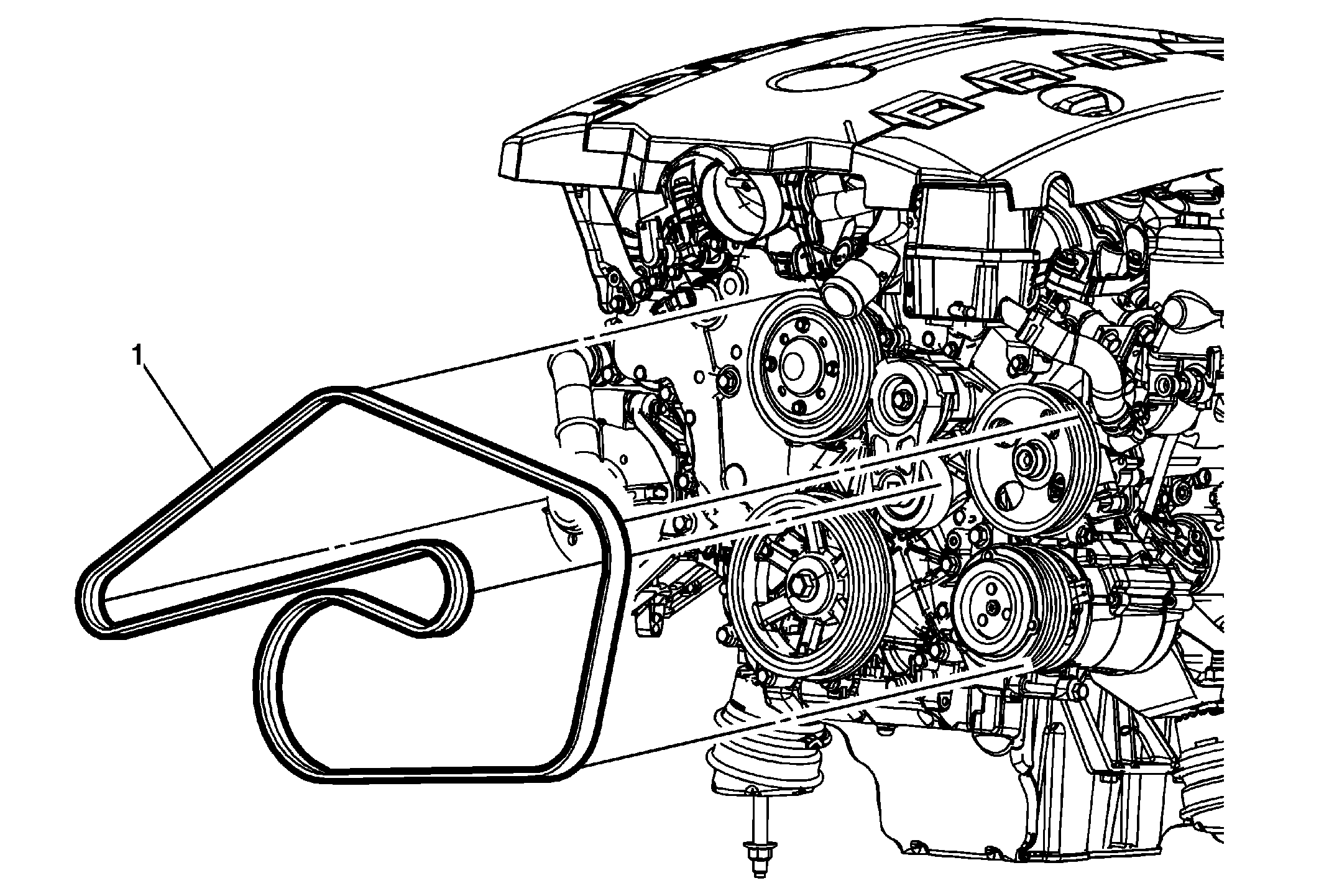

Fig 1: Drive Belt Routing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct , if necessary. Refer to Air Cleaner Outlet Duct Replacement .
1	Drive Belt Procedure Use a breaker bar to rotate the drive belt tensioner. Remove the drive belt from the pulleys and tensioner Clean and inspect the drive belt surfaces of all the pulleys. Inspect the drive belt for correct alignment.

Callout

Component Name

Preliminary Procedure
Remove the air cleaner outlet duct , if necessary. Refer to Air Cleaner Outlet Duct Replacement .

Drive Belt

Procedure
