Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. If equipped with an automatic transmission, remove the flex plate. Refer to Automatic Transmission Flex Plate Replacement .
  2. If equipped with a manual transmission, remove the flywheel. Refer to Engine Flywheel Replacement
  3. Remove the oil pan. Refer to Oil Pan Replacement .

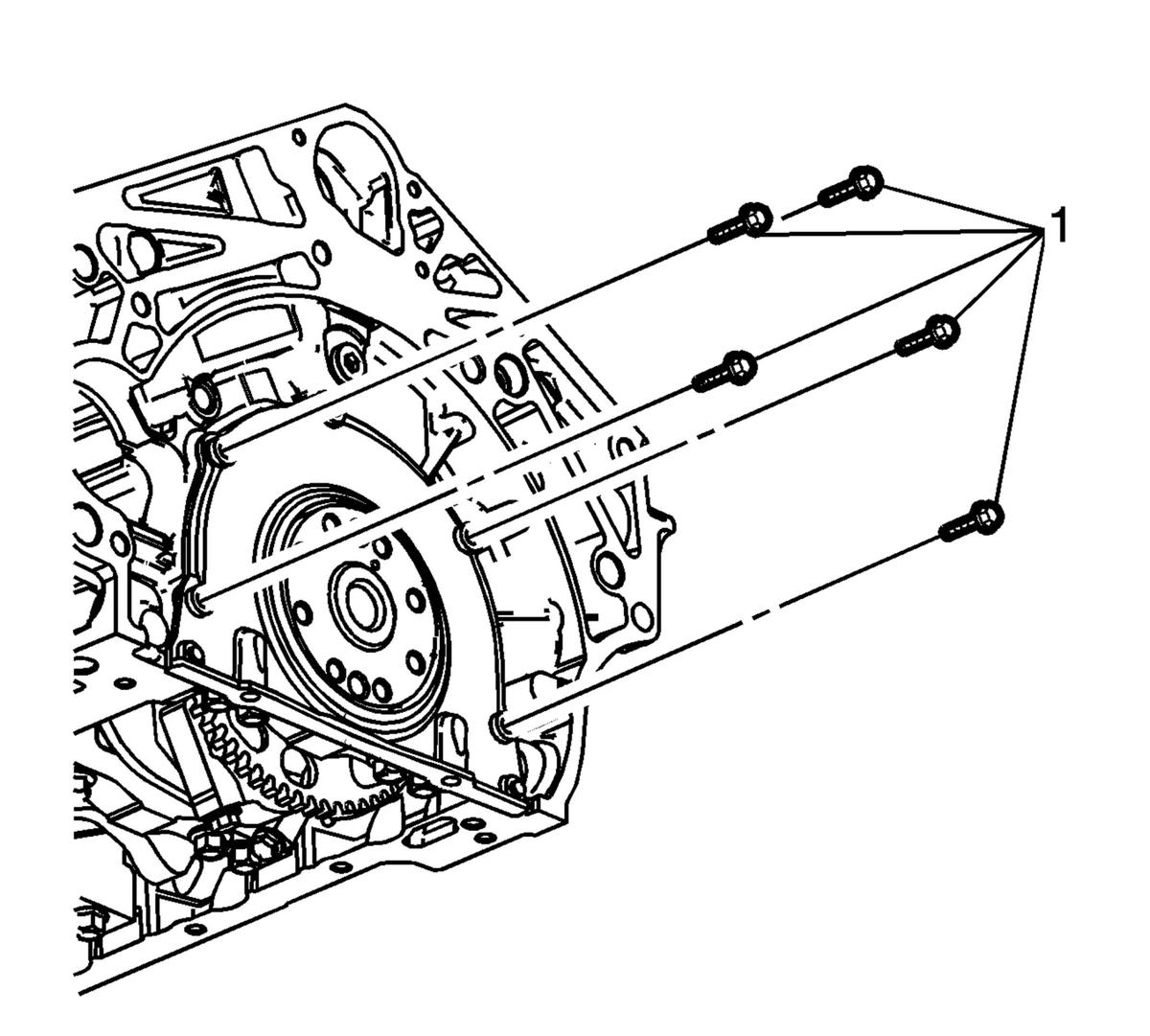

    4. Fig 1: Crankshaft Rear Oil Seal & Housing Bolts
    GM2658930Courtesy of GENERAL MOTORS COMPANY
  4. Remove the crankshaft rear oil seal and housing bolts (1).

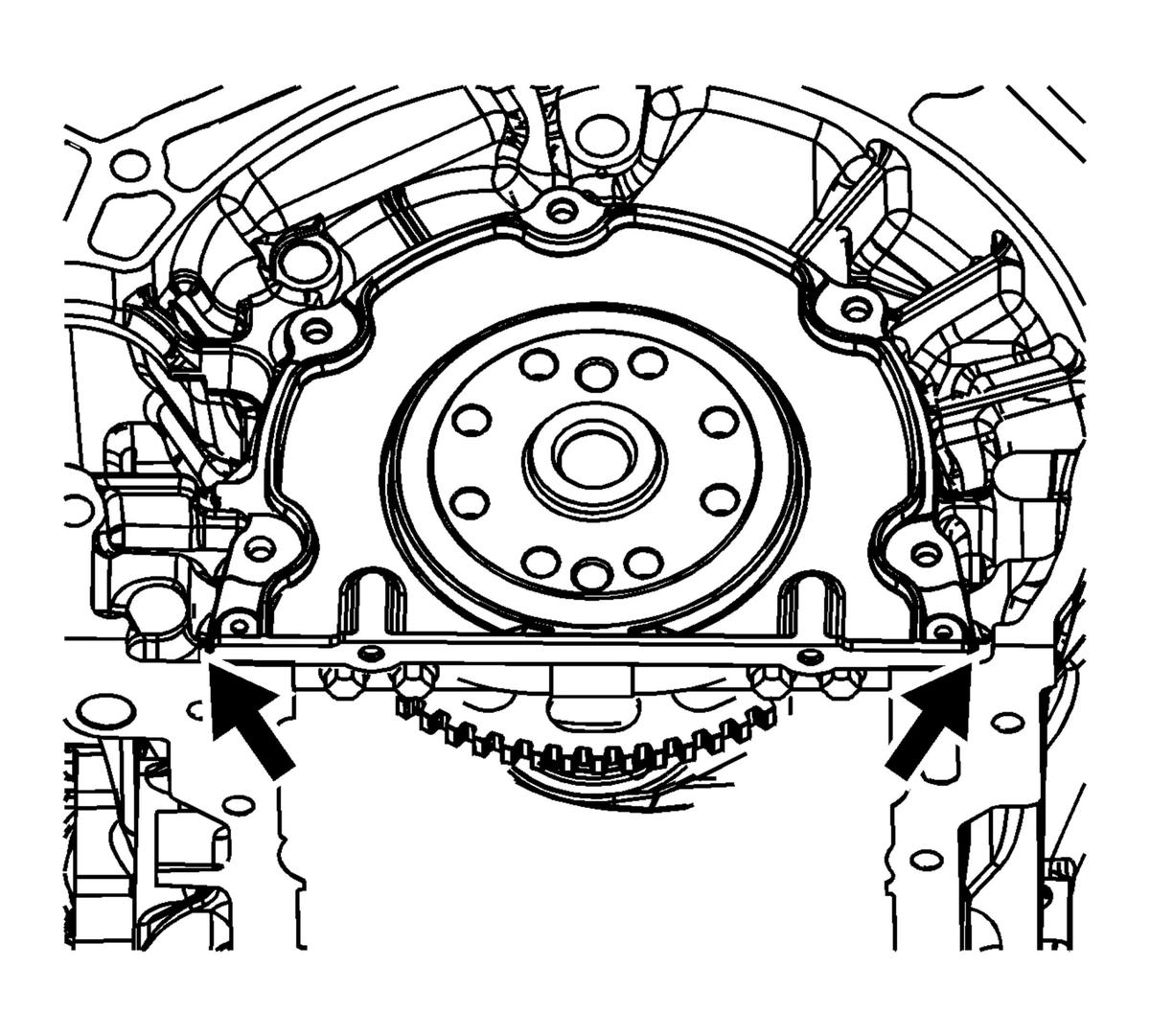

    5. Fig 2: Crankshaft Rear Oil Seal Housing Pry Points
    GM2658949Courtesy of GENERAL MOTORS COMPANY
  5. Use the pry points located at the edge of the crankshaft rear oil seal housing to separate the RTV sealant.

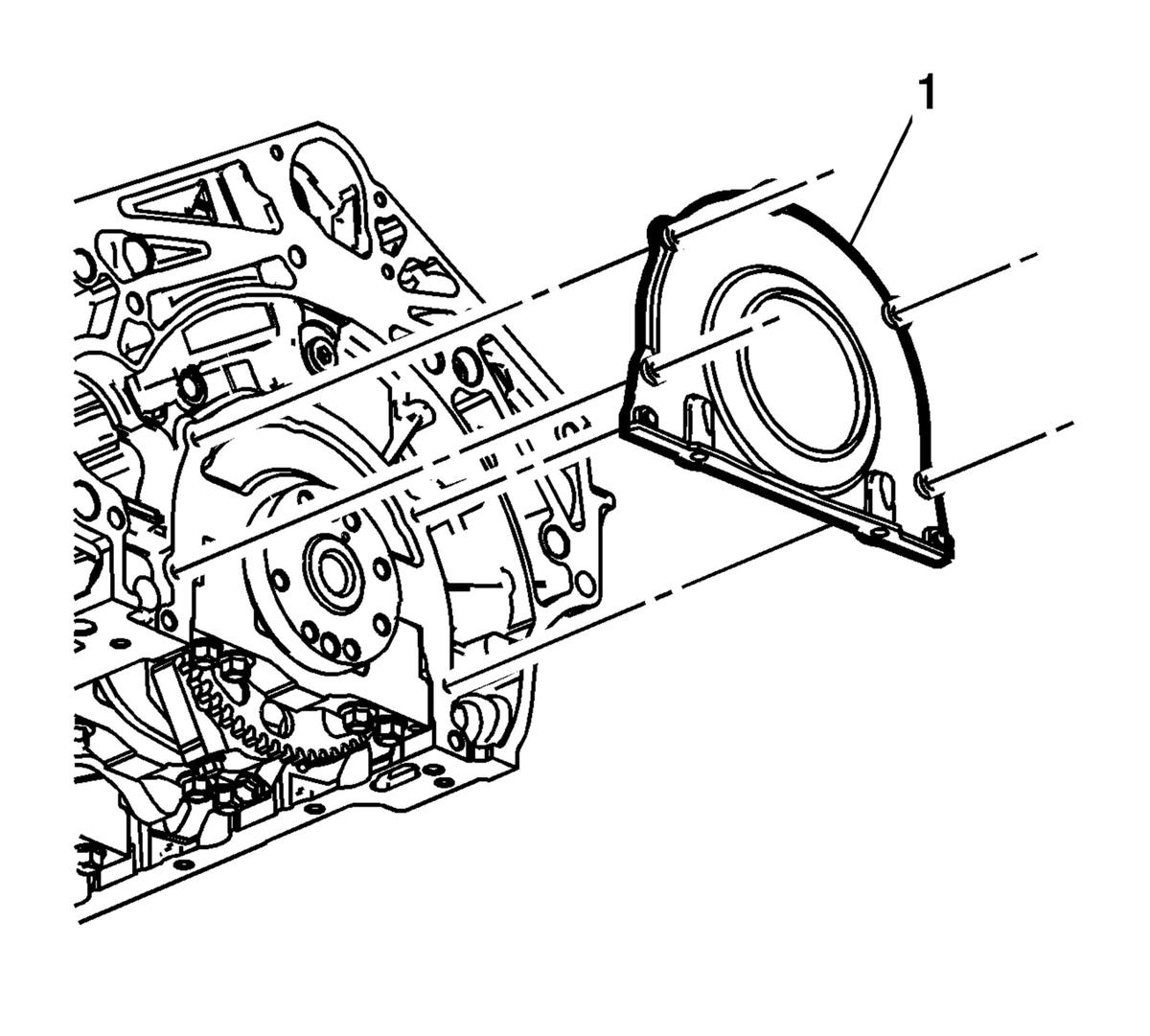

    6. Fig 3: Crankshaft Rear Oil Seal Housing
    GM2658951Courtesy of GENERAL MOTORS COMPANY
  6. Remove and discard the crankshaft rear oil seal and housing (1). Refer to Crankshaft Rear Oil Seal and Housing Removal .
