Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the starter motor. Refer to Starter Replacement .

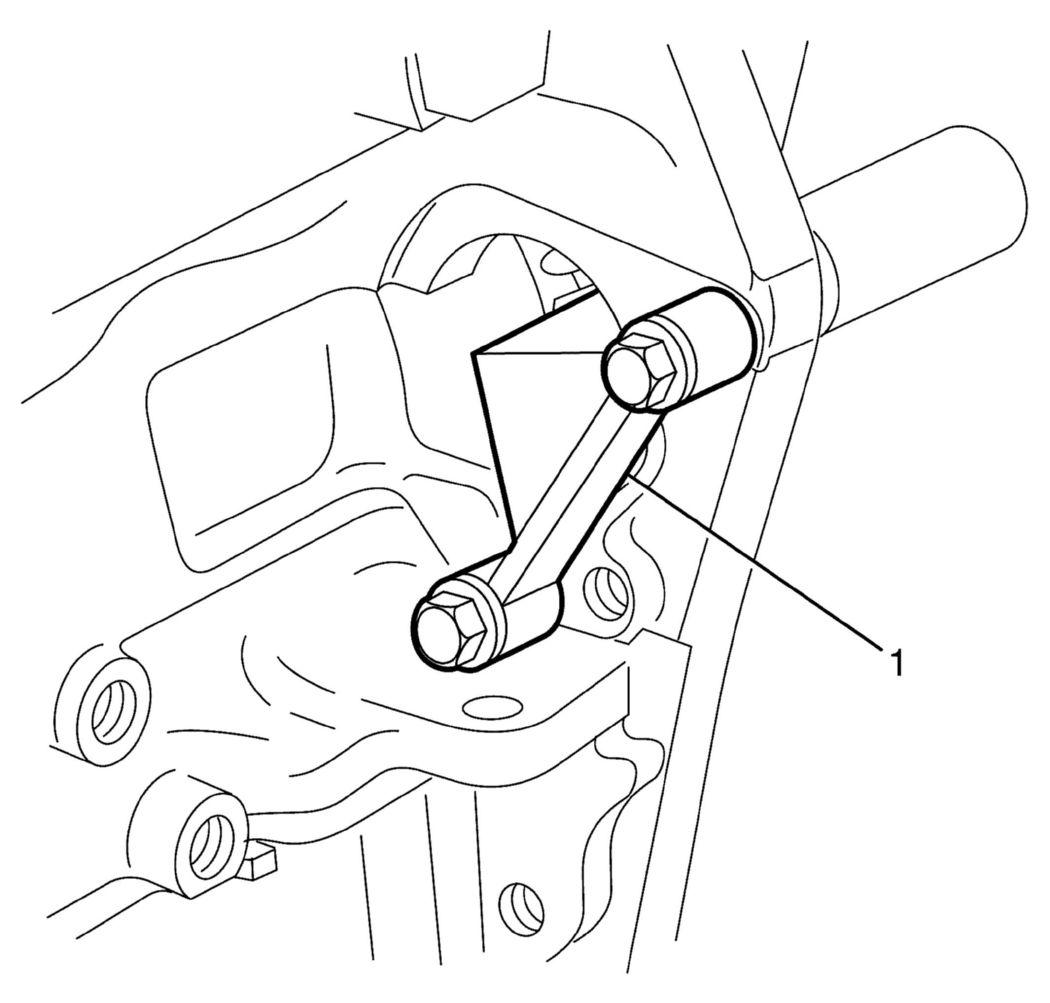

    4. Fig 1: Flywheel Holding Tool
    GM1958097Courtesy of GENERAL MOTORS COMPANY
  4. Install the EN 46106  tool (1) through the starter mounting hole.
  5. Lower the vehicle.

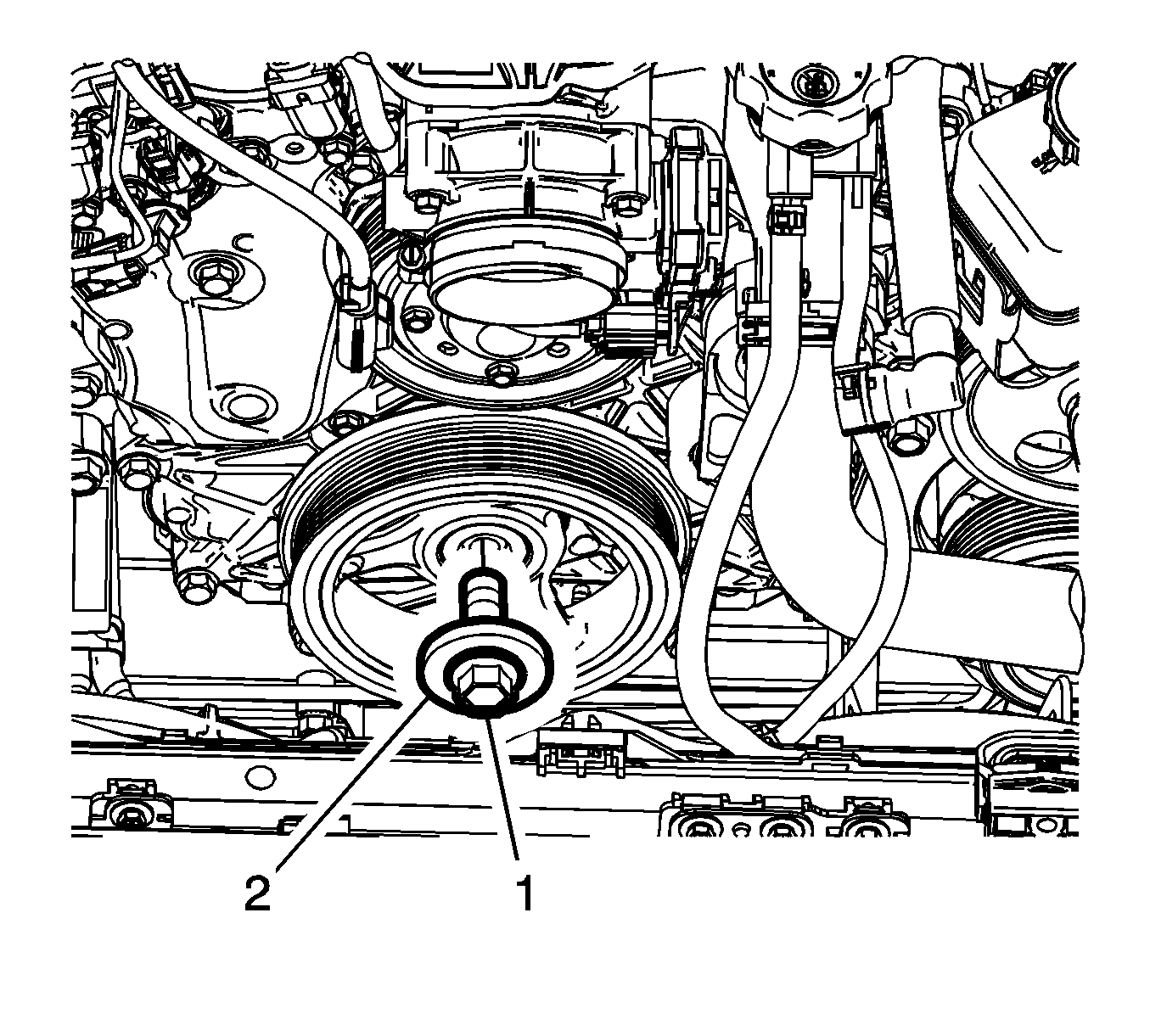

    6. Fig 2: Crankshaft Retaining Bolt & Washer
    GM2659139Courtesy of GENERAL MOTORS COMPANY
  6. Remove and discard the crankshaft balancer to crankshaft retaining bolt (1) and washer (2).
    7. Fig 3: Crankshaft Balancer & Removal Tools
    GM2659150Courtesy of GENERAL MOTORS COMPANY
  7. Install the EN 38416-2 button (2) in the nose of the crankshaft.
  8. Install the EN 41816 remover (3) in order to remove the crankshaft balancer (1).
  9. Tighten the center bolt of the EN 41816 remover in order to pull the crankshaft balancer off of the crankshaft.
  10. Remove the EN 41816 remover from the crankshaft balancer.
