Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the CMP actuator solenoid valve seal for damage. Replace the CMP actuator solenoid valve seal if necessary. Refer Engine Front Cover Disassemble

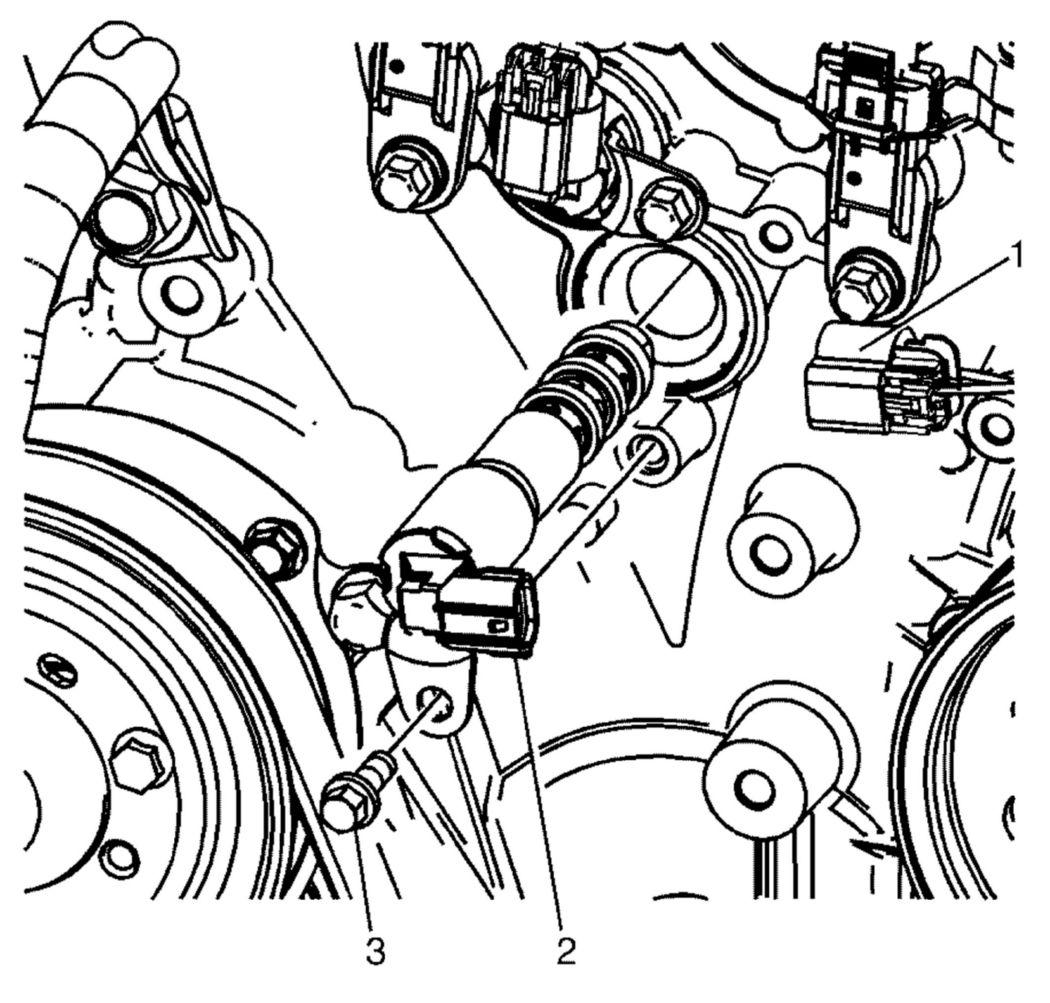

    2. Fig 1: CMP Actuator Solenoid Valve, Electrical Connector & Retaining Bolt
    GM2164208Courtesy of GENERAL MOTORS COMPANY
  2. Install the CMP actuator solenoid valve (2) to the engine.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the CMP actuator solenoid valve to engine front cover retaining bolt (3) and tighten to 9 N.m (80 lb in).
  4. Connect the CMP actuator solenoid valve electrical connector (1) to the CMP actuator solenoid valve (2).
  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
